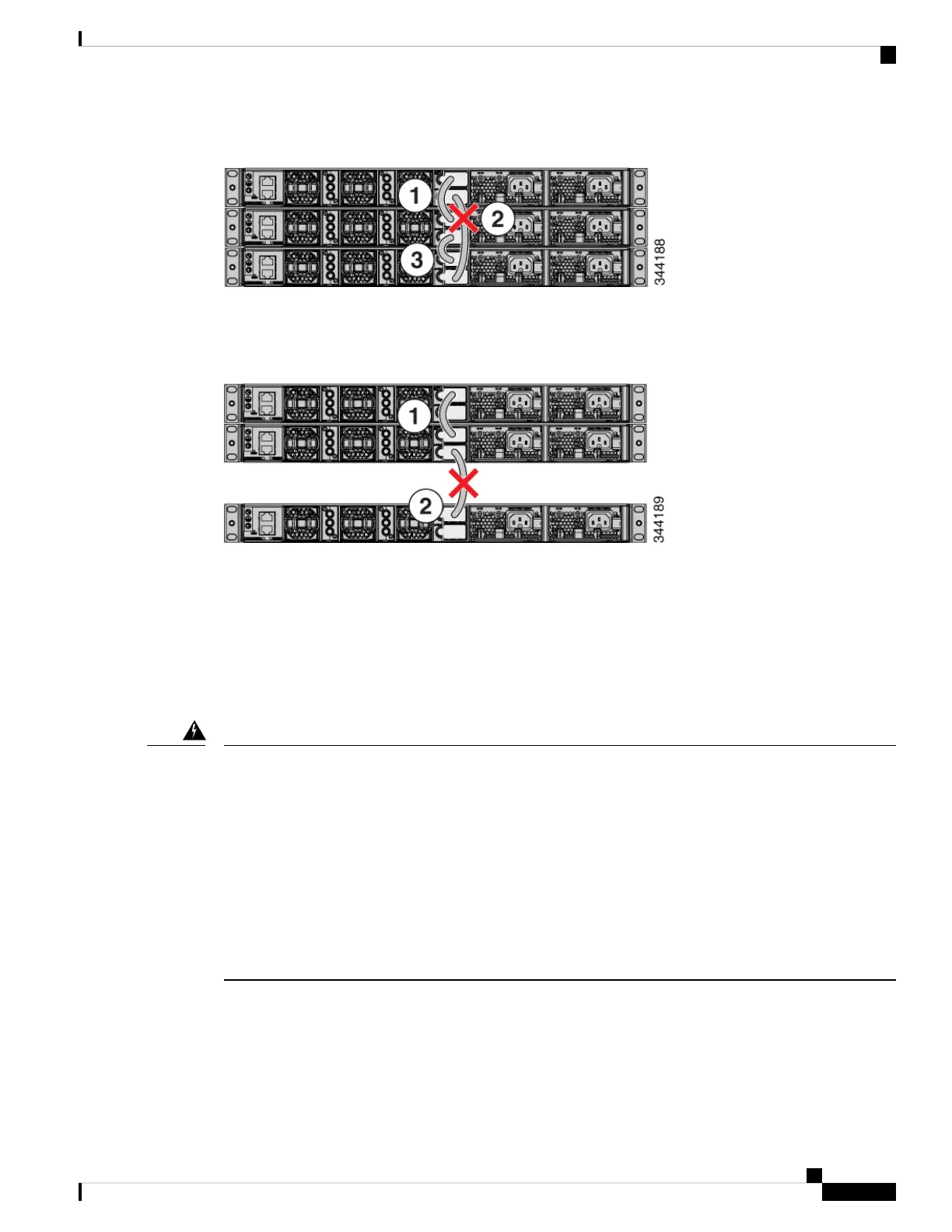

Figure 27: Example of a StackPower Stack with a Failover Condition
In this figure, StackPower port B on the center switch has failed and this stack partitions into two stacks. The
top two switches share power, and the bottom switch is now a separate stack.
Figure 28: Example of a Partitioned StackPower Stack with a Failover Condition
Installing the Switch
Rack-Mounting
Installation in racks other than 19-inch racks requires a bracket kit not included with the switch.
To prevent bodily injury when mounting or servicing this unit in a rack, you must take special precautions to
ensure that the system remains stable. The following guidelines are provided to ensure your safety:
• This unit should be mounted at the bottom of the rack if it is the only unit in the rack.
• When mounting this unit in a partially filled rack, load the rack from the bottom to the top with the
heaviest component at the bottom of the rack.
• If the rack is provided with stabilizing devices, install the stabilizers before mounting or servicing the
unit in the rack.
Statement 1006
Warning
Catalyst 3850 Switch Hardware Installation Guide
43OL-26779-05
Switch Installation
Installing the Switch
