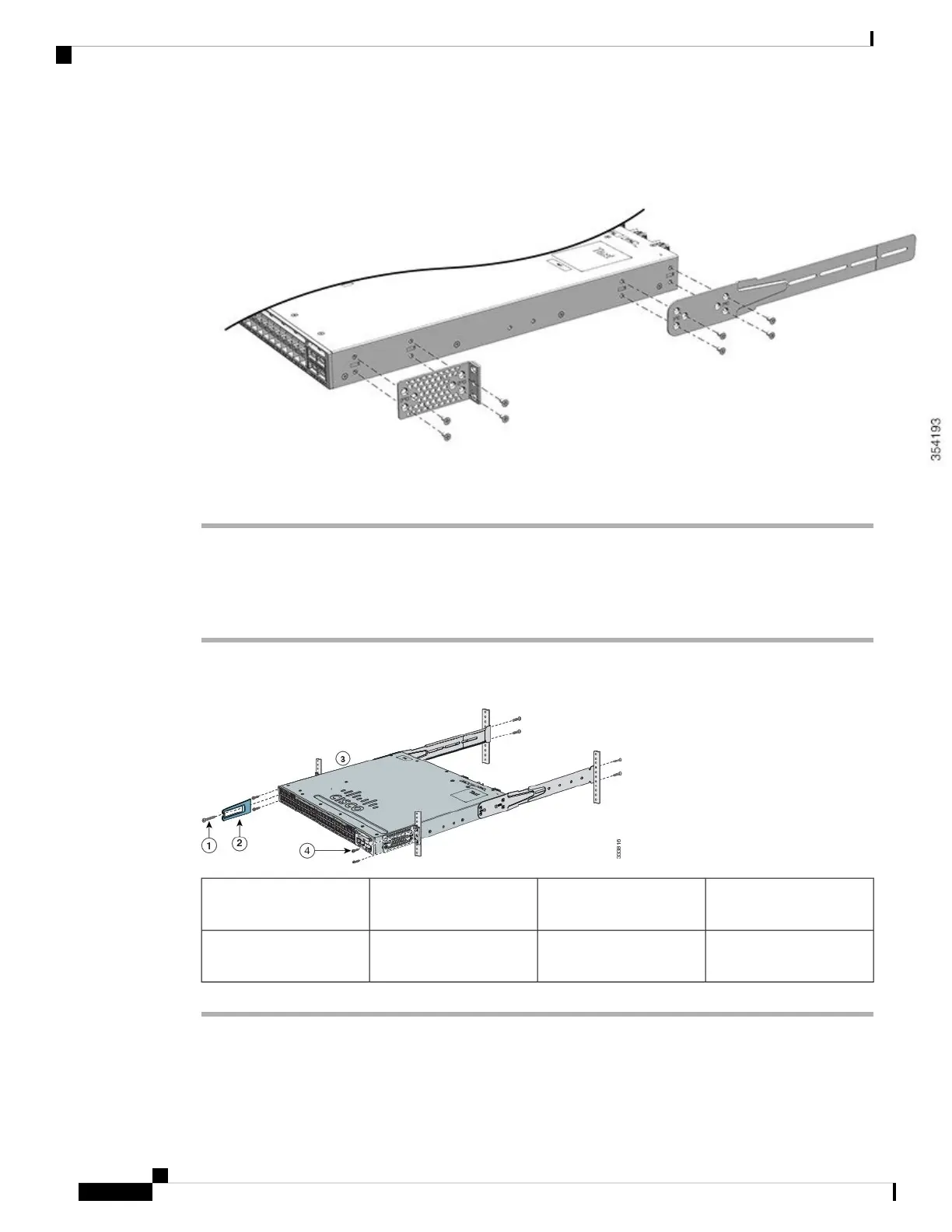

Figure 31: Attaching Brackets for Catalyst WS-C3850-48XS Switches
Mounting the Switch a Rack
Procedure
Step 1 Use the four supplied Phillips machine screws to attach the brackets to the rack.
Step 2 Use the black Phillips machine screw to attach the cable guide to the left or right bracket.
Front-mounting position4Phillips machine screw,
black
1
Number-12 or number-10
Phillips machine screws
5Cable guide2
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-0546
Switch Installation
Mounting the Switch a Rack
