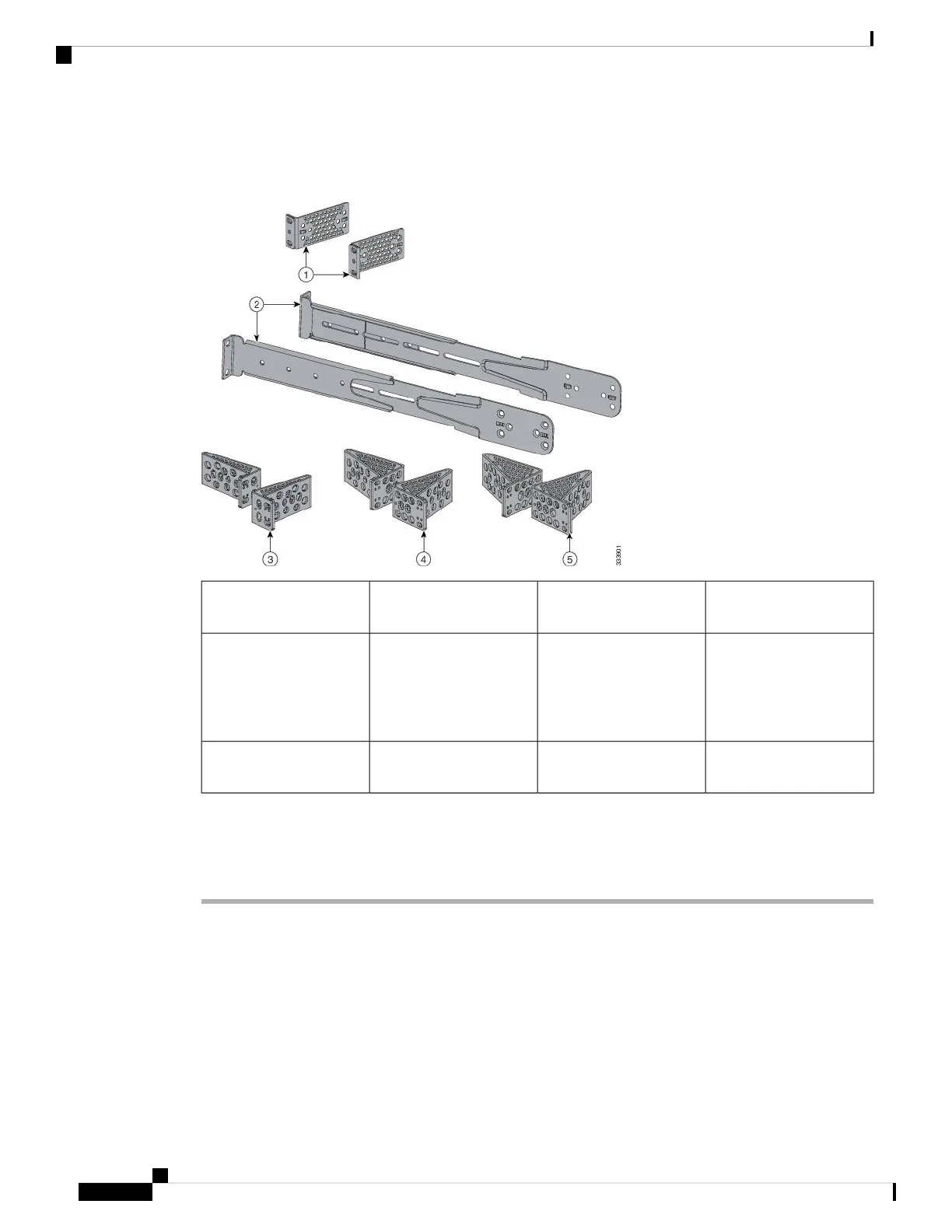

Figure 29: Rack-Mounting Brackets
This figure shows the standard 19-inch brackets and other optional mounting brackets. You can order the
optional brackets from your Cisco sales representative.
23-inch brackets
(C3850-RACK-KIT=)
419-inch brackets
(C3850-RACK-KIT=)
1
24-inch brackets
(C3850-RACK-KIT=)
5Extension rails and
brackets for four-point
mounting, includes
19-inch brackets.
(C3850-4PT-KIT=)
2
ETSI brackets
(C3850-RACK-KIT=)
3
Attaching the Rack-Mount Brackets
Procedure
Use four Phillips flat-head screws to attach the long side of the bracket to each side of the switch for the front-
or rear-mounting positions.
Catalyst 3850 Switch Hardware Installation Guide
OL-26779-0544
Switch Installation
Attaching the Rack-Mount Brackets
