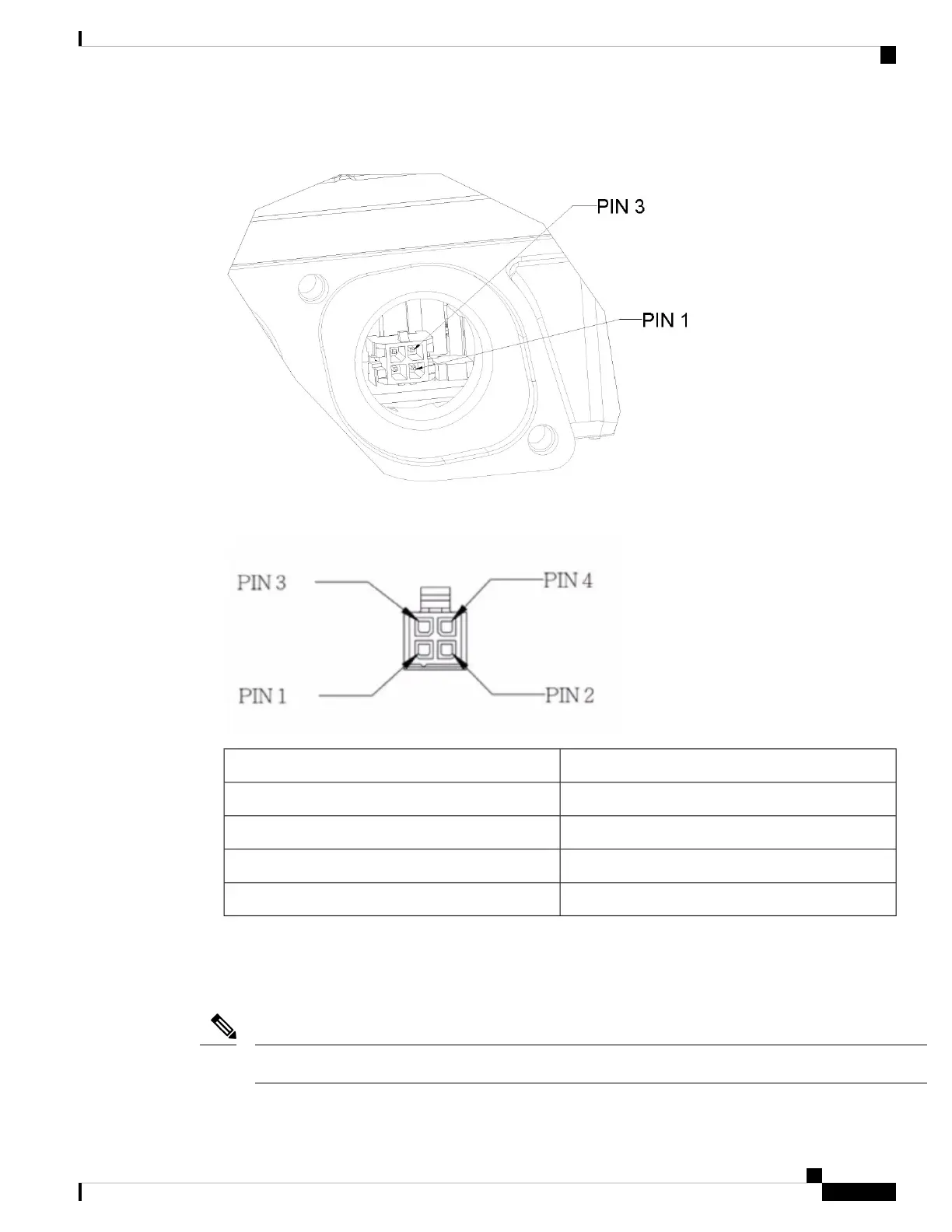

Figure 4: Mating Connector: Molex Micro-Fit 43025-0400
Figure 5: Mating Connector Front View
AssignmentMolex Micro-Fit Pin
Black ( - Negative Terminal)Pin 1
Not assignedPin 2
White (+ Positive Terminal)Pin 3
Not assignedPin 4
M12-RJ45 Adapter
M12-RJ45 adapter (Cisco PID: IW-ACC-M12ETH=) can be used to support M12 X-coded connector.
M12 X-code port by using M12-RJ45 adapter can support up to 2.5G rate.
Note
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
5
About Cisco Catalyst IW9165D Heavy Duty Access Point
M12-RJ45 Adapter
