Cisco Catalyst IW9165D User Manual

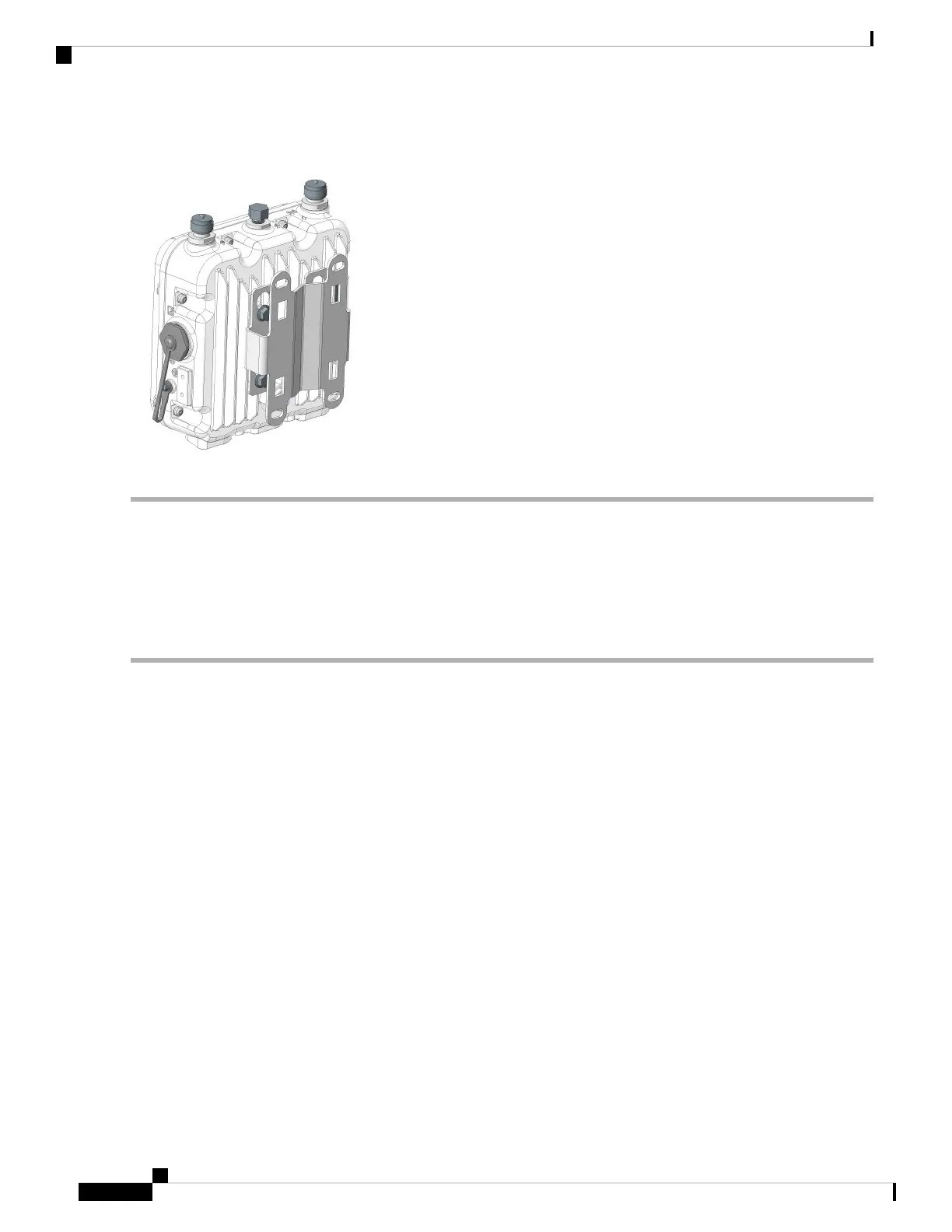

Figure 16: Mounting Bracket Attached to the AP
Pole Mounting the Access Point with the Tiltable Mounting Kit
The optional tiltable mounting kit can be used to install the access point on a pole. The tiltable bracket can
be rotated 180° for further downward rotation. It also provides additional holes for 45° rotated installation.
To mount the access point on a pole or a wall with the tiltable mount bracket, follow these instructions:
Step 1 Attach the mounting bracket to the access point with four M6 screws. Torque the screws to 30-40 in-lbs.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
22
Installation Overview
Pole Mounting the Access Point with the Tiltable Mounting Kit
