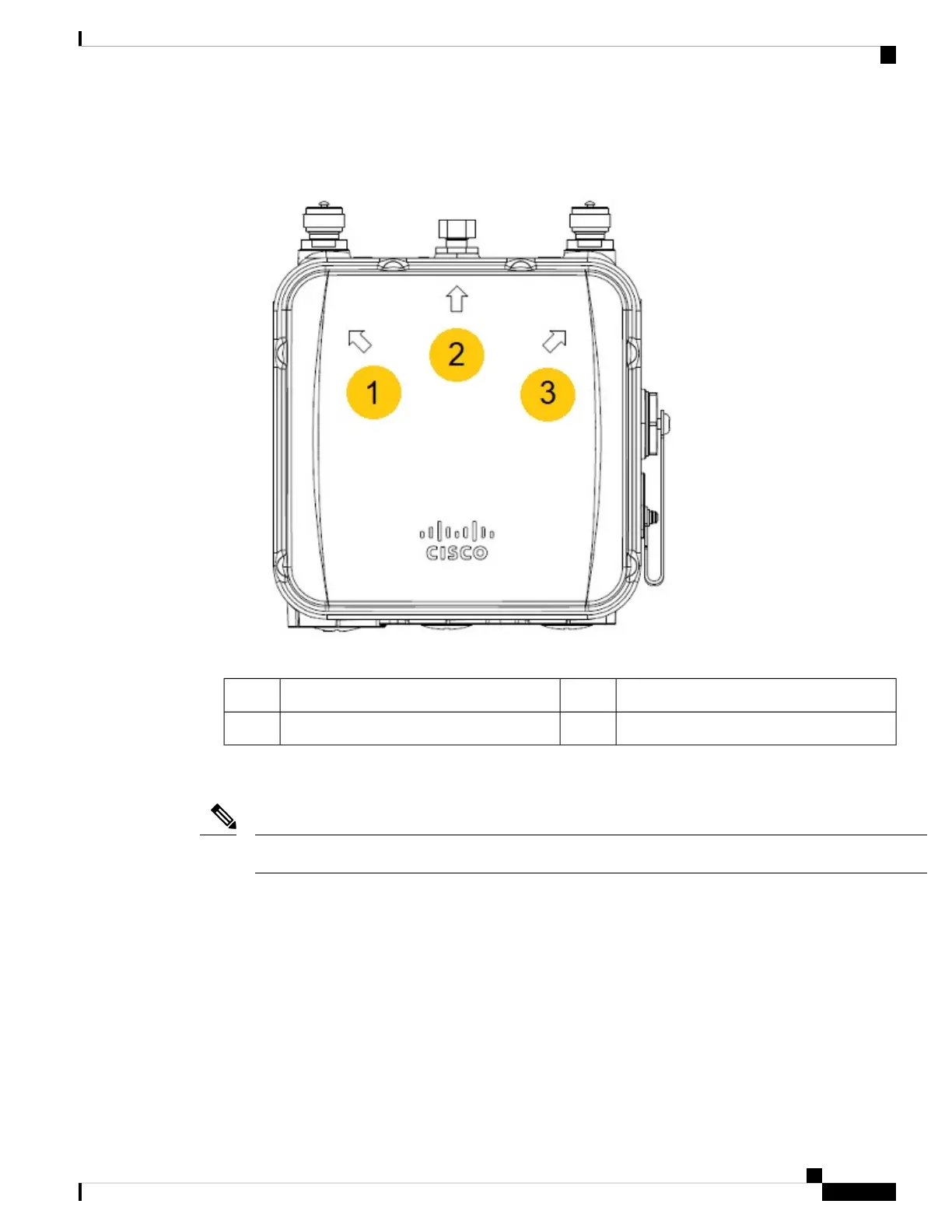

Figure 12: Arrows on the Front of IW9165D
Middle arrow: straight installation2Left arrow: -45° tilt1
Righ arrow: +45° tilt3
You must also ensure the access point is mounted in such a way as to ensure that all antenna ports and the
console port are accessible for future use.
Omnidirectional antennas are vertically polarized and should be mounted vertically.
Note
Wall Mounting the Access Point with the Fixed Mounting Kit
The optional fixed mounting kit contains a mounting bracket for wall or pole mounting. You can use the
mounting bracket as a template to mark the positions of the mounting holes for your installation. You then
install the mounting plate, and attach the access point when you are ready.
The following figure shows the mounting bracket dimensions.
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
19
Installation Overview
Wall Mounting the Access Point with the Fixed Mounting Kit
