Cisco Catalyst IW9165D User Manual

Supported GNSS Antenna
The following table shows the external GNSS antennas supported by IW9165D.
Table 4: Supported GNSS Antenna
DescriptionConnectorFrequencies SupportedPID
Outdoor Active GNSS Antenna
with 15-ft. integrated cable
TNC male1560 - 1608 MHzANT-GNSS-OUT-TNC=
IW9165D (Internal Antenna) Radiation Patterns
The following illustrations show the IW9165D model with internal antenna radiation patterns:
Table 5: Cisco Catalyst IW9165D Radiation Patterns

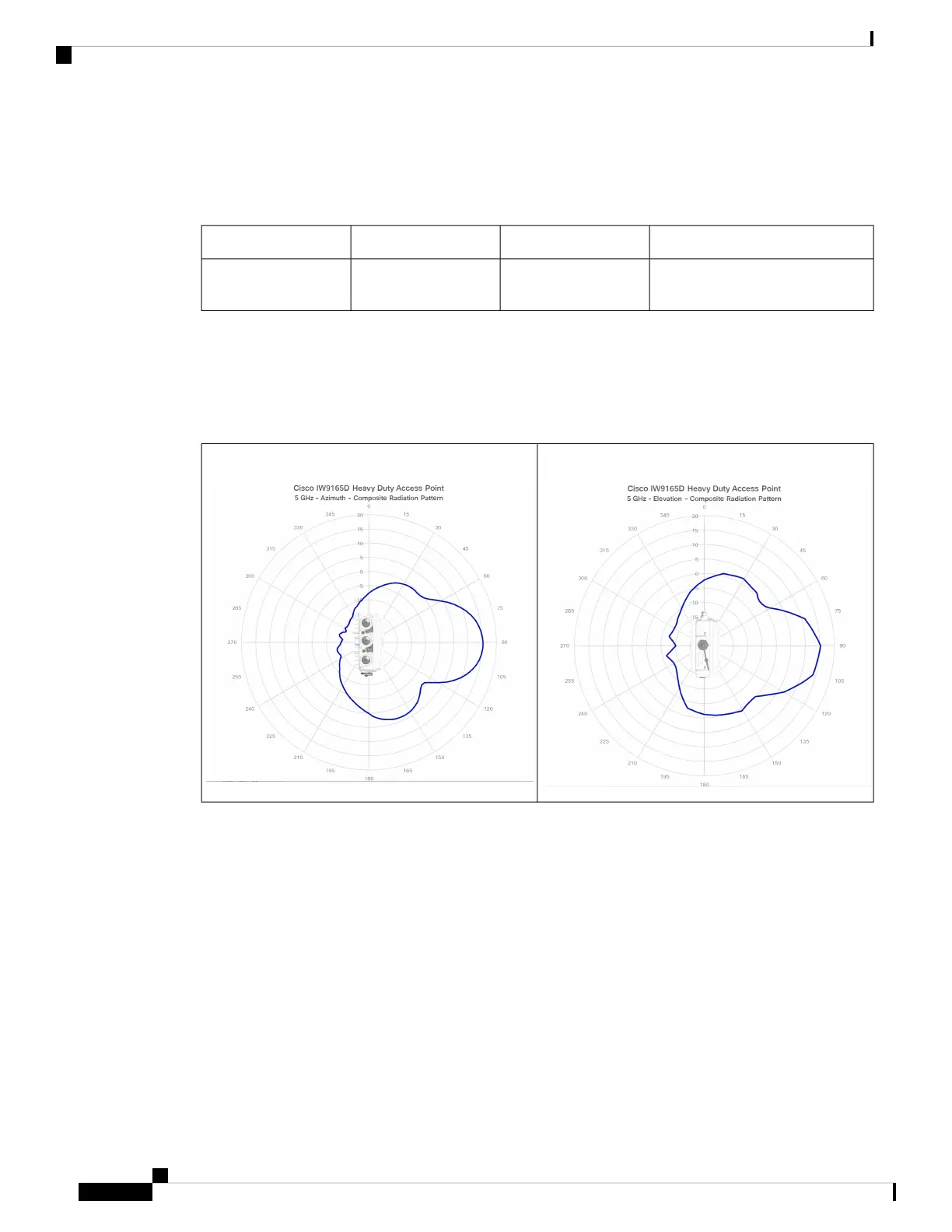

Figure 9: IW9165D - Composite Radiation Pattern (5-GHz Elevation)Figure 8: IW9165D - Composite Radiation Pattern (5-GHz Azimuth)
Cisco Catalyst IW9165D Heavy Duty Access Point Hardware Installation Guide
10
About Cisco Catalyst IW9165D Heavy Duty Access Point
IW9165D (Internal Antenna) Radiation Patterns

Cisco Catalyst IW9165D Specifications
