SGE2010/SGE2010P Administration Guide 4
Sample Network Configuration
Connecting Devices to the SGE2010/SGE2010P
3
Connecting Devices to the SGE2010/
SGE2010P
This chapter explains how to physically connect your network devices to the switch.
• ”Sample Network Configuration,” on page 4
• ”Maximum Cabling Distances,” on page 4
• ”Before You Install the Switch... ,” on page 5
• ”Placement Options,” on page 5
• ”Connecting the Cables,” on page 7
Sample Network Configuration

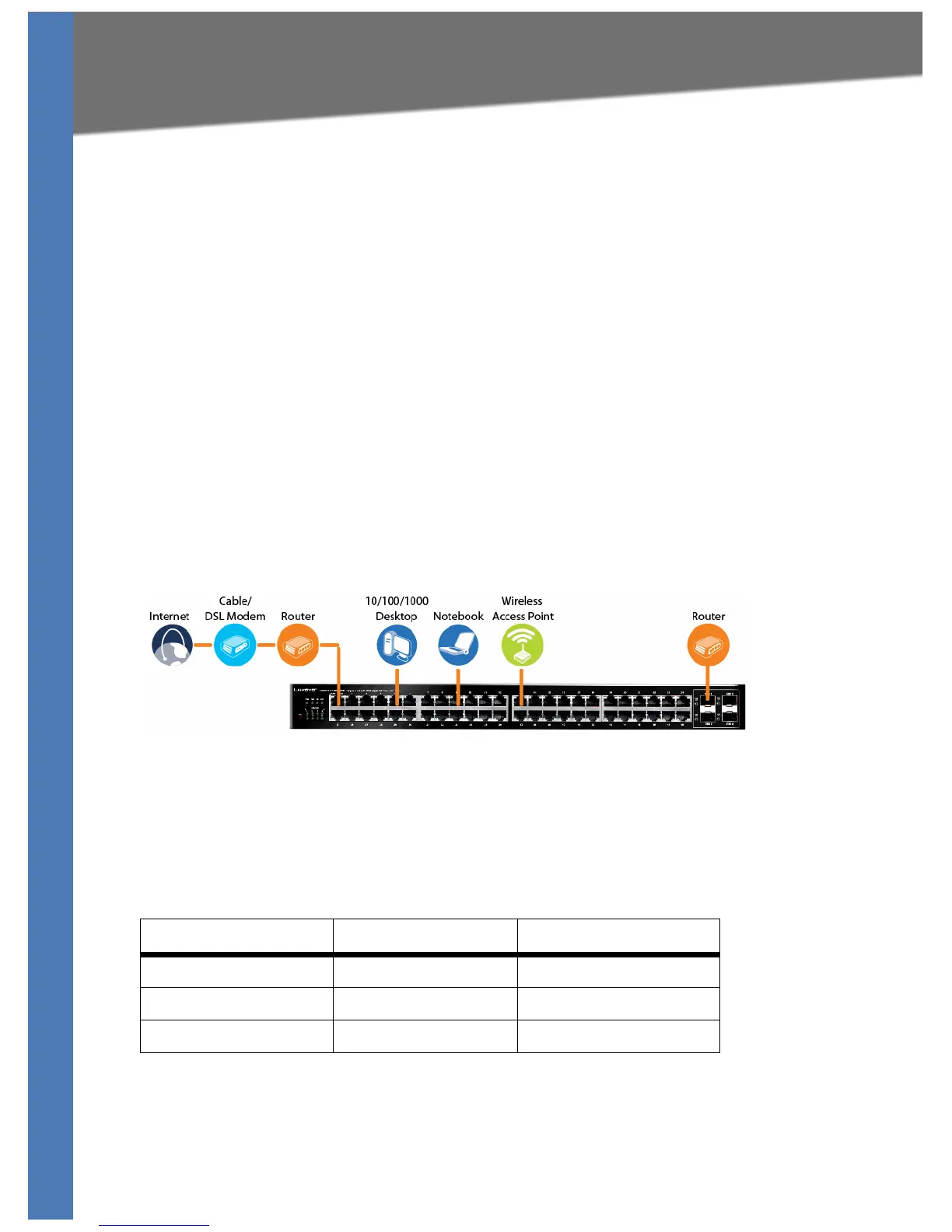

For an example of a possible network configuration, see the application diagrams shown
below.
Maximum Cabling Distances
When you connect your network devices, make sure you don’t exceed the maximum cabling
distances, which are listed in the following table:
*A hub refers to any type of 100Mbps hub, including regular hubs and stackable hubs. A
10M
bp
s hub connected to another 10Mbps hub can span up to 100 meters (328 feet).
From To Maximum Distance
Switch Switch or Hub* 100 meters (328 feet)
Hub Hub 5 meters (16.4 feet)
Switch or Hub Computer 100 meters (328 feet)
