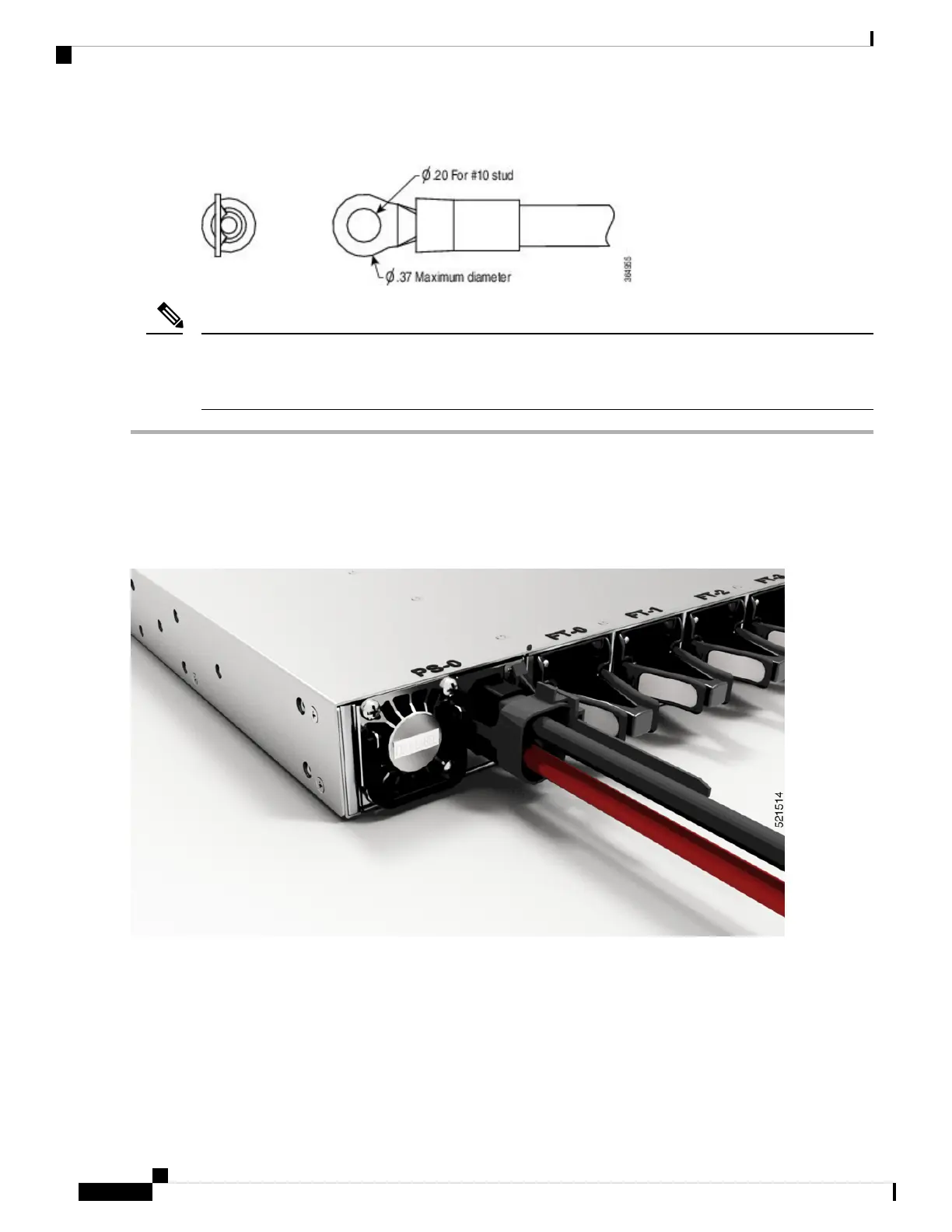

Figure 45: DC Input Power Cable Lug
To avoid hazardous conditions, all components in the area where DC input power is accessible must be
properly insulated. Therefore, before installing the DC cable lugs, be sure to insulate the lugs according to
the manufacturer's instructions.
Note
Step 1 Verify that the correct fuse panel is installed in the top mounting space.
Step 2 Ensure that the DC circuit is powered down (either breaker turned off or fuse pulled) and proper lockout tag out procedures
are followed. Use the cable supplied with the power supply. If you prefer to use your own cable, the cable size must be
6 AWG.
Figure 46: NCS-57B1 - Connecting DC Power
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
58
Install the Chassis
Connect DC Power to the Chassis
