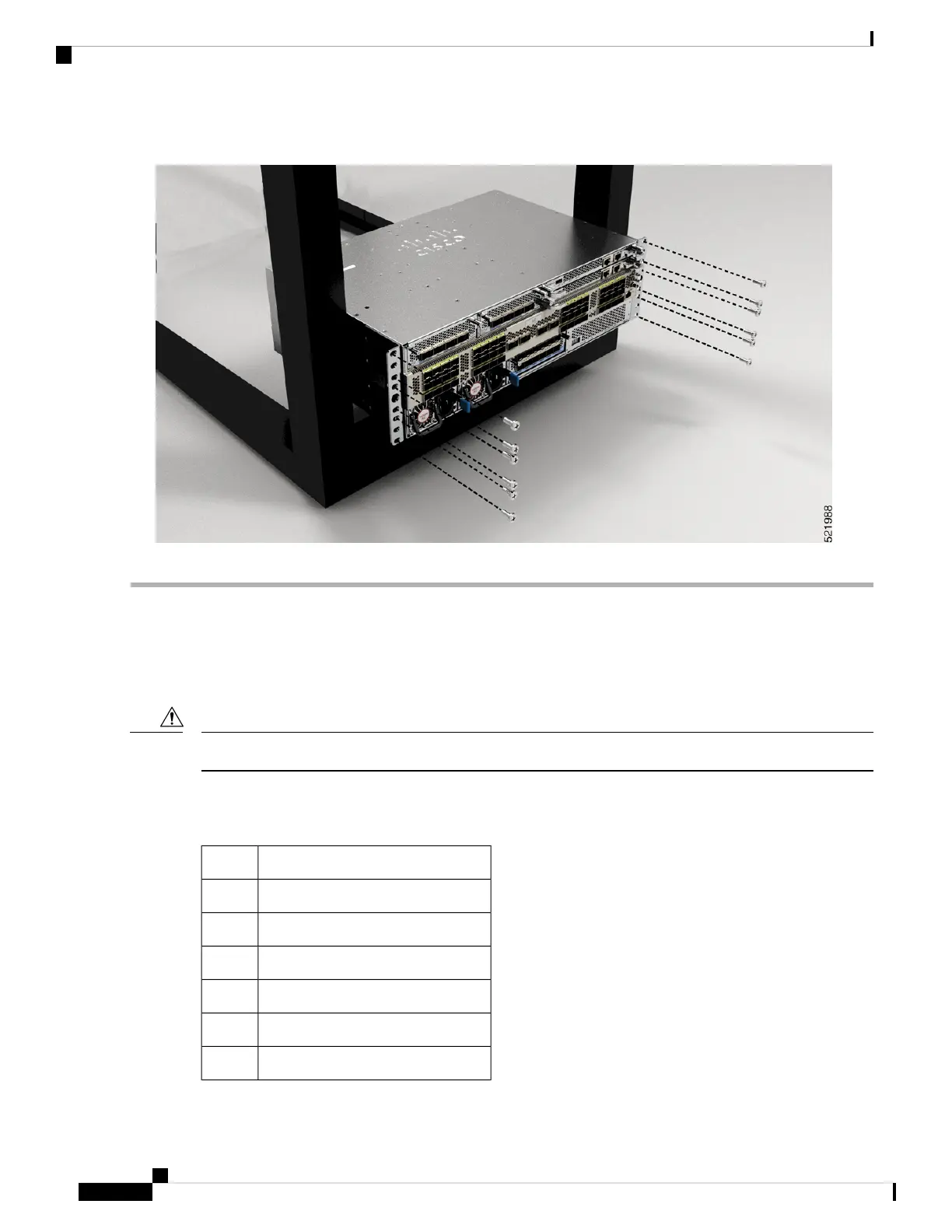

Figure 26: 2-Post Rack Mount
Rack-Mount the NCS-57B1 Chassis in a 4-Post Rack
This section describes how to use the rack-mount kit that is provided with the router to install the router in a
4-post rack.
If the rack is on wheels, ensure that the brakes are engaged or that the rack is otherwise stabilized.
Caution
The following table lists the items that are contained in the rack-mount kit.
Table 9: NCS-57B1-6D24-SYS and NCS-57B1-5DSE-SYS Router Rack-Mount Kit
Part DescriptionQuantity
Rack-mount brackets2
M4 x 6-mm Phillips flat-head screws18
M4 x 6-mm Phillips pan-head screws2
Rack-mount guides2
Rack-mount slider rails2
Grounding lug1
Hardware Installation Guide for Cisco NCS 5700 Series Fixed-Port Routers
38
Install the Chassis
Rack-Mount the NCS-57B1 Chassis in a 4-Post Rack
