Chapter 6 PIX 525
Installing a Memory Upgrade

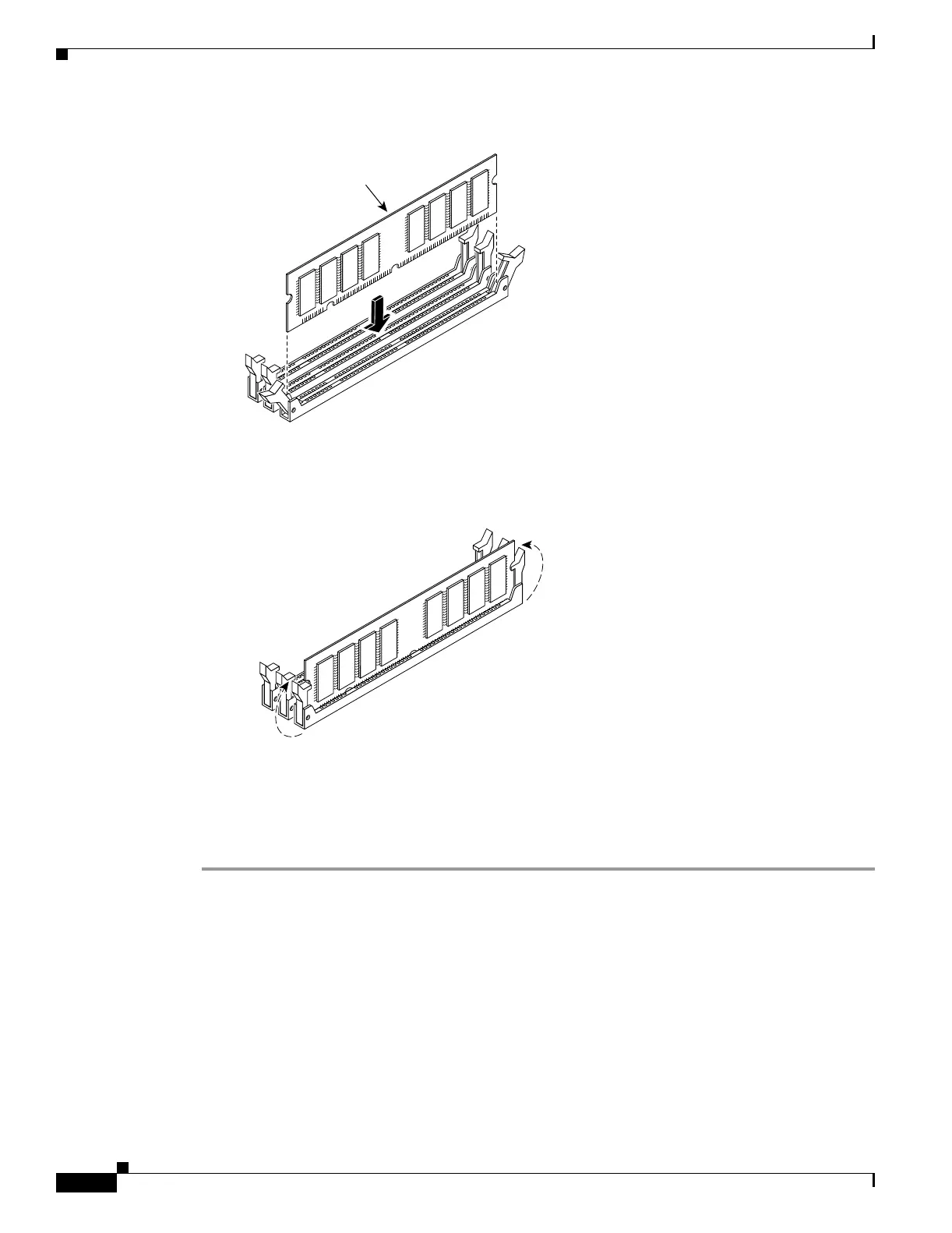

Figure 6-12 Inserting a DIMM Memory Strip in the PIX 525
Figure 6-13 Securing a DIMM Memory Strip in the PIX 525
When you finish inserting new RAM memory, reinstall the tray on the PIX 525. Reattach the screws. If
desired, rack mount the PIX security appliance and attach all cables and cords as discussed in previous
sections. After the PIX security appliance is installed, you can view the amount of RAM memory in the
system startup messages or with the show version command.
17997
DIMM
Bank 0
Bank 2
Bank 1
17998
Bank 0
Bank 2
Bank 1
