CHAPTER
5-1
Cisco PIX Security Appliance Hardware Installation Guide
78-15170-03
5
PIX 520
This chapter guides you through the installation of the PIX 520, and includes the following sections:
• PIX 520 Product Overview, page 5-1
• Installing the PIX 520, page 5-4
• PIX 520 Feature Licenses, page 5-6
• Installing Failover, page 5-7
• Installing LAN-Based Failover, page 5-8
• Removing and Replacing the PIX 520 Chassis Cover, page 5-10
• Replacing a Lithium Battery, page 5-12
• Installing a Memory Upgrade, page 5-12
• Installing a Circuit Board in the PIX 520, page 5-15
• Installing the PIX 520 DC Model, page 5-21
Note The PIX 520 is not supported in software Version 7.0(1).
PIX 520 Product Overview
This section describes the PIX 520 front and rear panels and the panel LEDs.

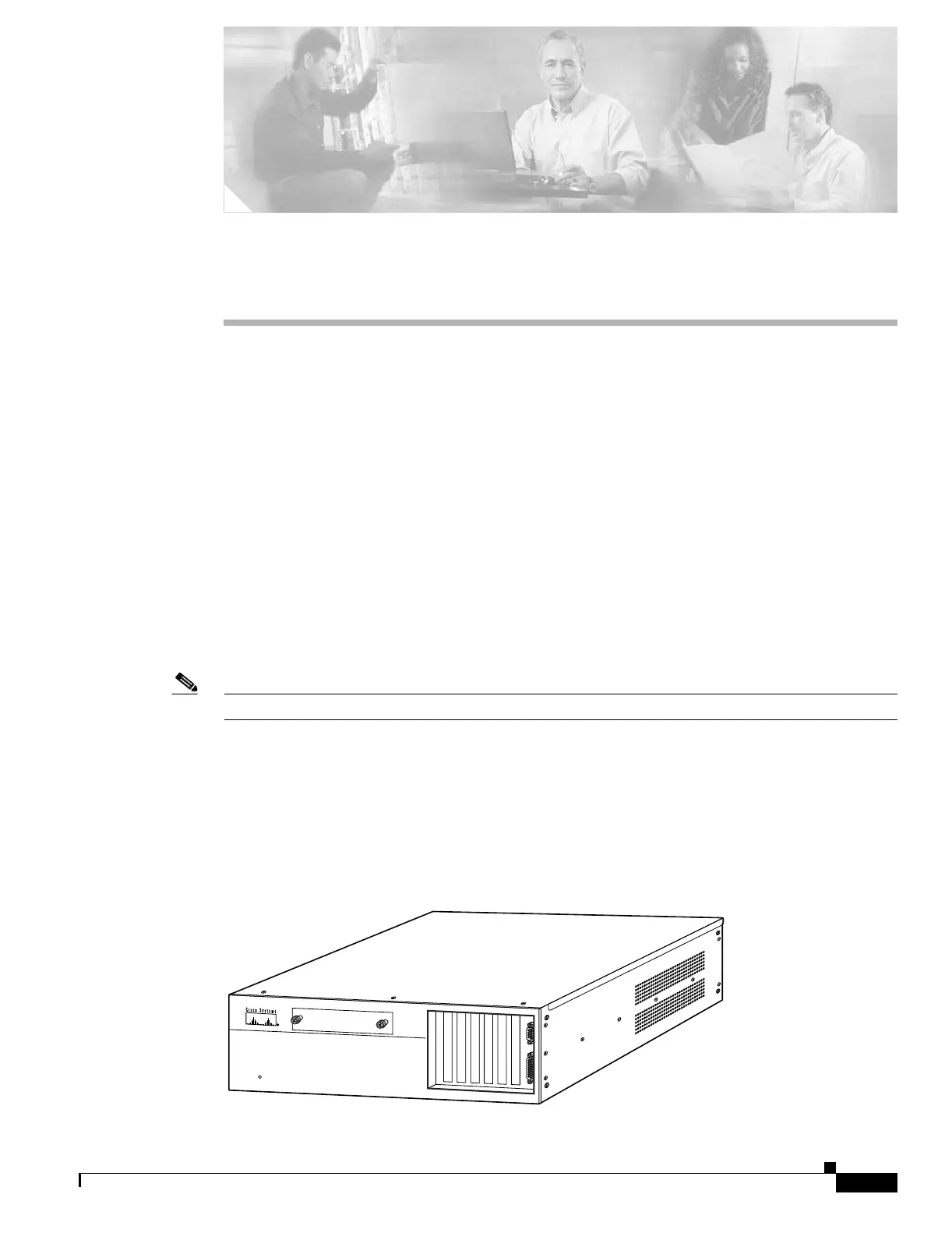

Figure 5-1 shows the front view of the PIX 520.
Figure 5-1 PIX 520 Front Panel
PIX Firewall
S
E
R
IE
S
R
ES
ET
67852
