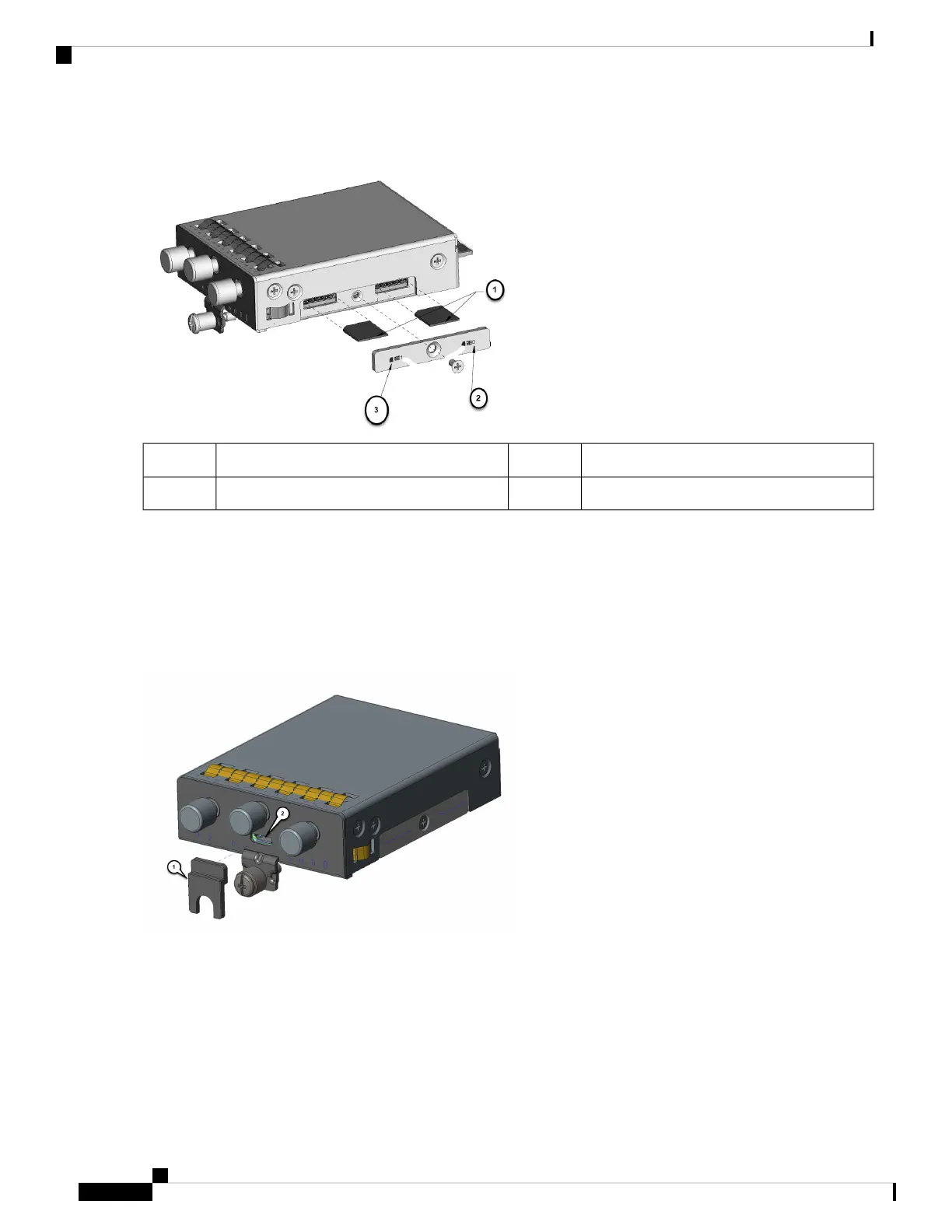

Figure 29: SIM Installation
SIM 0 (towards the device)2Micro SIMs1
SIM 1 (away from device)3
Step 5 Push in each SIM until it clicks into place. When the SIMs are installed, re-attach the access plate previously removed
with a #1 Phillips screwdriver. Torque to 2.8 to 3.8 in-lbs.
Make sure that the cover is properly aligned with the screw hole.
Note
Step 6 If your Pluggable Module has a USB port, make sure that the USB cover is properly installed. Place the USB cover (1)
with the plug indentation against the USB port (2). The half circle of the USB cover fits behind the latch lock screw,
as shown in the following figure.
Step 7 Tighten the latch lock screw to a torque of 2.8 to 3.8 in-lbs. The following figure shows a completed USB cover
installation.
Cisco Catalyst IR8340 Rugged Series Router Hardware Installation Guide
48
Installing and Upgrading Modules
Installing Pluggable Modules
