Getting Started
Connecting the Equipment
Cisco SPA100Series Administration Guide 13
1
Connecting the Equipment
NOTE For wall-mounting instructions, see Mounting the ATA, page 18.

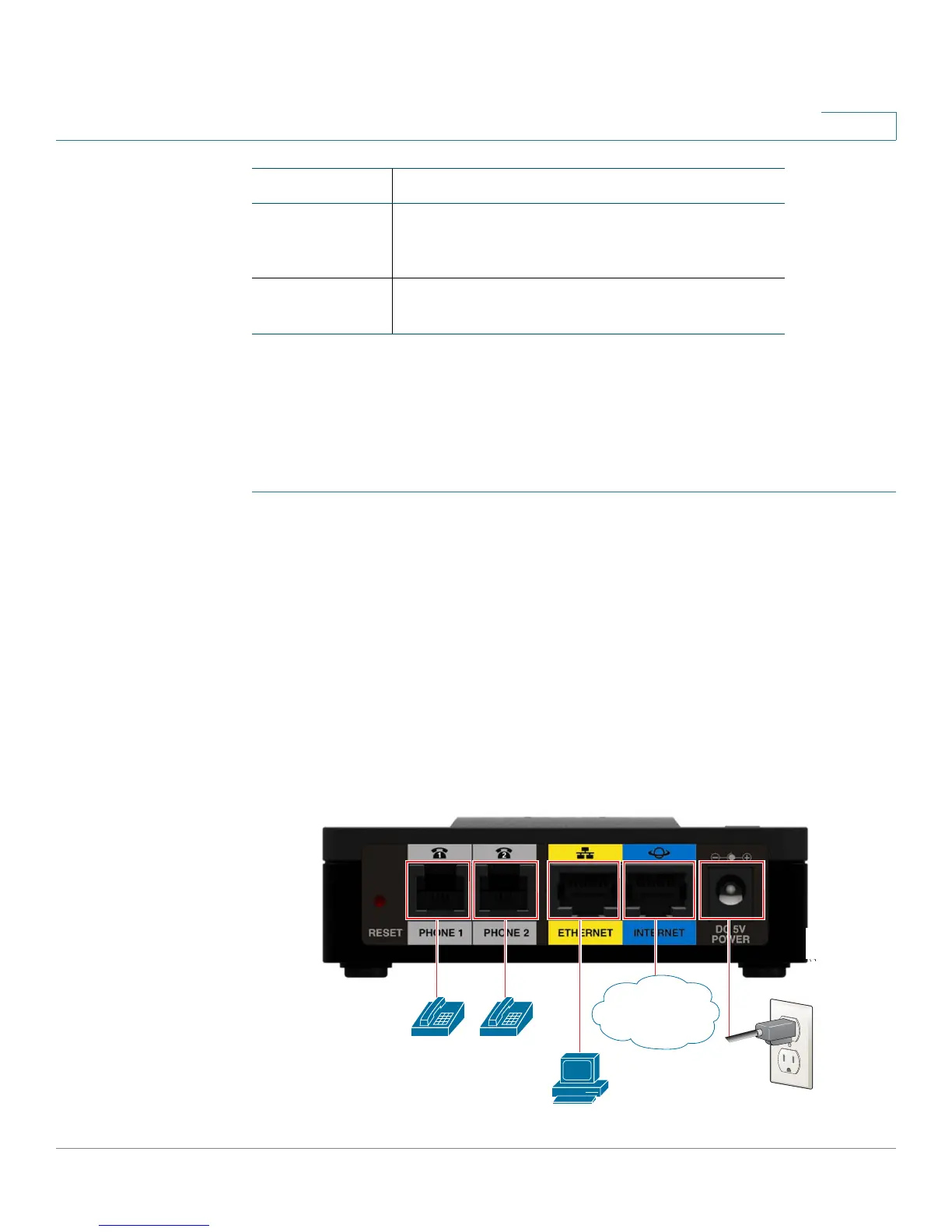

STEP 1 Connect one end of the provided Ethernet cable to the Internet (Blue) port.
Connect the other end directly to your broadband network device.
STEP 2 Connect one end of a phone cable to the Phone 1 (Gray) port. Connect the other
end to your analog phone or fax machine.
STEP 3 Connect one end of another phone cable to another analog phone or fax machine.
Connect the other end to the Phone 2 (Gray) port.
STEP 4 SPA122 Only: Optionally, connect one end of an Ethernet network cable to the
ETHERNET (Yellow) port of the ATA. Connect the other end to a device on your
network, such as a computer.
STEP 5 Connect the provided power adapter to the Power port.
Internet (Blue)
Connect to a broadband network device (DSL or
cable modem) or a network router, using an Ethernet
cable.
Power
Connect to a power source, using the provided
power adapter.
Feature Description
