Cisco UCS B200 M3 Blade Server
36
SUPPLEMENTAL MATERIAL
SUPPLEMENTAL MATERIAL
System Board
A top view of the UCS B200 M3 system board is shown in Figure 5.

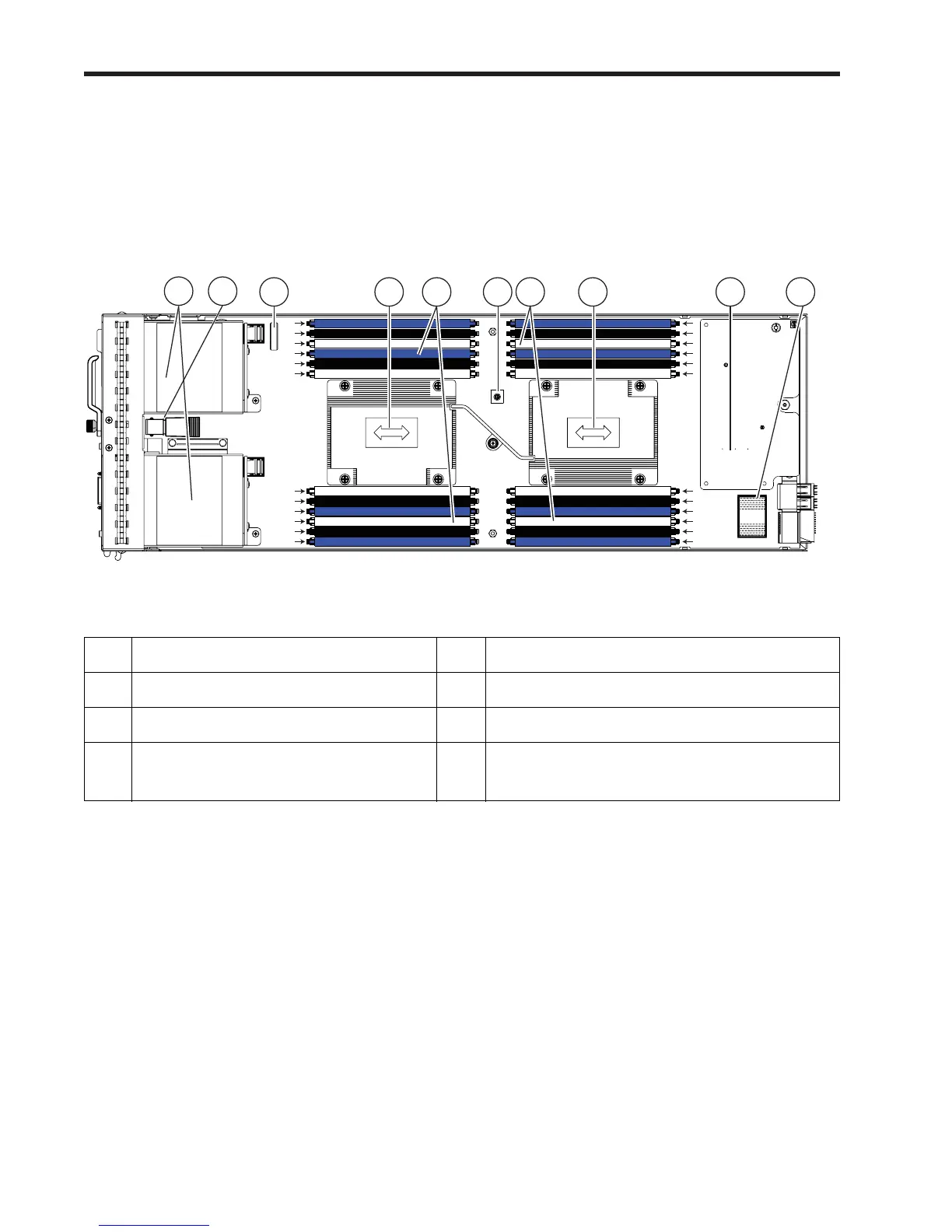

Figure 5 UCS B200 M3 System Board
1 Drive bays 5 DIMM slots
2
Internal USB connector
1
Notes...
1. A USB device installed in this connector must have sufficient clearance to easily slide in and out. The Cisco USB
device clearance is 0.950 inches (24.1 mm), which is a sufficient amount of clearance.
6 Diagnostic button
3 Battery 7 VIC 1240 adapter (shown installed)
4 CPU and heat sink 8 Mezzanine adapter slot
(mezzanine adapter not shown installed)
CPU 1
CPU 2
C0
C1
C2
D0
D1
D2
B2
B1
B0
A2
A1
A0
E0E0
E1E1
E2E2
F0F0
F1F1
F2F2
E0
E1
E2
F0
F1
F2
H2
H1
H0
G2
G1
G0
1
2
3
4 4
7 8
5 6 5
331367

Cisco UCS B200 M3 Specifications

General

System bus rate	8 GT/s
Processor family	Intel
Processor socket	LGA 2011 (Socket R)
Intel Xeon series	E5-2600
Motherboard chipset	Intel C600
Compatible processor series	Intel® Xeon®
Number of processors supported	2
ECC	Yes
Memory form factor	240-pin DIMM
Number of DIMM slots	24
Supported memory types	DDR3-SDRAM
Maximum internal memory	768 GB
RAID levels	0, 1
Storage drive sizes supported	2.5 \
Supported storage drive interfaces	Serial Attached SCSI (SAS), Serial ATA III
USB 2.0 ports quantity	0
On-board graphics card model	Matrox G200
Chassis type	-
Product color	Silver
Storage temperature (T-T)	-40 - 65 °C
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	5 - 93 %
Harmonized System (HS) code	84714100

Weight and Dimensions

Depth	620 mm
Width	203 mm
Height	50 mm
Weight	4360 g
