Rear seat belts
Fastening
Pull the strap, then insert the tongue in the
buckle.
Check that the seat belt is fastened
correctly by pulling the strap.
Unfastening
Press the red button on the buckle.
Guide the seat belt as it reels in.
On the outer seat belts, raise the bar to the
top of the backrest to prevent the tongue
from knocking against the side trim.
The rear seats are each fitted with a three-point
seat belt, with force limiter and, for the outer
seats, an effort limiter.

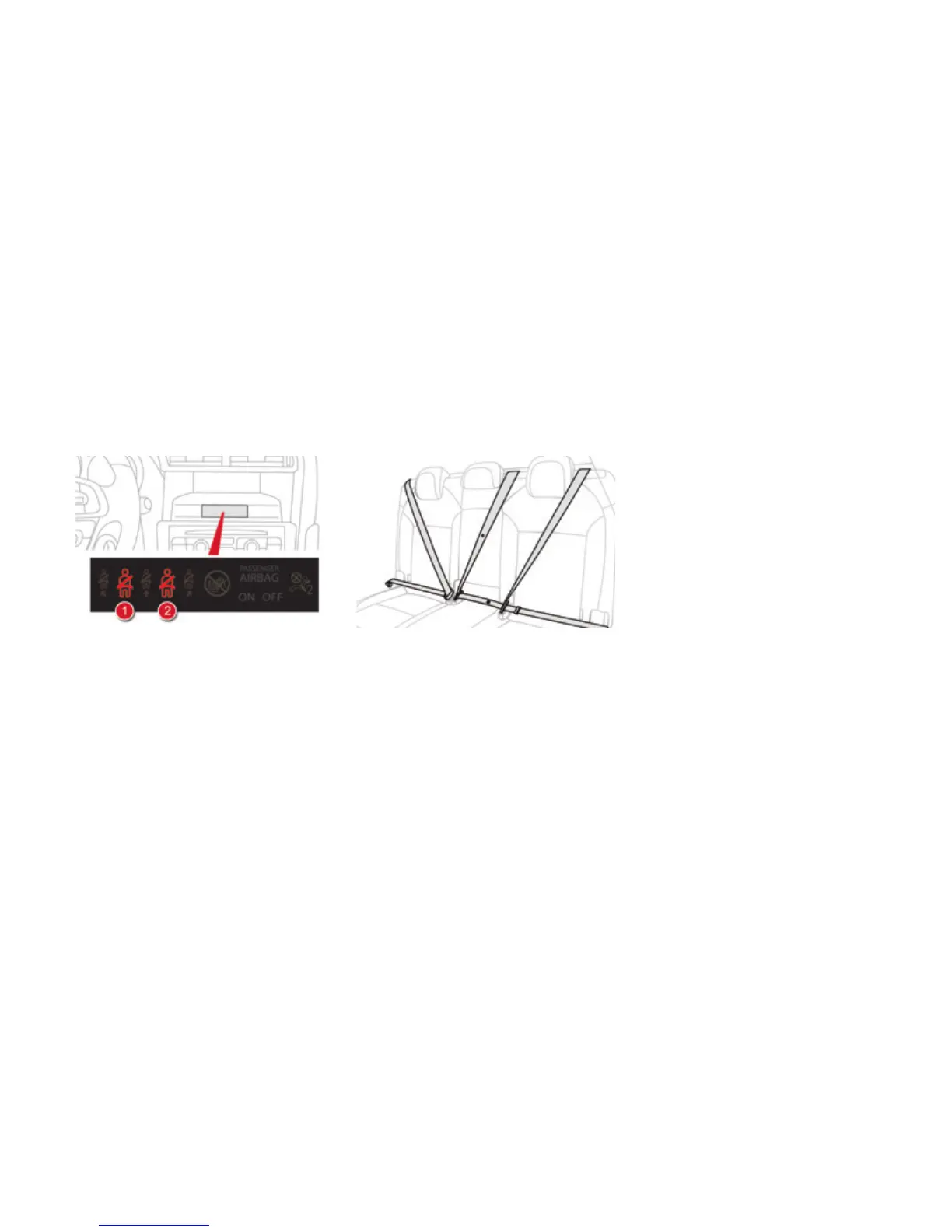

Seat belt not fastened /
unfastened warning lamps
display
1. Driver's seat belt not fastened / unfastened
warning lamp.
2. Front passenger's seat belt not fastened /
unfastened warning lamp.
The corresponding warning lamp 1 or 2 comes
on in red on the seat belt and passenger's front
airbag warning lamps display, accompanied by
an audible signal and a message in the screen,
if the seat belt is not fastened or is unfastened.
