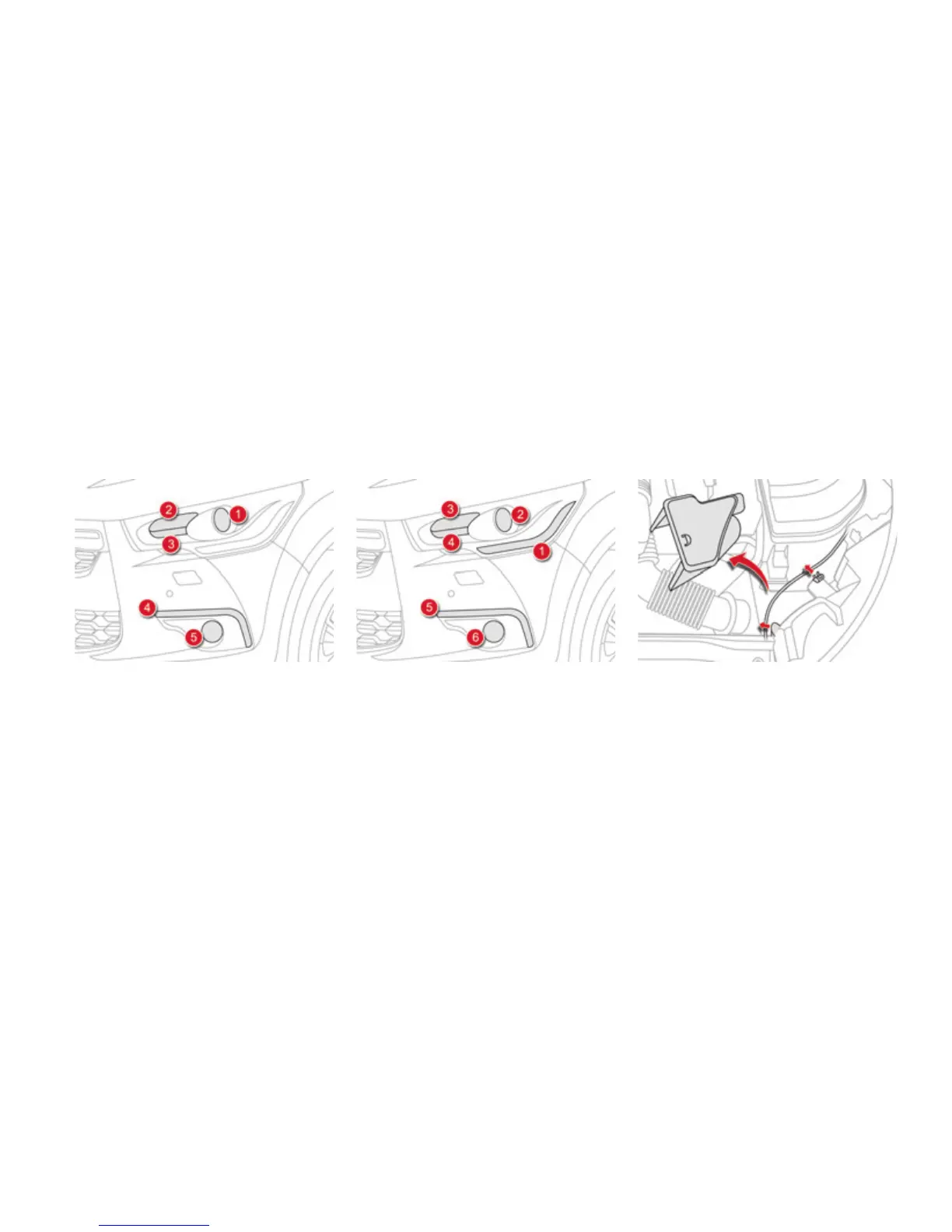

Model with xenon and directional
headlamps
1. Directional dipped/main beam
headlamps (D1S-35W).
2. Direction indicators (PY21W amber).
3. Daytime running lamps (P21/5W XL).
4. Sidelamps (LEDs).
5. Foglamps (H11-55W).
Model with halogen headlamps
1. Direction indicators (H21 clear).
2. Dipped beam headlamps (H7-55W).
3. Main beam headlamps (H1-55W).
4. Daytime running lamps (P21/5W XL).
5. Sidelamps (LEDs).
6. Foglamps (H11-55W).
Access to bulbs
Depending on the engine and only on the left
hand side, you must first carry out the following
operations for access to the protective covers
on the bulbs.
Remove the air deflector by unclipping
each of its three attachment points.
Unclip the bonnet release cable at its two
fixings.
Move the cable down.
After changing the failed bulb, remember to
put everything back in place (cable and air
deflector).
Front lamps
