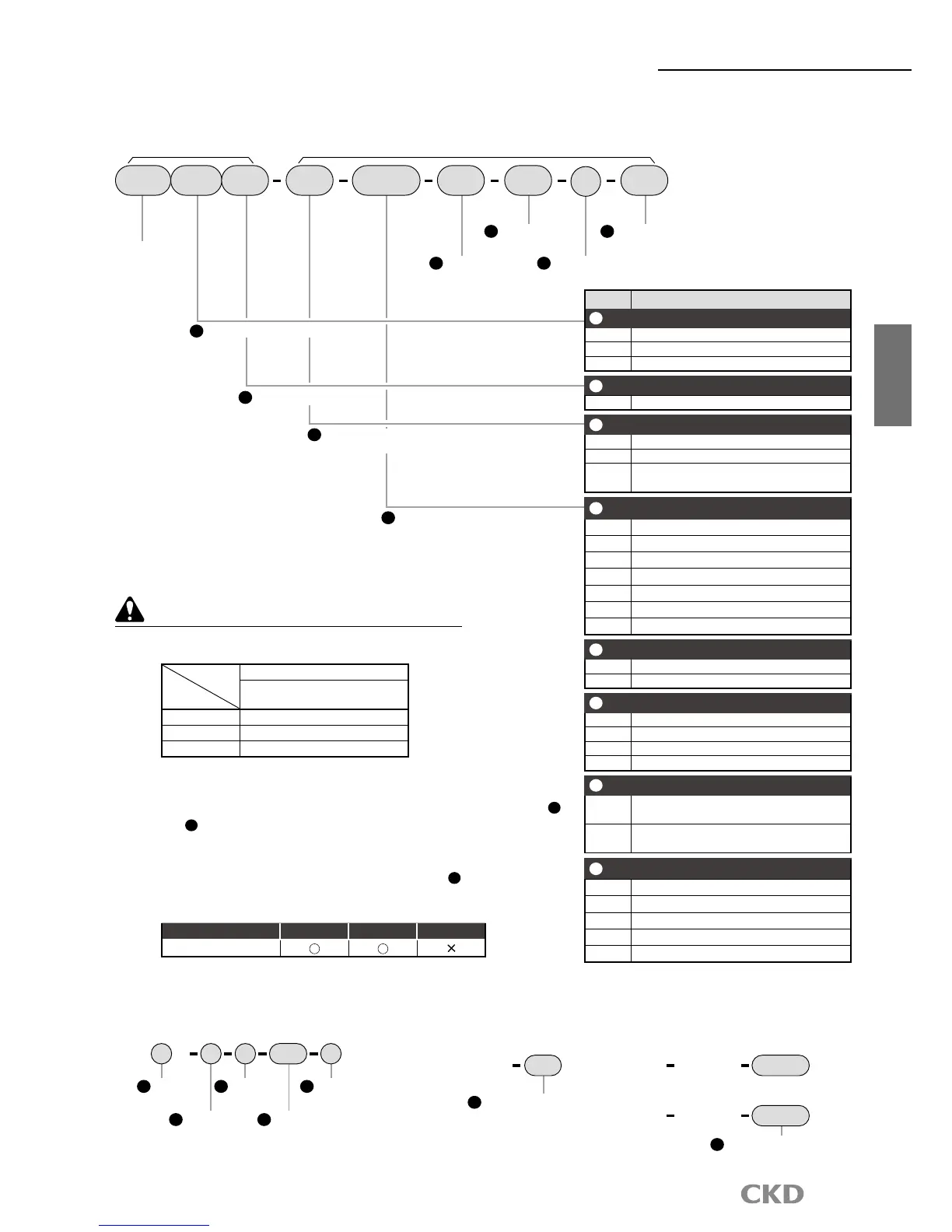

Symbol
Descriptions
A
Size (max. torque)
150 150N•m
300 300N•m
500 500N•m
B
Driver type
TH TH type driver
C
Mounting base (can not be used with a dowel hole P2, P3)
Blank Standard (without mounting base)
B With blackened mounting base
BS
Electroless nickel plating, surface treatment
mounting base Use with body surface treatment S.
F
Dowel hole
Blank Standard (without dowel hole)
P1 1 on top
P2 1 on bottom
P3
1 each on both top and bottom
G
Body surface treatment
Blank
Standard (Rotating section-blackening
fixed section outside circumference-paint)
S
Rotating section: electroless nickel
plating, fixed section: nitrating
E
Brake
Blank Standard (without electromagnetic brake)
EB
With negative actuation type electromagnetic brake
Note 2: The cable is a flexible cable.
Refer to page 35 for dimensions of a cable.
Note 3:
Select surface treatment and mounting base surface treatment with
C
and
G
. By selecting the optional electroless nickel plating treatment, you
can expect higher rust resistance compared to standard specifications.
Note 4:
"P2" and "P3" cannot be selected if "B" with blackened mounting base or "BS" electroless
nickel plating surface treatment mounting base is selected for
C
Mounting base.
Note 5: Refer to the Option Table below and select required options.
Option table
AX4150T AX4300T AX4500T
Electromagnetic brake
(-EB)
'Note 6: Additionally machined sections such as dowel holes may not have a
treated surface.
Set model no.
(actuator, driver, cable)
*Custom orders are not CE, UL/cUL, RoHS certified. Consult with CKD for details.
Discrete actuator body model no.
Discrete driver model no.
