CKD AX1000T Series User Manual

25

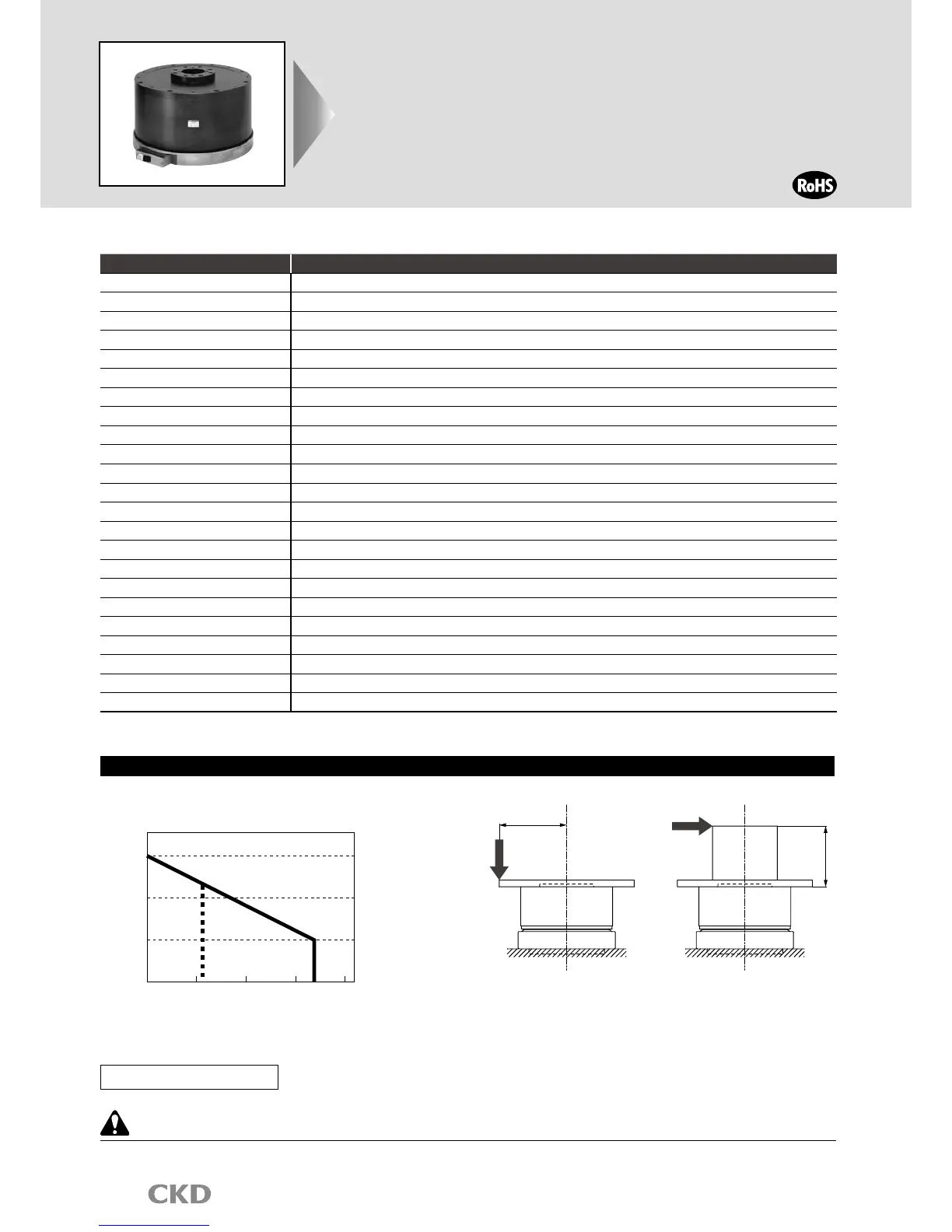

Actuator specifications
Descriptions AX410WT
Maximum output torque N•m 1000
Continuous output torque N•m 330
Max. rotation speed rpm 30
Allowable axial load N 20000
Allowable moment load N•m 400
Output shaft moment of inertia kg/m
2
2.72
Allowable load moment of inertia kg/m
2
600.00
Index accuracy (Note 1) sec. ±30
Repeatability (Note 1) sec. ±5
Output shaft friction torque N•m 20.0
Resolver resolution P/rev 540672
Motor isolation class Class F
Motor withstanding voltage 1500 VAC for one minute
Motor isolation resistance 10MΩ 500 VDC and over
Ambient temperature range 0 to 45°C
Ambient humidity range 20 to 85%RH with no dew condensation
Storage ambient temperature range -20 to 80°C
Storage ambient humidity range 20 to 90%RH with no dew condensation
Atmosphere No corrosive gas, flammable or powder dust
Weight kg 198
Run out of output shaft mm 0.03
Run out of output shaft surface mm 0.08
Protection IP20
Note1: Refer to "Technical explanations" on page 49 for the details on index accuracy and repeatability.
Note2: The max. ambient temperature is 40°C if used as an UL certified product.
Speed/max. torque characteristics
F
F
L
M(N•m)=F(N)×L(m)
M: Moment load
F: Load
L: Distance from output shaft center
M(N•m)=F(N)×(L+0.02)(m)
M: Moment load
F: Load
L: Distance from output shaft flange
(Fig. a) (Fig. b)
L
It may take a few seconds to stop depending on the speed and load conditions, even with emergency stop.
(Note) moment load
WARNING
Safety precautions
Large direct drive actuator
AX400WT
Series
Max. torque 1000N•m
large hollow shaft handy for cable wiring and piping, and a variety of options
Max. torque: 1000N•m
Compatible drier: TH type driver


AX410WTH

ާTROި



   ާ0࡮Oި

 
*This graph shows the characteristics under 3 phase AC200V
Continuous
movemen t
range
+PVGTOKVVGPV
OQXGOGPVTCPIG
