CKD AX1000T Series User Manual

Intro5

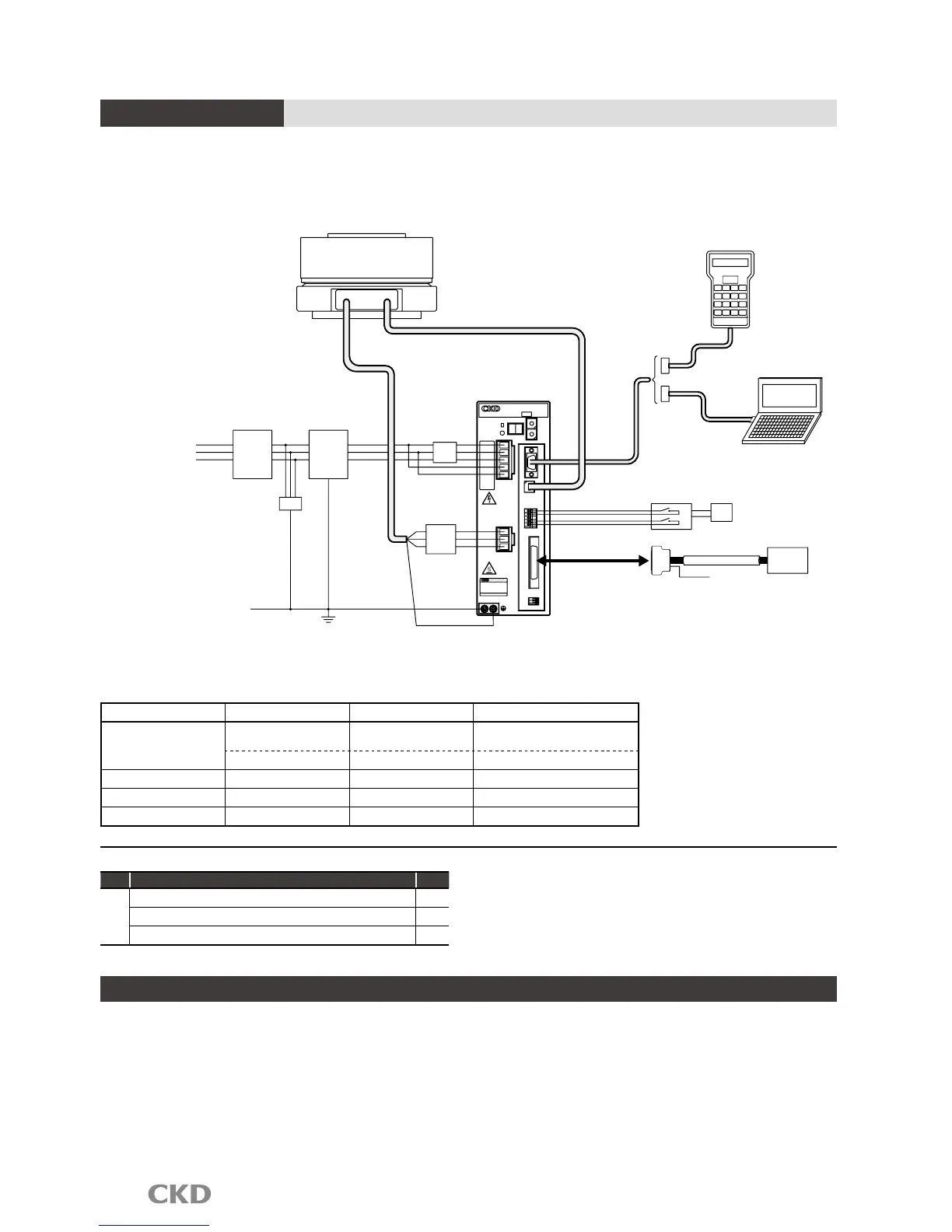

System conguration
Basic settings
1. Input the program from a personal computer or from
the teaching pendant.
2. Set required parameters the same way.
3. Set the appropriate gain.

Basic drive methods
1. The program which is selected to do wants from PLC.
2. Provide start signal from a PLC.
3. Postioning complete signal will be output from the
driver after a movement.

ABSODEX
+ S2
+ S1
-
- S1
S2
CN5
U
V
W
50/60Hz
- 1 15 V
AC100
CN4
L1
L2C
L1C
L3
L2
CHARGE
P O WE R
T
B
2
C
N
3
T
B
1
C
N
2
C
N
1
G1
G2
DRIVER
SERIES
T
MON.
BK +
BK -
Surge
suppressor
Three phase 200 VAC
GND
Ferrite core
Electromagnetic contactor (any)
Driver
Teaching Pendant
“AX0180” sold separately
PC
Safety
Relay unit
I/O connector
I/O
AX driver power supply
DC24V
PLC
Safety door
switch and etc.,
Noise filter
(Motor cable)
Circuit breaker
(Resolver cable)
Direct drive actuator
Actuator body
CN1
CN2
TB1
CN3
Configuration (set model no. selection)
Name Quantity
Standard
configuration
Actuator body 1
Driver (with controller) 1
Motor cable and resolver cable 1 each
Accessories; I/O connector, connector for power supply,
connector for motor cable
Programming tool
Teaching pendant "AX0180" available.
Adjustment and installation support tool (AX tools)
available. (Free, OS:Windows)
Create and save programs, set parameters, enter
commands using a PC.
Communication cable RS-232C(for9 pin D-sub(2m)
model no.:AX-RS232C-9P) is required.



Product name Application Model no. Manufacturer
Noise filter
Three phase/Single phase
AC200V to 230V
3SUP-EF10-ER-6 Okaya Electric
Single phase AC100V to 115V NF2015A-OD Soshin Electric
Ferrite core Common RC5060 Soshin Electric
Surge protector Common R/A/V-81BXZ-4 Okaya Electric
FG clamp* Common FGC-5, FGC-8 Kitagawa Industries
*FG clamp is used to earth the sheild for motor cable and resolver cable.
The parts below and over current/short circuit protection components are required to comply with the CE marking.
Also, the driver must be placed withing the switch board. Refer to the manual or technical documents for Absodex
AX Series TS/TH type to find out how to install them.
Note) The communication cable is designed only to
be used for Absodex. If other cables are used, the
drive and pc may be damaged.
Note) Disconnect the teaching pendant or PC from
CN1 during normal operation. Connect them only
during setting and adjustment.
Note) Do not put the PC in "stand by" with the USB-
Serial conversion cable is connected. This will
result in an error after returning from stand by.
