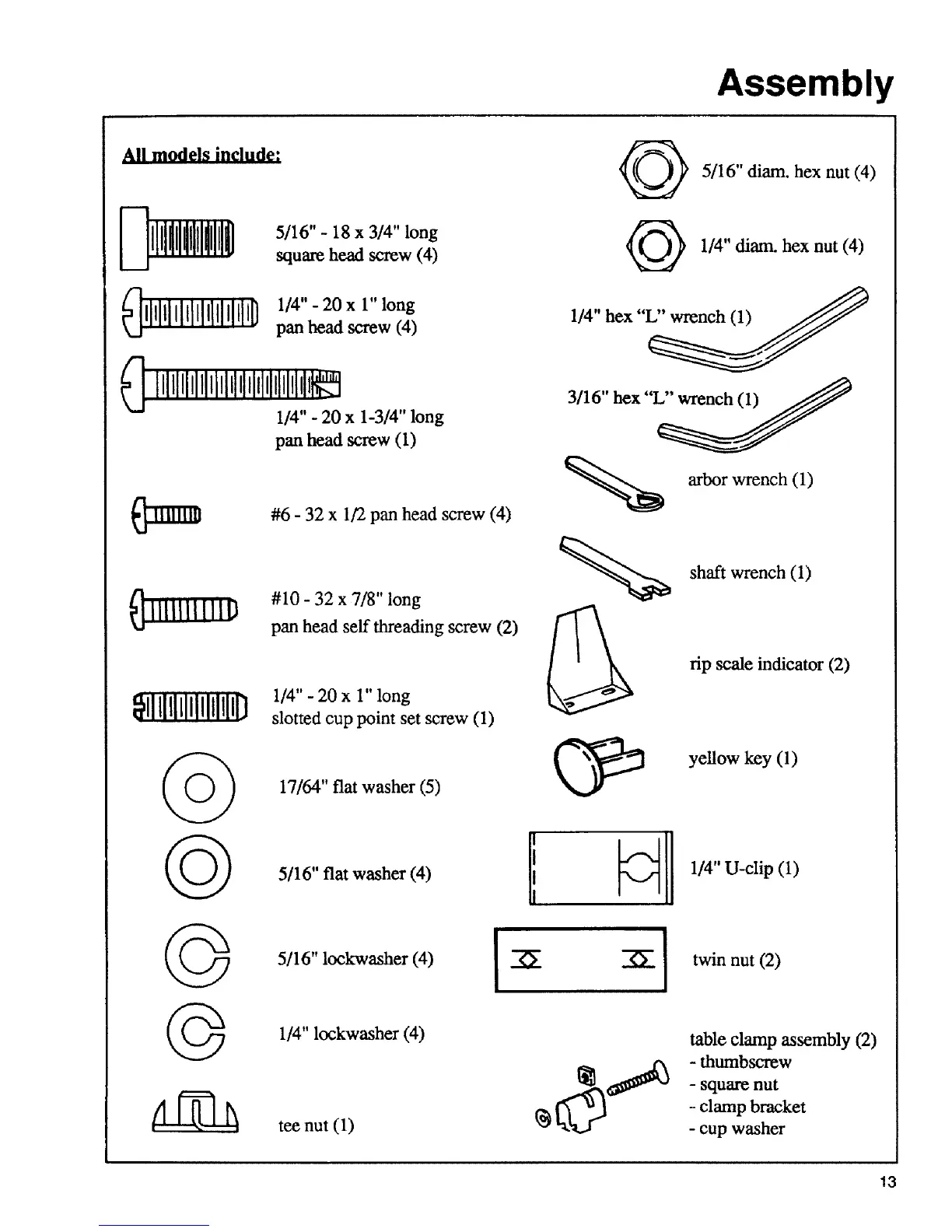

Assembly
All models include:
5/16" - 18 x 3/4" long
square head screw (4)
_]lllllllllllllllllllllll1/4,,-20x1"long
pan head screw (4)
_] lllllillltl*l=l_l*l_lllllll,lJ_
1/4" - 20 x 1-3/4" long
pan head screw (I)
#6 - 32 x 1/2 pan head screw (4)
_]llllllllllU
#10 - 32 x 7/8" long
pan head self threading screw (2)
NNNN
G
G
©
1/4" - 20 x 1" long
slotted cup point set screw (1)
17/64" flat washer (5)
5/16" flat washer (4)
5/16" lockwasher (4)
!
1/4" lockwasher (4)
tee nut (1)
@ 5/16" diam. hex nut (4)
1/4" diam. hex nut (4)
1/4" hex "_
3/16" hex "L'_
arbor wrench (1)
shaft wrench (1)
rip scale indicator (2)
yellow key (1)
table clamp assembly (2)
- thumbscrew
- square nut
- clamp bracket
- cup washer
13
