Alignment

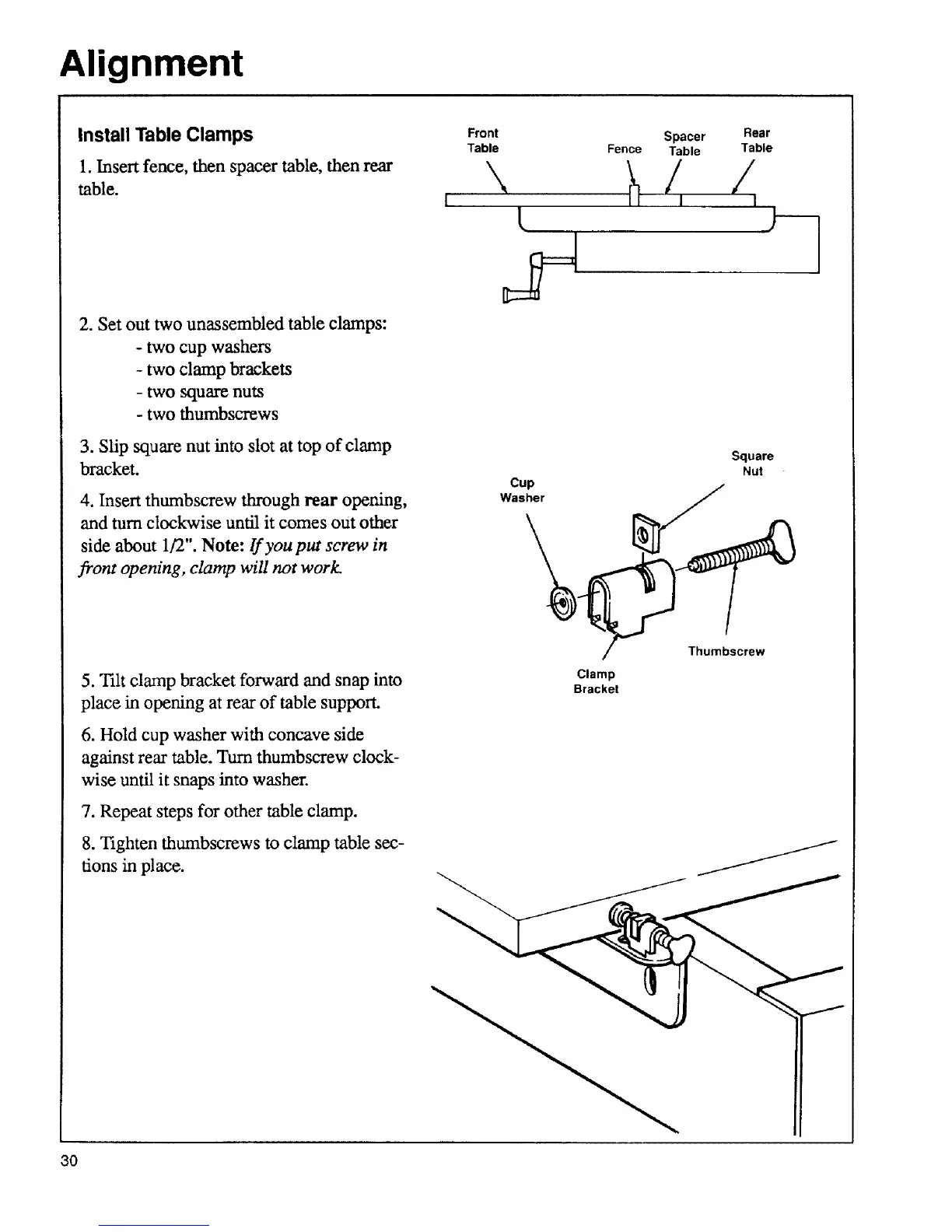

Install Table Clamps
1.Insert fence, then spacer table, then rear
table.
2. Set out two unassembled table clamps:
- two cup washers
- two clamp brackets
- two square nuts
- two thumbscrews
3. Slip square nut into slot at top of clamp
bracket.
4. Insert thumbscrew through rear opening,
and turn clockwise until it comes out other
side about 1/2". Note: Ifyouput screw in
front opening, clamp will not work.
Front
Table
\
Spacer
Fence Table
Rear
Table
/
I
/--
Cup
Washer
Square
Nut
5. "tilt clamp bracket forward and snap into
place in opening at rear of table support.
6. Hold cup washer with concave side
against rear table. Turn thumbscrew clock-
wise until it snaps into washer.
7. Repeat steps for other table clamp.
8. Tighten thumbscrews to clamp table sec-
tions in place.
Clamp
Bracket
Thumbscrew
30
