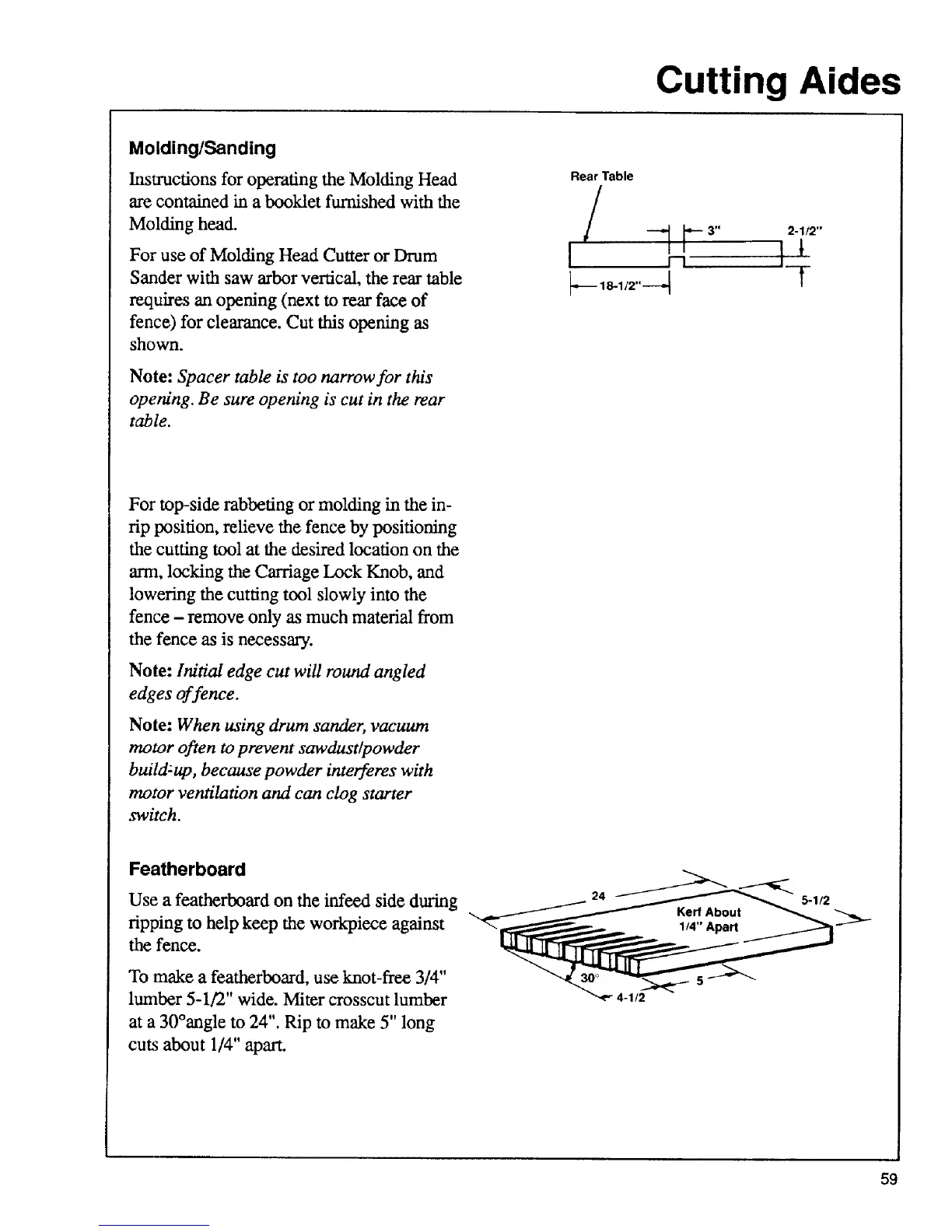

Cutting Aides
Molding/Sanding
Instructions for operating the Molding Head
are contained in a booklet furnished with the
Molding head.
For use of Molding Head Cutter or Drum
Sander with saw arbor vertical, the rear table
requires an opening (next to rear face of
fence) for clearance. Cut this opening as
shown.
Note: Spacer table is too narrow for this
opening. Be sure opening is cut in the rear
table.
Rear Table
i/ -lr
2-1/2"
t
For top-side rabbeting or molding in the in-
rip position, relieve the fence by positioning
the cutting tool at the desired location on the
am1, locking the Carriage Lock Knob, and
lowering the cutting tool slowly into the
fence - remove only as much material from
the fence as is necessary.
Note: Initial edge cut will round angled
edges offence.
Note: When using drum sander, vacuum
motor often to prevent sawdust/powder
build-up, because powder interferes with
motor ventilation and can clog starter
switch.
Featherboard
Use a featherboard on the infeed side during
ripping to help keep the workpiece against
the fence.
To make a featherboard, use knot-free 3/4"
lumber 5-1/'2" wide. Miter crosscut lumber
at a 30°angle to 24". Rip to make 5" long
cuts about 1/4" apart.
4-1/2
5-1/2
59
