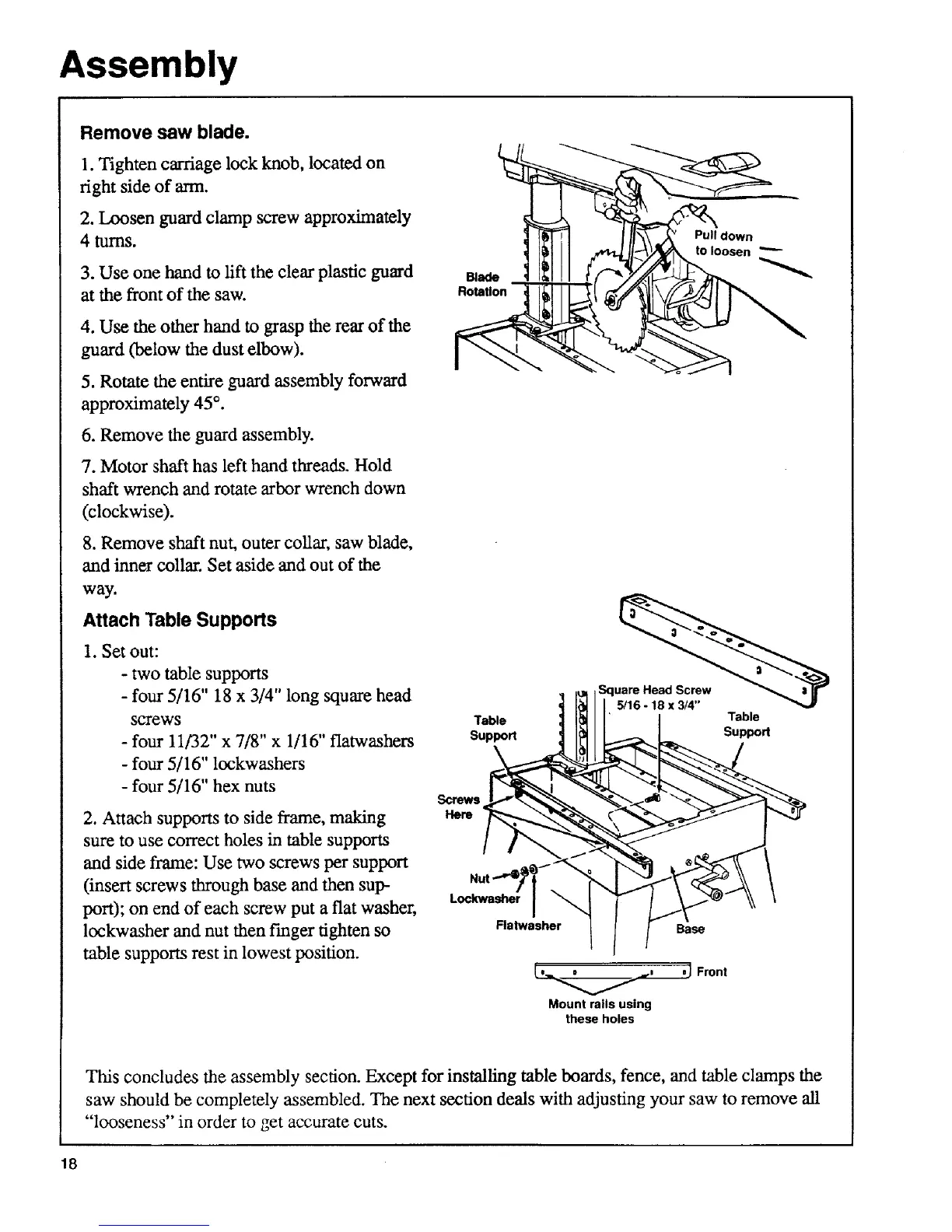

Assembly
Remove saw blade.
1. Tighten carriage lock knob, located on
right side of arm.
2. Loosen guard clamp screw approximately
4 turns.
3. Use one hand to lift the clear plastic guard
at the front of the saw.
4. Use the other hand to grasp the rear of the
guard (below the dust elbow).
5. Rotate the entire guard assembly forward
approximately 45 °.
6. Remove the guard assembly.
7. Motor shaft has left hand threads. Hold
shaft wrench and rotate arbor wrench down
(clockwise).
8. Remove shaft nut, outer collar, saw blade,
and inner collar. Set aside and out of the
way.
Attach Table Supports
1. Set out:
- two table supports
- four 5/16" 18 x 3/4" long square head
screws
- four 11/32" x 7/8" x 1/16" flatwashers
- four 5/16" lockwashers
- four 5/16" hex nuts
2. Attach supports to side frame, making
sure to use correct holes in table supports
and side frame: Use two screws per support
(insert screws through base and then sup-
port); on end of each screw put a fiat washer,
lockwasher and nut then f'mger tighten so
table supports rest in lowest position.
Blade
Table
Support
\
Scl'ew$
Here
Pull down
to loosen "--
Table
Support
Lockwasher
Flatwasher
Base
!' *] Front
Mount rails using
these holes
This concludes the assembly section. Except for installing table boards, fence, and table clamps the
saw should be completely assembled. The next section deals with adjusting your saw to remove all
"looseness" in order to get accurate cuts.
18
