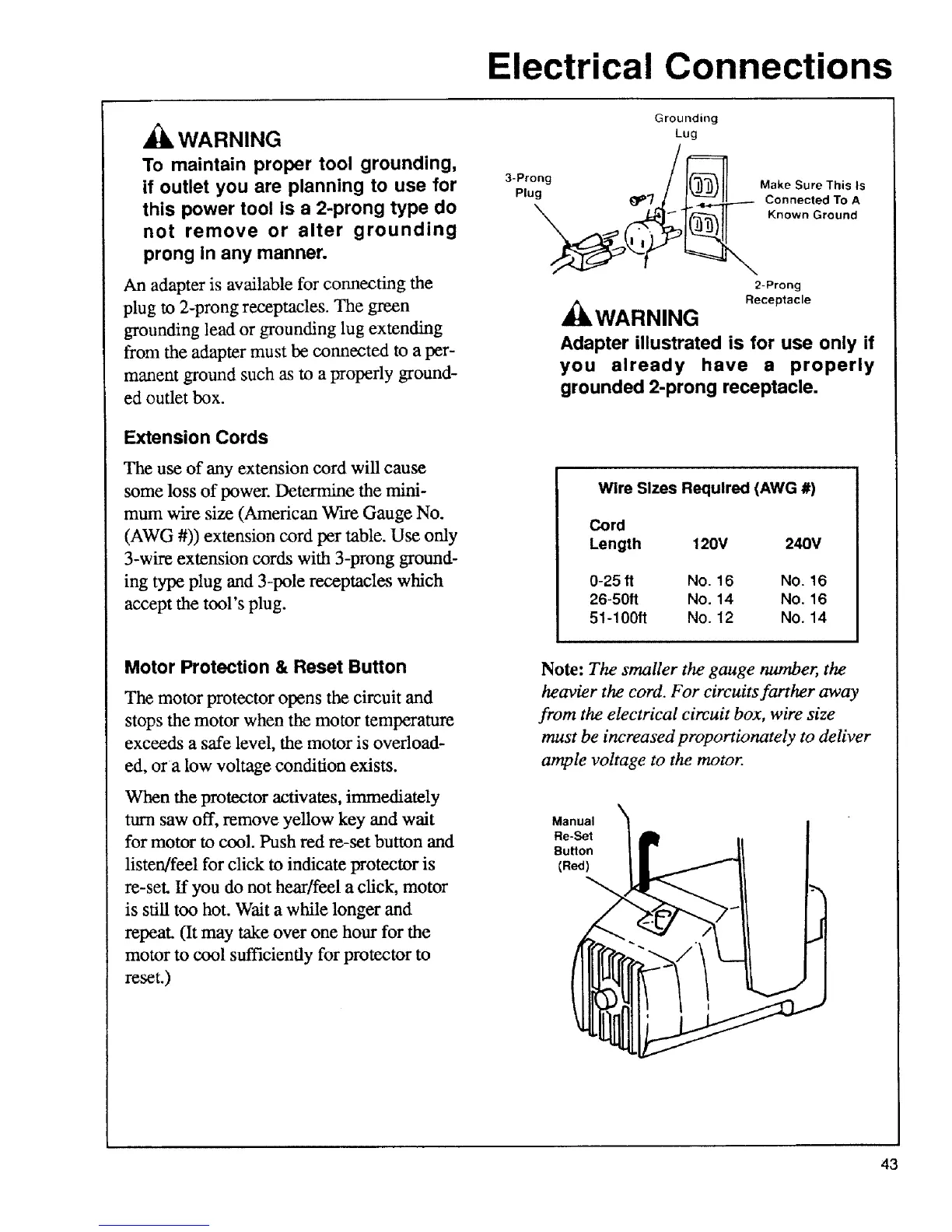

Electrical Connections
WARNING
To maintain proper tool grounding,
if outlet you are planning to use for
this power tool is a 2-prong type do
not remove or alter grounding
prong in any manner.
An adapter is available for connecting the
plug to 2-prong receptacles. The green
grounding lead or grounding lug extending
from the adapter must be connected to a per-
manent ground such as to a properly ground-
ed outlet box.
Extension Cords
The use of any extension cord will cause
some loss of power. Determine the mini-
mum wire size (American Wire Gauge No.
(AWG #)) extension cord per table. Use only
3-wire extension cords with 3-prong ground-
ing type plug and 3-pole receptacles which
accept the tool's plug.
Grounding
Lug
3-Prong / _ Make Sure This Is
2-Prong
,_WARNING .eco.taclo
Adapter illustrated is tor use only if
you already have a properly
grounded 2-prong receptacle.
Wire Sizes Required (AWG #)
Cord
Length 120V 240V
0-25ff No. 16 No. 16
26-50fl No. 14 No. 16
51-100fl No. 12 No. 14
Motor Protection & Reset Button
The motor protector opens the circuit and
stops the motor when the motor temperature
exceeds a safe level, the motor is overload-
ed, ora low voltage condition exists.
When the protector activates, immediately
turn saw off, remove yellow key and wait
for motor to cool. Push red re-set button and
listen/feel for click to indicate protector is
re-seL If you do not hear/feel a click, motor
is still too hot. Wait a while longer and
repeal (It may take over one hour for the
motor to cool sufficiently for protector to
reset.)
Note: The smaller the gauge number, the
heavier the cord. For circuits farther away
from the electrical circuit box, wire size
must be increased proportionately to deliver
ample voltage to the motor.
Manual
Re-Set
BuHon
(Red)
43
