PARTS LIST FOR CRAFTSMAN 10" RADIAL SAW
MODEL NUMBERS 113.196120, 113.196320 & 113.196420
_- IF THIS PART IS REMOVED,
DISCARD AND REPLACE
WITH A NEW PUSH NUT.
22

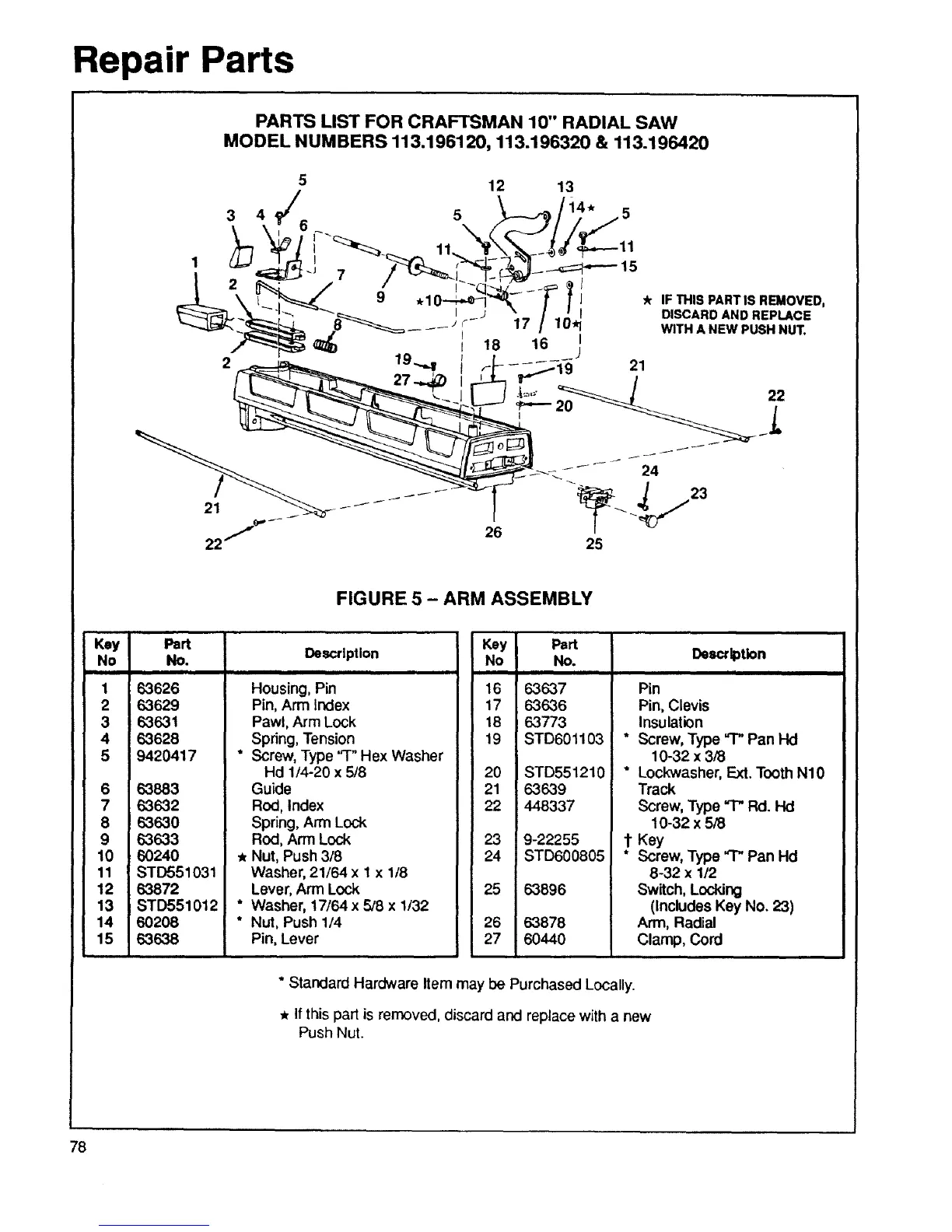

FIGURE 5 - ARM ASSEMBLY
Key
No
Iiiiiiiiiiii
1
2
3
4
5
6
7
8
11
12
13
14
15
Part
No.
63626
63629
63631
63628
9420417
63883
63632
63630
63633
60240
STD551031
63872
STD551012 *
60208 *
63638
Description
Housing, Pin
Pin,Arm Index
Pawl, Arm Lock
Spring, Tension
" Screw, Type "T" Hex Washer
Hd 1/4-20 x 5/8
Guide
Rod, Index
Spring, Arm Lock
Rod, Arm Lock
, Nut, Push 3/8
Washer, 21/64 x 1 x 1/8
Lever, Arm Lock
Washer, 17/64 x 5/8 x 1/32
Nut, Push 1/4
Pin, Lever
Key Part
No No.
16 63637
17 63636
18 63773
19 STD601103
20 STD551210
21 63639
22 448337
23 9-22255
24 STD600805
25 63896
26 63878
27 60440
Descdption
Pin
Pin, Clevis
Insulation
* Screw, Type "1" Pan Hd
10-32 x 3/8
* LocloNasher, Ext. Tooth N10
Track
screw, Type "T" Rd. Hd
10-32 x 5/8
1"Key
* screw, Type "3" Pan Hd
8-32 x 1/2
Switch, Locking
(Includes Key No. 23)
Arm, Radial
Clamp, Cord
* Standard Hardware Item may be Purchased Locally.
, If this part is removed, discard and replace with a new
Push Nut.
