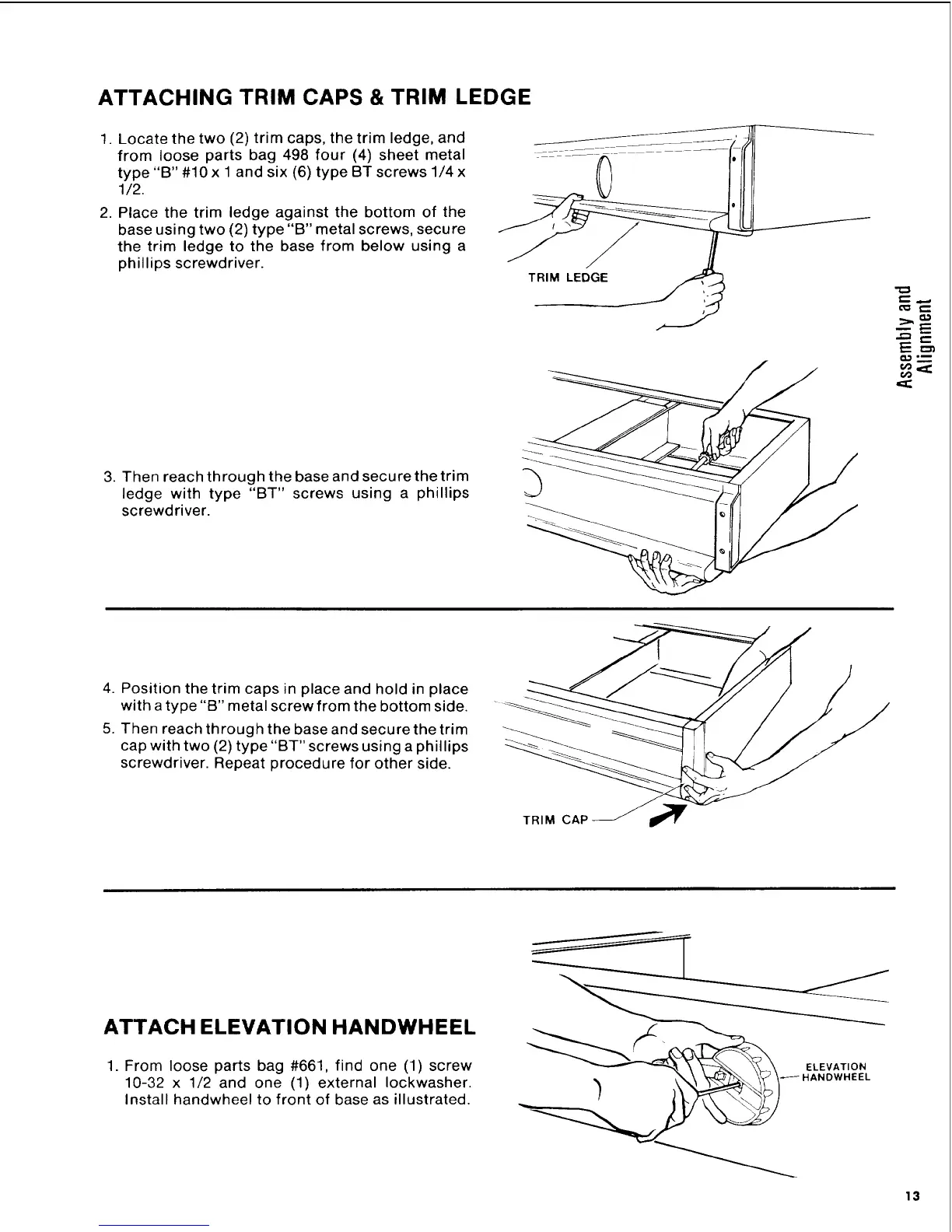

ATTACHING TRIM CAPS & TRIM LEDGE
1. Locate the two (2) trim caps, the trim ledge, and
from loose parts bag 498 four (4) sheet metal
type "B" #10 x 1 and six (6) type BT screws 1/4 x
1/2.
2. Place the trim ledge against the bottom of the
base using two (2) type "B" metal screws, secure
the trim ledge to the base from below using a
phillips screwdriver.
TRIM LEDGE
3. Then reach through the base and secure the trim
ledge with type "BT" screws using a phillips
screwdriver.
4. Position the trim caps in place and hold in place
with a type "B" metal screw from the bottom side.
5. Then reach through the base and securethe trim
cap with two (2) type"BT" screws using a phillips
screwdriver. Repeat procedure for other side.
TRIM CAP
ATTACH ELEVATION HANDWHEEL
1. From loose parts bag #661, find one (1) screw
10-32 x 1/2 and one (1) external Iockwasher.
Install handwheel to front of base as illustrated.
ELEVATION
HANDWHEEL
13
