STEP SEVEN
Installing and Adjusting Rip Scale Indicators
NOTE: The rip scales and pointers are intended to
be used for quick settings. Adjustments will be
necessary for blades of different thicknesses. For
greater accuracy take direct measurements between
blade and fence with ruler or measuring tape.
1. Locate rip scale indicators in loose parts bag
#661 and slide indicators onto mounting brackets.
2. Unlock swivel lock handle and move the blade
into the OUT-RIP position. Lock the swivel lock
handle.
,
4.
,
.
Measure 2" from rip fence to nearest tooth on the
blade and lock rip lock handle.
Adjust "out rip" scale indicator by sliding until
indicator line reads 2 inches on the upper of the
two "out rip" scales as illustrated. Out rip scales
are located on left side of arm.
Unlock rip lock handle and move blade away
from fence. Unlock the swivel handle and rotate
the motor to the IN-RIP position. Lock the swivel
lock handle.
Adjust "in-rip" scale indicator (located on right
side of arm) by sliding until indicator line reads
"0" inches.

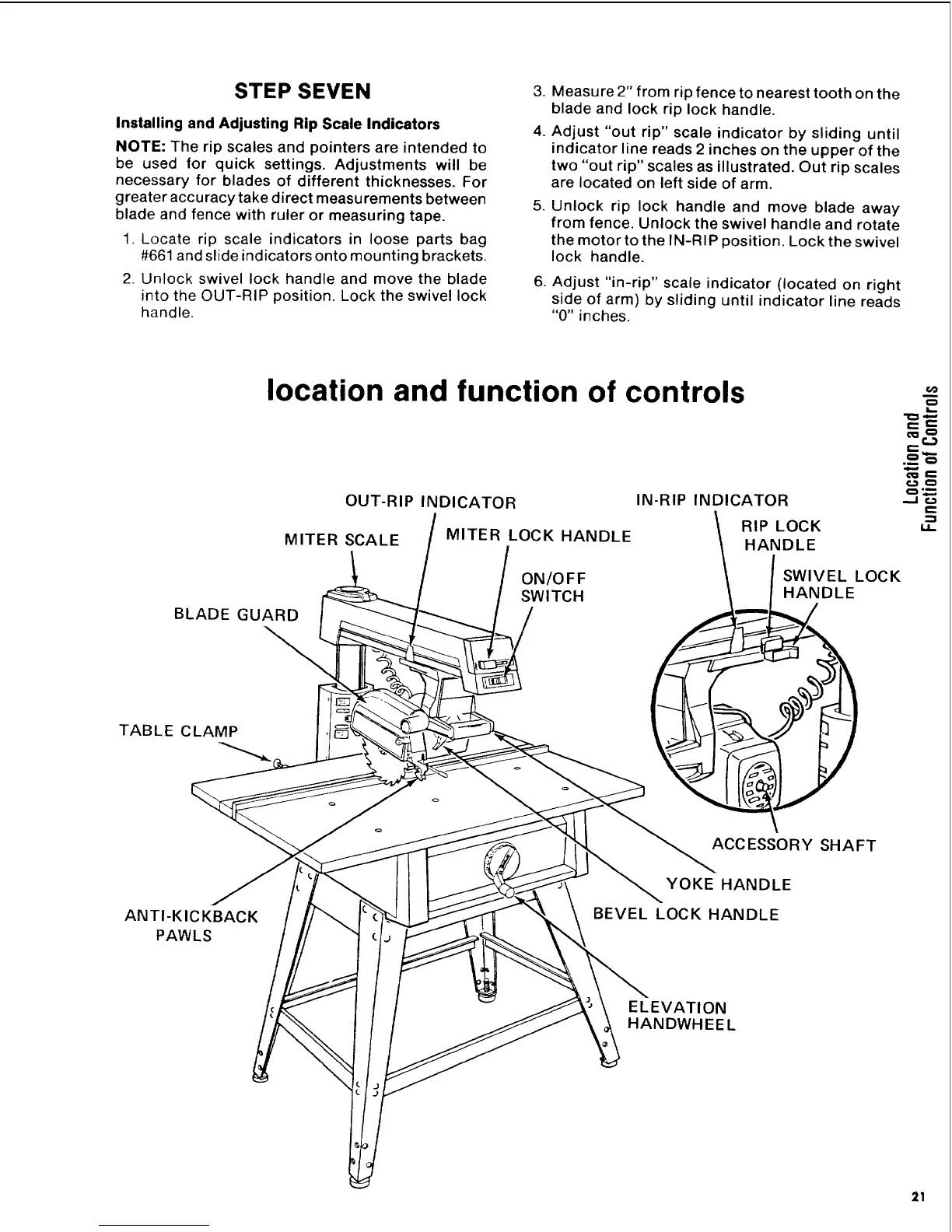

location and function of controls
OUT-RIP INDICATOR
MITER SCALE MITER LOCK HANDLE
ON/OFF
SWITCH
BLADE GUARD
TABLE CLAMP
IN-RIP INDICATOR
I RIP LOCK
HANDLE
SWIVEL LOCK
ACCESSORY SHAFT
u'J
.== o
-,z
1.4-
ANTI-KICKBACK
PAWLS
YOKE HANDLE
BEVEL LOCK HANDLE
ELEVATION
HANDWHEEL
21
