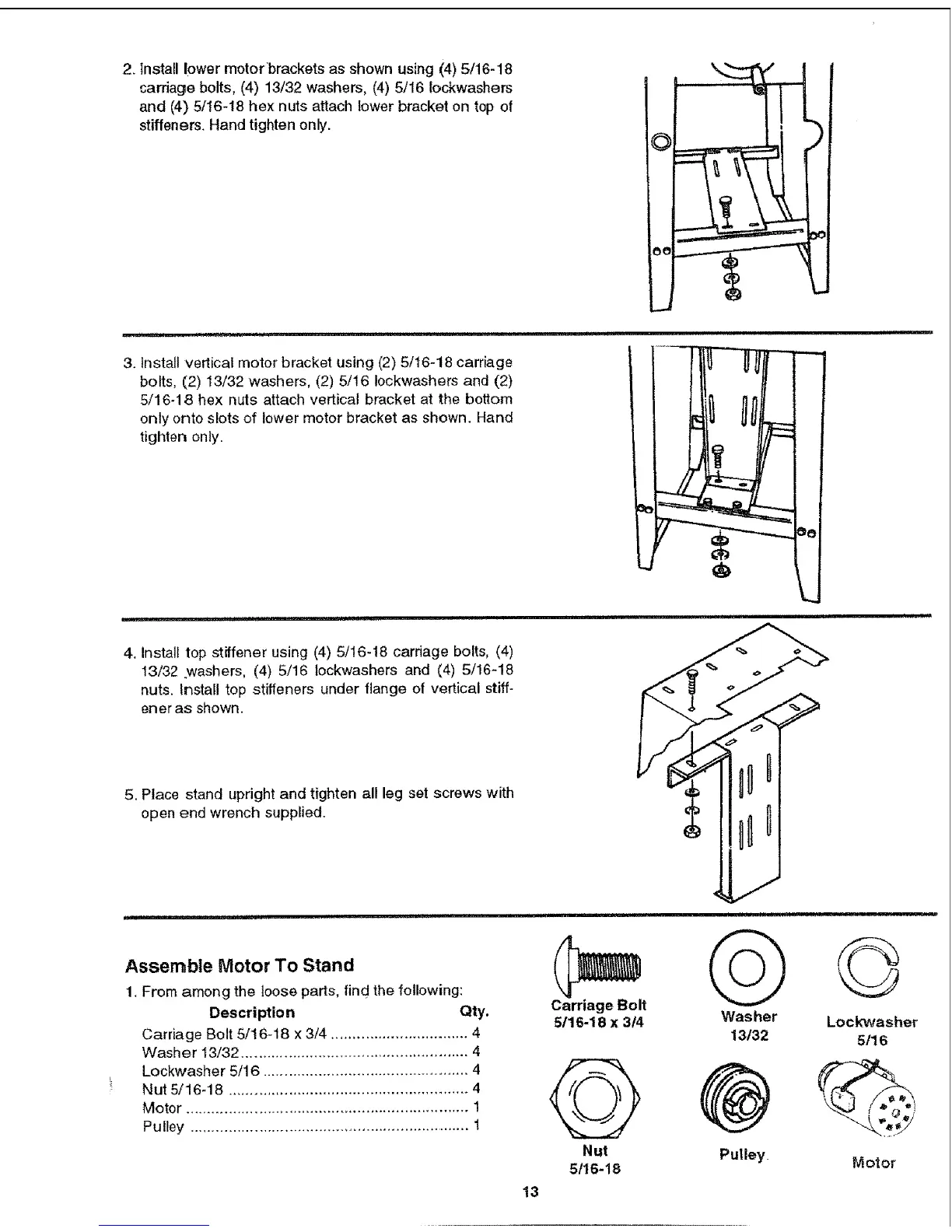

Craftsman 113.232240 - Assemble Motor to Stand

2. Install lower motorbrackets as shown using (4) 5/16-18
carriage bolts, (4) 13/32 washers, (4) 5/16 Iockwashers
and (4) 5/16-18 hex nuts attach lower bracket on top of
stiffeners. Hand tighten only.
3. Install vertical motor bracket using (2) 5/16-18 carriage
bolts, (2) 13/32 washers, (2) 5/16 Iockwashers and (2)
5/16-18 hex nuts attach vertical bracket at the bottom
only onto slots of lower motor bracket as shown. Hanrt
tighten only.
4. install top stiffener using (4) 5/16-18 carriage bolts, (4)
13/32 washers, (4) 5/16 tockwashers and (4) 5/16-18
nuts. Install top stiffeners under flange of vertical stiff-
ener as shown.
5. Place stand upright and tighten all leg set screws with
open end wrench supplied.
Assemble Motor To Stand
1. From among the loose parts, find the following:
Description Qty.
Carriage Bolt 5/16-18 x 3/4 ................................ 4
Washer 13/32 ..................................................... 4
Lockwasher 5/16 ................................................ 4
Nut 5/16-18 ........................................................ 4
Motor .................................................................. 1
Pulley .................................................................. 1
Carriage Bolt
5t16-18 x 3/4
Nut
5t16-18
13
Q
Washer
13132
Pulley.
©
Lockwasher
5/16
Motor
