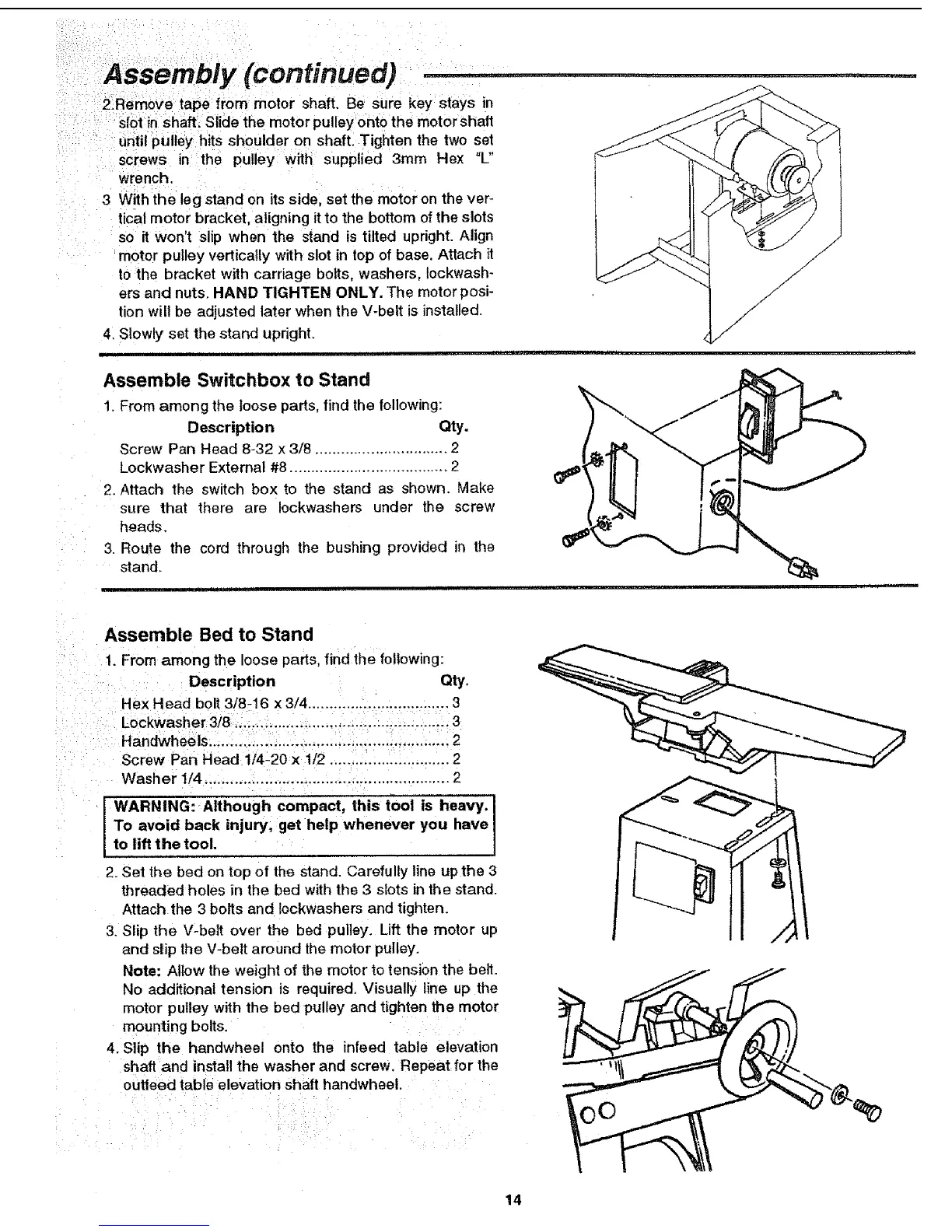

Until pulley hits shoulder on shaft. Tighten the two set
screws in:the pulley with supplied 3ram Hex "L"
i wrench.
i
3 With the leg stand on its side, set the motor on the ver-
' tical motor bracket, aligning it to the bottom of the slots
so it won't Slip when the stand is tilted upright. Align
motor pulley vertically with slot in top of base. Attach it
to the bracket with carriage bolts, washers, Iockwash-
ers and nuts. HAND TIGHTEN ONLY. The motor posi-
tion will be adjusted later when the V-belt is installed.
4, Slowly set the stand upright.
Assemble Switchbox to Stand
1. From among the loose parts, find the following:
Description Qty.
Screw Pan Head 8-32 x 3/8 ............................... 2
Lockwasher External #8 ..................................... 2
2. Attach the switch box to the stand as shown, Make
sure that there are Iockwashers under the screw
heads.
3. Route the cord through the bushing provided in the
stand.
liH
Assemble Bed to Stand
1. From among the loose parts, find the following:
Qty.
Rex Head b01t3/8-16 x 3/4 ............. i!.......:.,...i.,... 3
: LOckwasher3/8..;.,_. ......_......... ;_._....-. _;3
Screw Pan Head 114-20x 11/2........ .................... 2
: Washer 1/4 ,..; ..... i:,.i.,.,...; ....... _.:;!..................... 2
WARNING: Although compact, this tool is heavy. I
To avoid back injury, get help whenever you have
I
to lift the tool.
2. Set the bed on top of the stand. Carefully line upthe 3
threaded holes in the bed with the 3 slots in the stand.
Attach the 3 bolts and Iockwashers and tighten.
3. Slip the Vzbelt over the bed pulley. Lift the motor up
and slip the V-belt around the motor pulley.
Note: Allow the weight of the motor to tension the belt.
No additional tension is required. Visually line up the
motor pulley with the bed pulley and tighten the motor
mounting bolts.
4. Siip the handwheel onto the infeed table elevation
shaft and install the washer and screw. Repeat for the
outfeed table elevation shaft handwheel.
