Craftsman 113.232240 User Manual

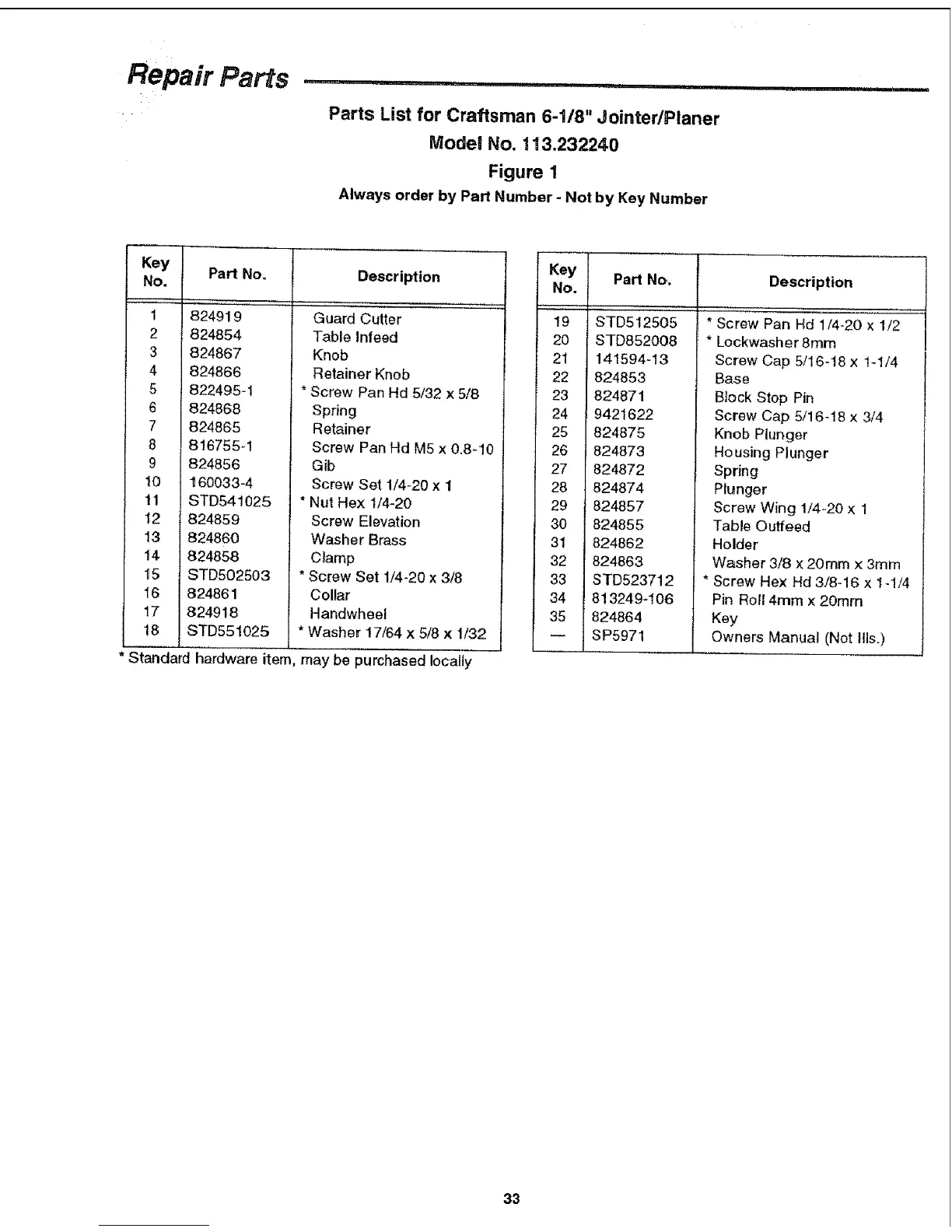

Repair Parts
Parts List for Craftsman 6-118" Jointer/Pianer
Mode! No, 113.232240
Figure 1
Always order by Part Number - Not by Key Number
Key
No.
........ i,
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Part No. Description
824919
824854
824867
824866
822495-1
824868
824865
816755-1
824856
160033-4
STD541025
824859
824860
824858
STD502503
824861
824918
STD551025
Guard Cutter
Table Infeed
Knob
Retainer Knob
* Screw Pan Hd 5/32 x 5/8
Spring
Retainer
Screw Pan Hd M5 x 0,8-10
Gib
Screw Set 1/4-20 x 1
* Nut Hex 1/4-20
Screw Elevation
Washer Brass
Clamp
* Screw Set 1/4420x 3t8
Collar
Handwheet
* Washer 17/64 x 5/8 x 1/32
Standard hardware item, may be purchased locally
Key
No.
19
20
21
22
23
24 I
25
26
27
28
29
30
31
32
33
34
35
Part No. Description
STD512505
STD852008
141594-13
824853
824871
9421622
824875
824873
824872
824874
824857
824855
824862
824863
STD523712
813249-106
824864
SP5971
* Screw Pan Hd 1/4-20 x 1/2
* Lockwasher 8turn
Screw Cap 5/16_18 x 1-1/4
Base
Block Stop Pin
Screw Cap 5/16-18 x 3/4
Knob Plunger
Housing Plunger
Spring
Plunger
Screw Wing 1/4-20 × 1
Table Outfeed
Holder
Washer 3/8 x 20mm x 3mm
* Screw Hex Hd 3/8-16 x 1-!/4
Pin Roll 4ram x 20ram
Key
Owners Manual (Not Itls.)
33
