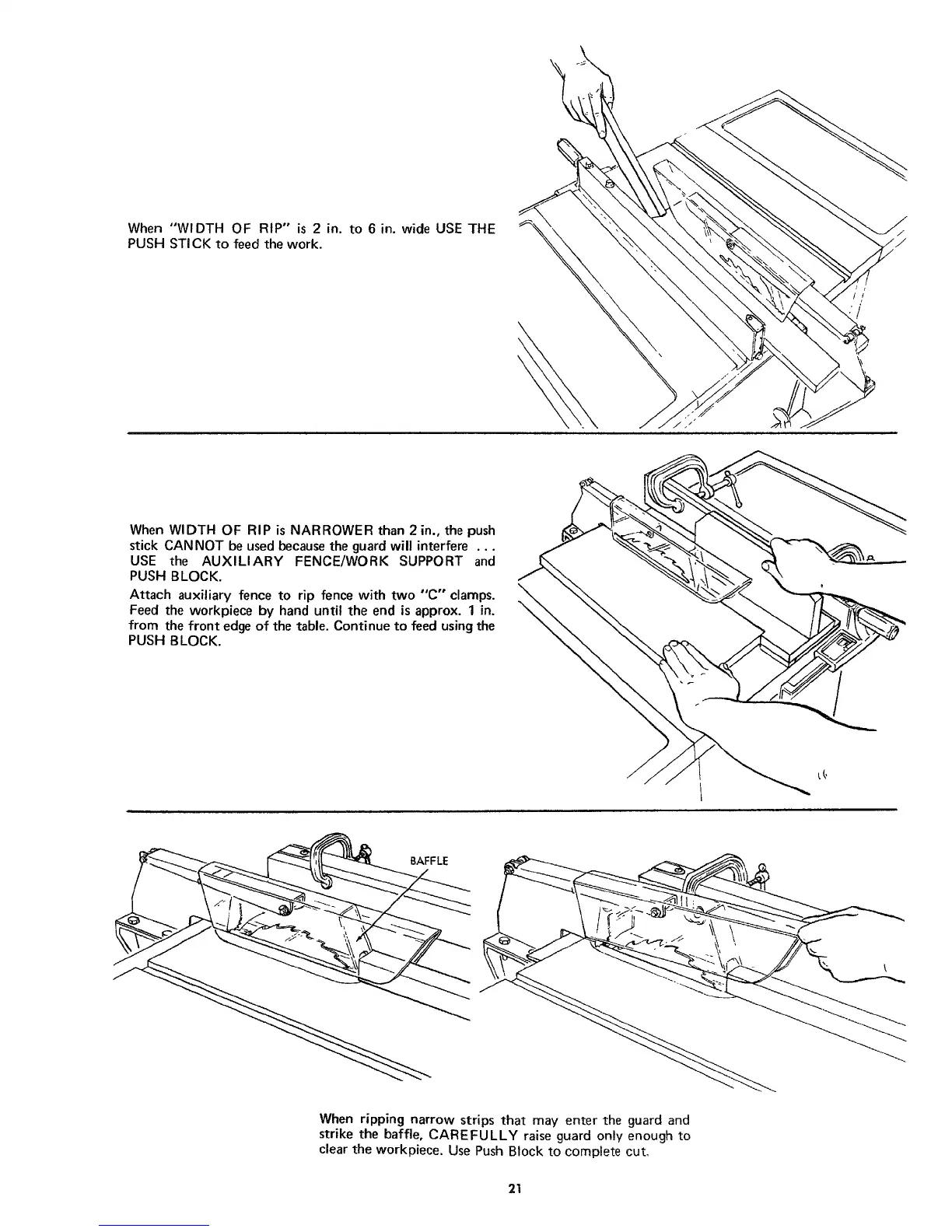

When "WIDTH OF RIP" is 2 in. to 6 in. wide USE THE
PUSH STICK to feed the work.
\
!
! I
/
When WIDTH OF RIP is NARROWER than 2 in., the push
stick CANNOT be used because the guard will interfere ...
USE the AUXILIARY FENCE/WORK SUPPORT and
PUSH BLOCK.
Attach auxiliary fence to rip fence with two "'C "° clamps.
Feed the workpiece by hand until the end is approx. 1 in.
from the front edge of the table. Continue to feed using the
PUSH BLOCK.
BAFFLE
When ripping narrow strips that may enter the guard and
strike the baffle, CAREFULLY raise guard only enough to
clear the workpiece. Use Push Block to complete cut,
21
