PARTS LIST FOR CRAFTSMAN 12-! NCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
1 2 3
/
/
/
/
/
LI
12
5 |
8 7
9
6

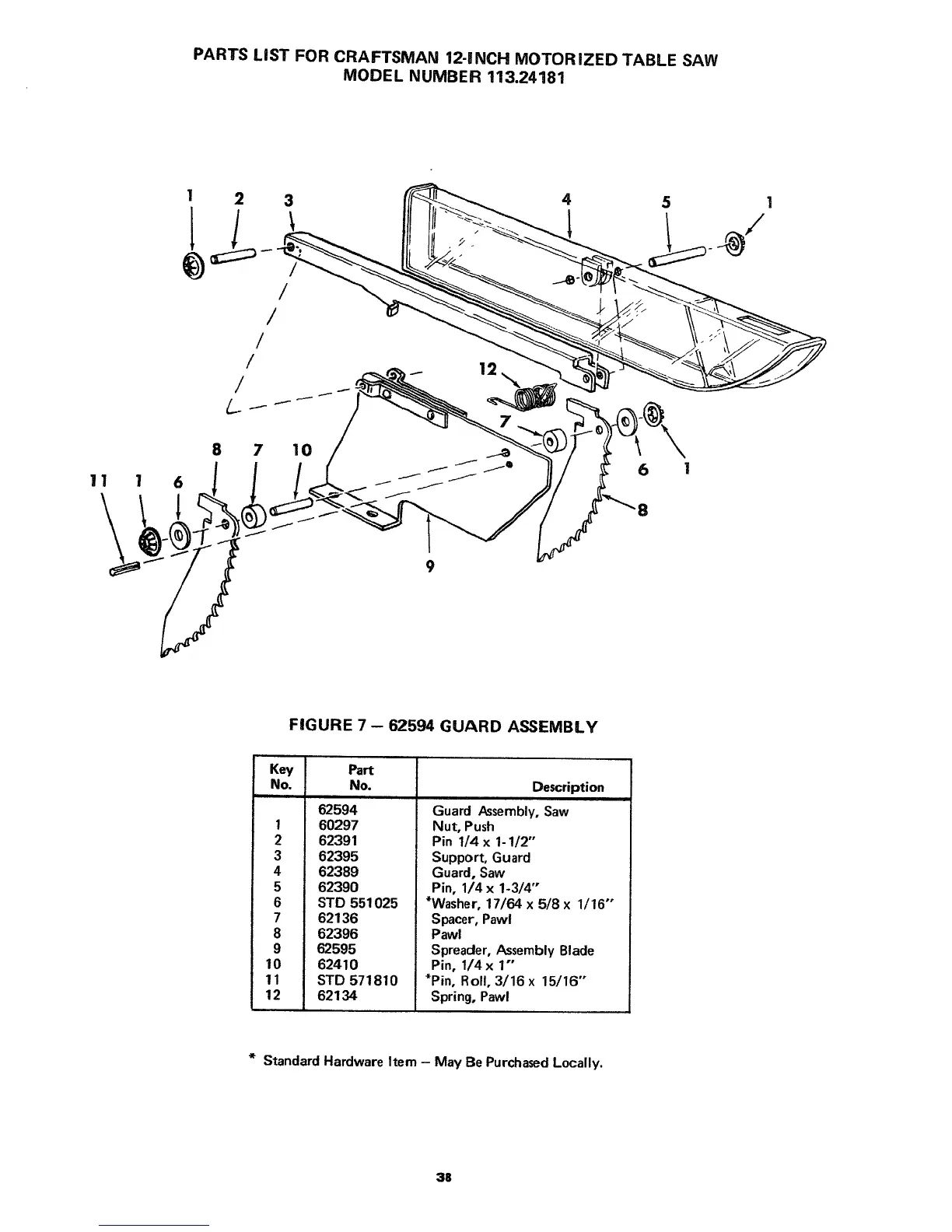

FIGURE 7 -- 62594 GUARD ASSEMBLY
Key
No. Description
1
2
5
10
11
12
Part
No.
62594
60297
62391
62395
62389
62390
STD 551025
62136
62396
62595
62410
STD 571810
62134
Guard Assembly, Saw
Nut, Push
Pin 1/4 x 1-1/2'"
Support, Guard
Guard, Saw
Pin, 1/4 x 1-3/4"
*Washer, 17/64 x 5/8 x 1/16"
Spacer, Pawl
Pawl
Spreader, Assembly Blade
Pin, 1/4 x 1""
*Pin, Roll, 3/16 x 15/16"
Spring, Pawl
* Standard Hardware Item - May Be Purchased Locally.
