PARTS LIST FOR (;RAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
3 4
TO SWITCH
® ANY ATTEMPT TO REPAIR THIS MOTOR MAY
CREATE A HAZARD UNLESS REPAIR IS DONE
BY QUALI FlED SERVICE TECHNICIAN.
REPAIR SERVICE IS AVAILABLE AT YOUR
NEAREST SEARS STORE.

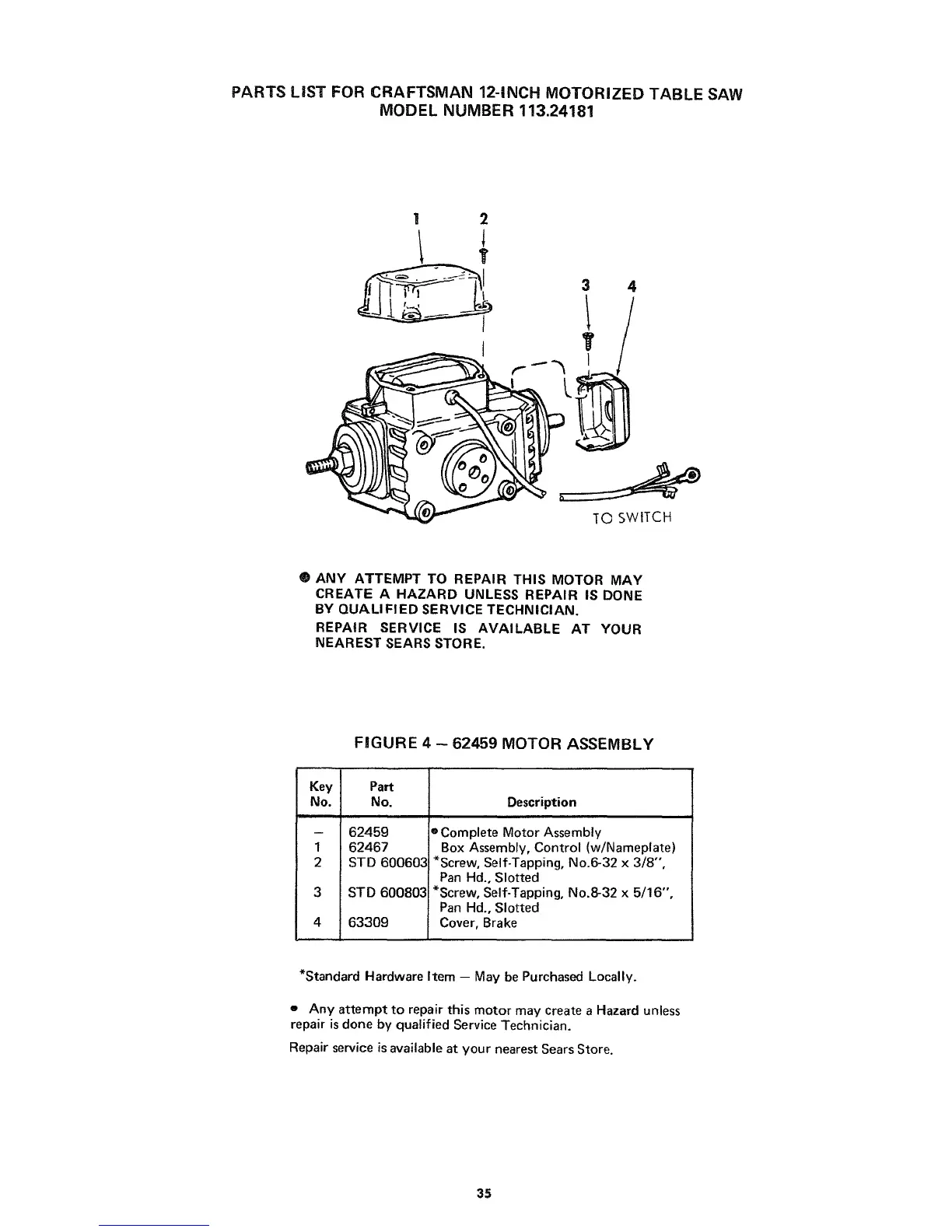

FIGURE 4 - 62459 MOTOR ASSEMBLY
Key Part
No. No. Description
.i i
1
2
62459
62467
STD 600603
STD 600803
63309
® Complete Motor Assembly
Box Assembly, Control (w/Nameplate)
*Screw, Self-Tapping, No.6-32 x 3/8",
Pan Hd., Slotted
*Screw, Self-Tapping, No.8-32 x 5/16",
Pan Hd., Slotted
Cover, Brake
*Standard Hardware Item -- May be Purchased Locally.
e Any attempt to repair this motor may create a Hazard unless
repair is done by qualified Service Technician.
Repair service is available at your nearest Sears Store.
35
To Next Page
