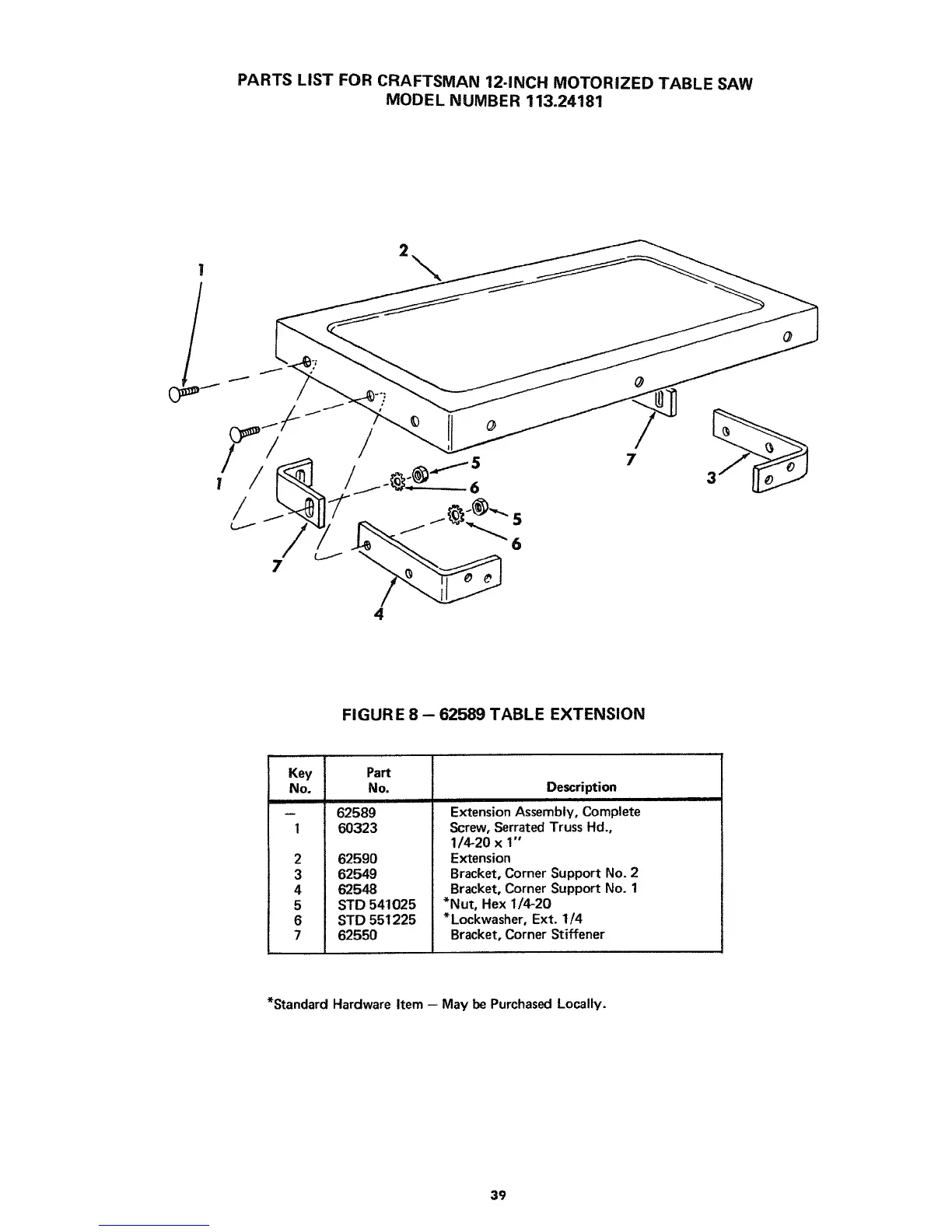

PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
!
4
7
FIGURE 8 -- 62589 TABLE EXTENSION
Key Part
No. No. Description
-- 62589
1 60323
2
3
4
5
6
7
62590
62549
62548
STD 541025
STD 551225
62550
Extension Assembly, Complete
Screw, Serrated Truss Hd.,
1/4-20 x 1"
Extension
Bracket, Corner Support No. 2
Bracket, Corner Support No. 1
*Nut, Hex 1/4-20
*Lockwasher, Ext. 1/4
Bracket, Corner Stiffener
*Standard Hardware Item - May be Purchased Locally.
39
