PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
8

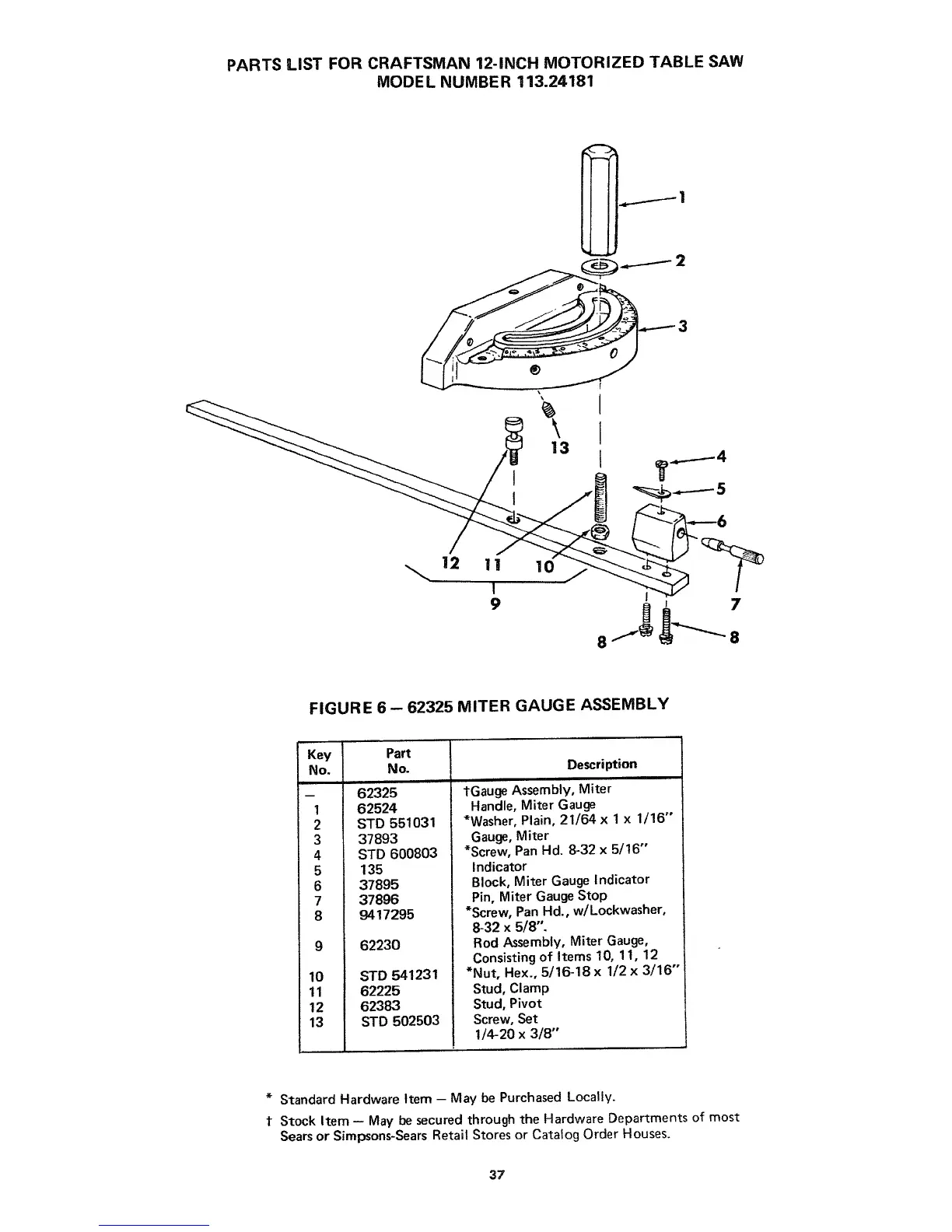

FIGURE 6- 62325 MITER GAUGE ASSEMBLY
Key Part
No. No.
- 62325
1 62524
2 STD 551031
3 37893
_ STD 600803
135
6 37895
7 37896
8 9417295
62230
10 STD 541231
11 62225
12 62383
13 STD 502503
Description
i
tGauge Assembly, Miter
Handle, Miter Gauge
*Washer, Plain, 21/64 x 1 x 1/16"
Gauge, Miter
*Screw, Pan Hd. 8-32 x 5/16"
Indicator
Block, Miter Gauge Indicator
Pin, Miter Gauge Stop
*Screw, Pan Hd., w/Lockwasher,
8-32 x 5/8".
Rod Assembly, Miter Gauge,
Consisting of Items 10, 11, 12
*Nut, Hex., 5/16-18 x 1/2 x 3/16"
Stud, Clamp
Stud, Pivot
Screw, Set
1/4-20 x 3/8"
* Standard Hardware Item - May be Purchased Locally.
t Stock Item -- May be secured through the Hardware Departments of most
Searsor Simpsons-SearsRetail Stores or Catalog Order Houses.
