PARTS LIST FOR CRAFTSMAN 12-INCH MOTORIZED TABLE SAW
MODEL NUMBER 113.24181
7
1
I

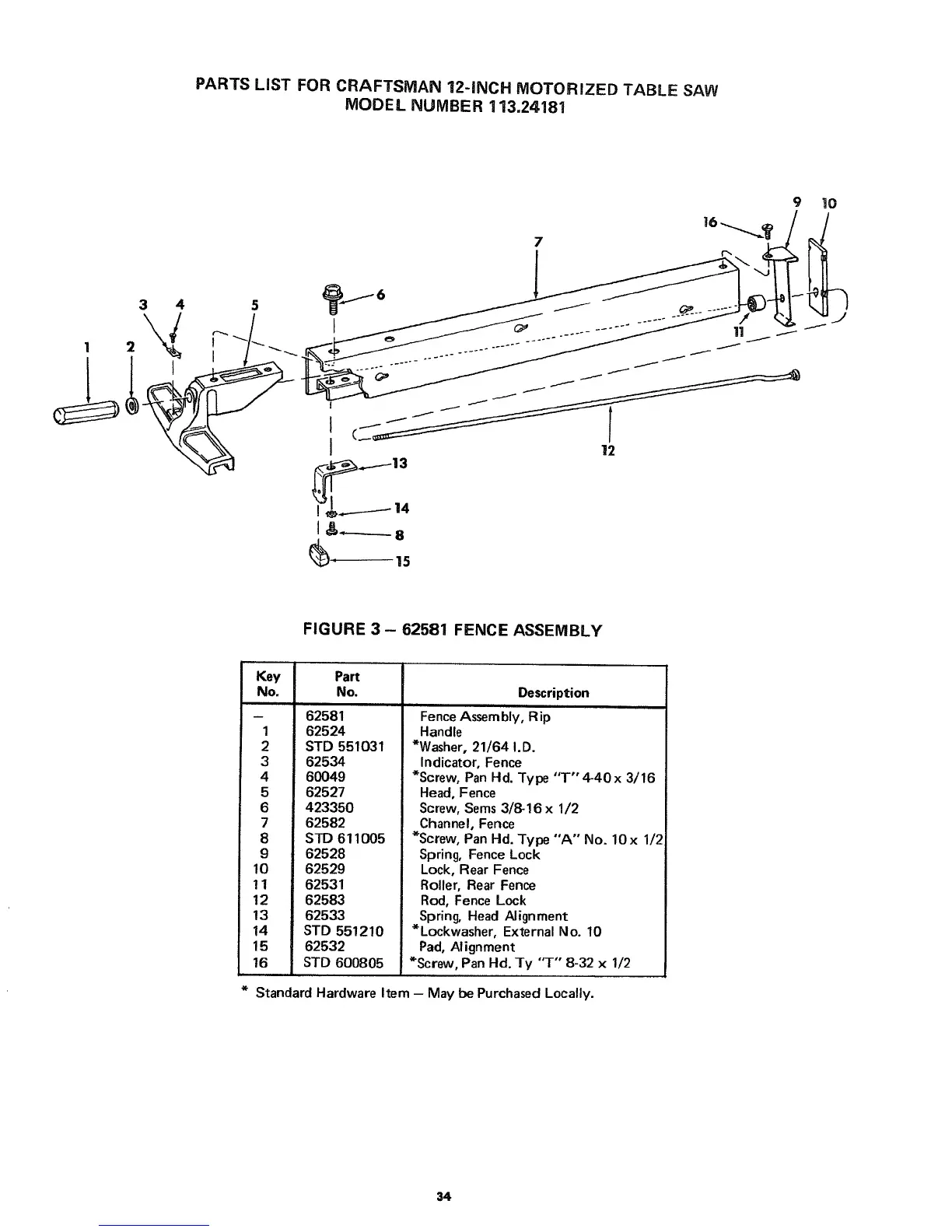

FIGURE 3 - 62581 FENCE ASSEMBLY
Key Part
No. No.
m
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
62581
62524
STD 551031
62534
60049
62527
423350
62582
STD611005
62528
62529
62531
62583
62533
STD 551210
62532
STD 600805
Description
Fence Assembly, Rip
Handle
*Washer, 21/64 I.D.
Indicator, Fence
*Screw, Pan Hd. Type "T" 4-40 x 3/16
Head, Fence
Screw, Sems 3/_16 x 1/2
Channel, Fence
*Screw, Pan Hd. Type "A" No. 10x 1/2
Spring, Fence Lock
Lock, Rear Fence
Roller, Rear Fence
Rod, Fence Lock
Spring, Head Alignment
*Lockwasher, External No. 10
Pad, Alignment
*Screw, Pan Hd. Ty '_" 8-32 x 1/2
Standard Hardware Item - May be Purchased Locally.
