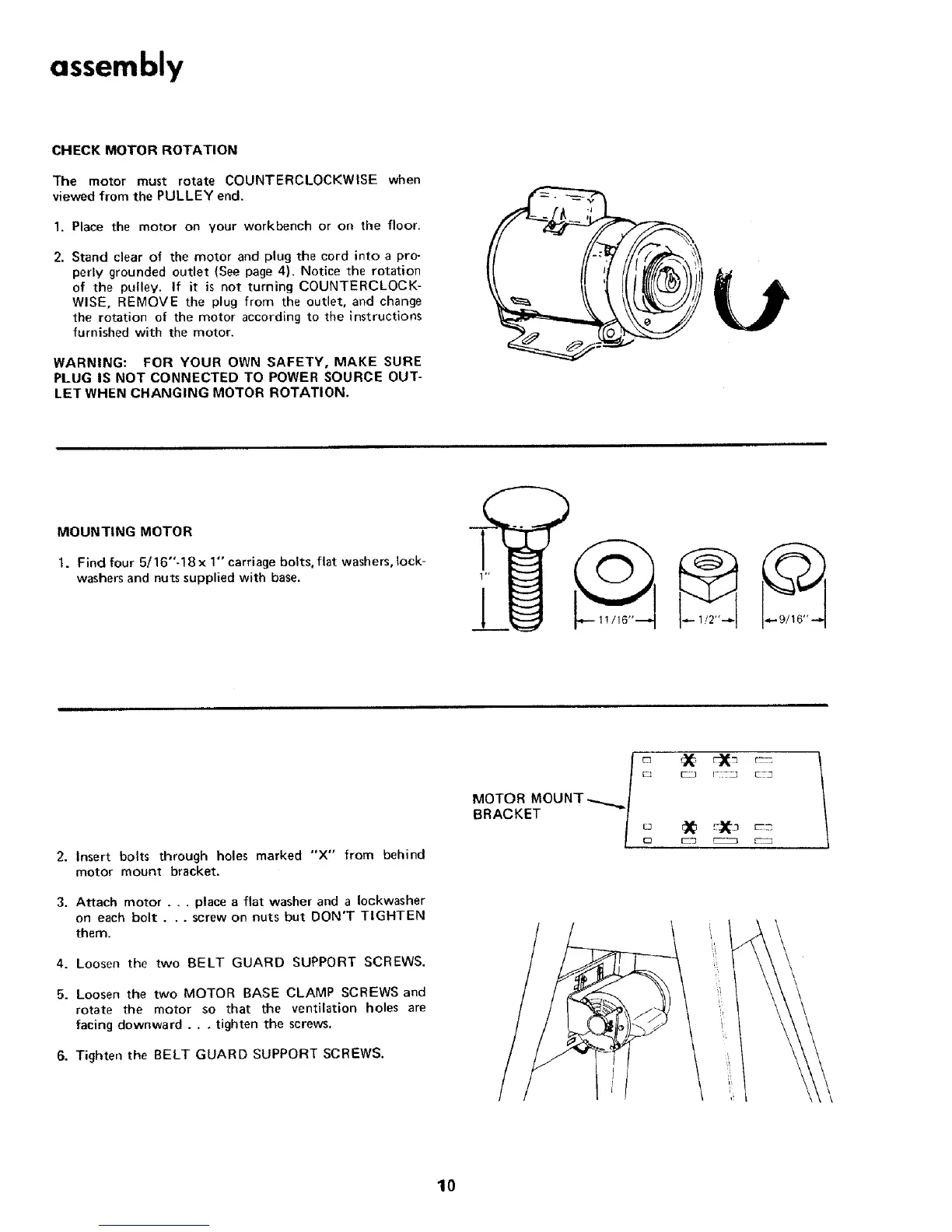

assembly
CHECK MOTOR ROTATION
The motor must rotate COUNTERCLOCKWISE when
viewed from the PULLEY end.
1. Place the motor on your workbench or on the floor.
2. Stand clear of the motor and plug the cord into a pro-
perly grounded outlet (See page 4). Notice the rotation
of the pulley. If it is not turning COUNTERCLOCK-
WISE, REMOVE the plug from the outlet, and change
the rotation of the motor according to the instructions
furnished with the motor.
WARNING: FOR YOUR OWN SAFETY, MAKE SURE
PLUG IS NOT CONNECTED TO POWER SOURCE OUT-
LET WHEN CHANGING MOTOR ROTATION.
MOUNTING MOTOR
1. Find four 5/16"-18 x 1"' carriage bolts, flat washers, lock-
washers and nuts supplied with base.
2. Insert bolts through holes marked "X'" from behind
motor mount bracket.
3. Attach motor . . . place a flat washer and a Iockwasher
on each bolt . . . screw on nuts but DON'T TIGHTEN
them.
4. Loosen the two BELT GUARD SUPPORT SCREWS.
5. Loosen the two MOTOR BASE CLAMP SCREWS and
rotate the motor so that the ventilation holes are
facing downward . . . tighten the screws.
6. Tighten the BELT GUARD SUPPORT SCREWS.
MOTOR MOUNT _.._._/ _
LJ
BRACKET -[
O
\
\
\
10
