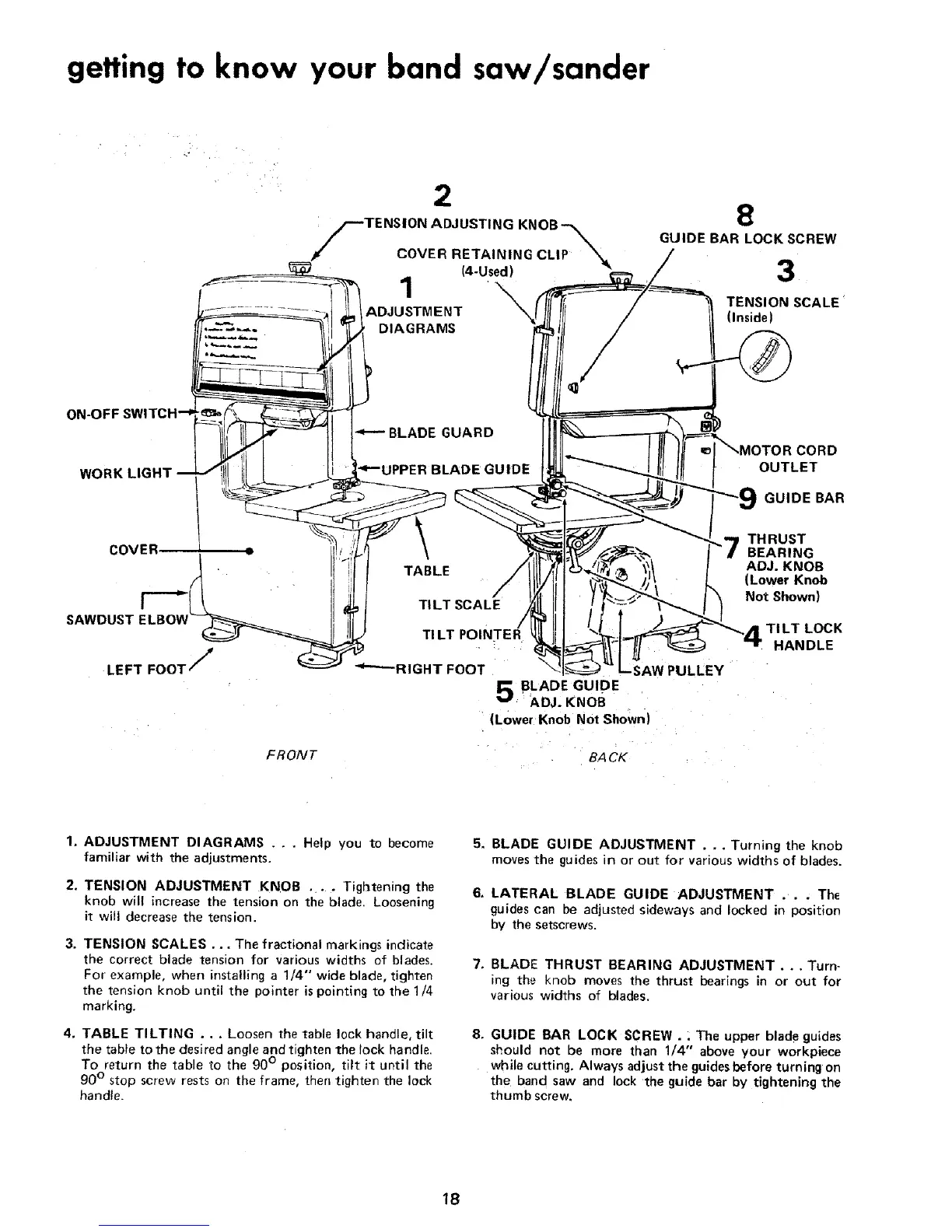

getting to know your band saw/sander
2
TENSION ADJUSTING KNOB-_
COVER RETAINING CLIP "X.
(4-Used)
1 \
ADJUSTMENT
DIAGRAMS
8
GUIDE BAR LOCK SCREW
3
TENSION SCALE'
(Inside)
ON-OFF
WORK LIGHT
GUARD
OUTLET
GUIDE BAR
COVER
SAWDUST ELBOW
LEFT FOOT /
FRONT
TABLE
TILT SCALE
TILT PC
"_"'--R IGHT FOOT
BLADE GUIDE
' ADJ. KNOB
(Lower Knob NOt Shown)
BA CK
"7THRUST
BEARING
ADJ. KNOB
(Lower Knob
Not Shown)
TI LT LOCK
HANDLE
PULLEY
1. ADJUSTMENT DIAGRAMS . . . Help you to become
familiar with the adjustments.
2. TENSION ADJUSTMENT KNOB ..... Tightening the
knob will increase the tension on the blade. Loosening
it will decrease the tension.
3. TENSION SCALES... The fractional markings indicate
the correct blade tension for various widths of blades.
For example, when installing a 1/4" wide blade, tighten
the tension knob until the pointer is pointing to the 1/4
marking.
4. TABLE TILTING ... Loosen the table lock handle, tilt
the table to the desired angle and tighten the lock handle
o
To return the table to the 90 position, tilt it until the
90 ° stop screw rests on the frame, then tighten the lock
handle.
5.
6,
7.
BLADE GUIDE ADJUSTMENT . , . Turning the knob
moves the guides in or out for various widths of blades.
LATERAL BLADE GUIDE ADJUSTMENT . . . Th_
guides can be adjusted sideways and locked in position
by the setscrews.
BLADE THRUST BEARING ADJUSTMENT... Turn-
ing the knob moves the thrust bearings in or out for
various widths of blades.
8. GUIDE BAR LOCK SCREW . ; The upper blade guides
should not be more than 1/4" above your workpiece
while cutting. Always adjust the guidesbefore turning on
the band saw and lock the guide bar by tightening the
thumb screw.
