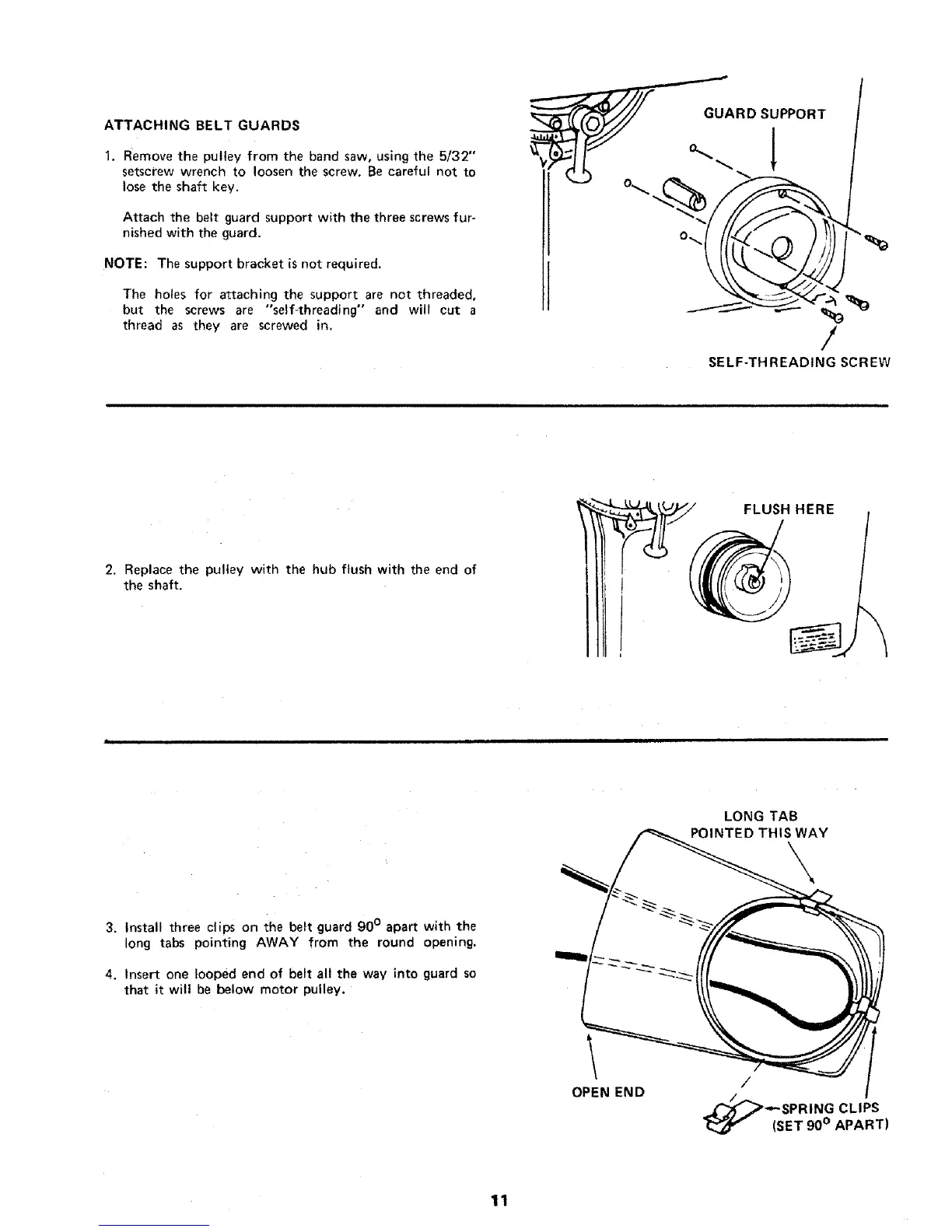

ATTACHING BELT GUARDS
1. Remove the pulley from the band saw, using the 5/32"
setscrew wrench to loosen the screw. Be careful not to
lose the shaft key.
Attach the belt guard support with the three screws fur-
nished with the guard.
NOTE: The support bracket is not required.
The holes for attaching the support are not threaded,
but the screws are "self-threading" and will cut a
thread as they are screwed in.
__--__GUARD SUPPORT
/
SELF-THREADING SCREW
2. Replace the pulley with the hub flush with the end of
the shaft.
FLUSH HERE
LONG TAB
POINTED THIS WAY
3. Install three clips on the belt guard 90 ° apart with the
long tabs pointing AWAY from the round opening,
4. Insert one looped end of belt all the way into guard so
that it will be below motor pulley.
OPEN END
/
SPRING CLIPS
(SET 90 ° APART)
