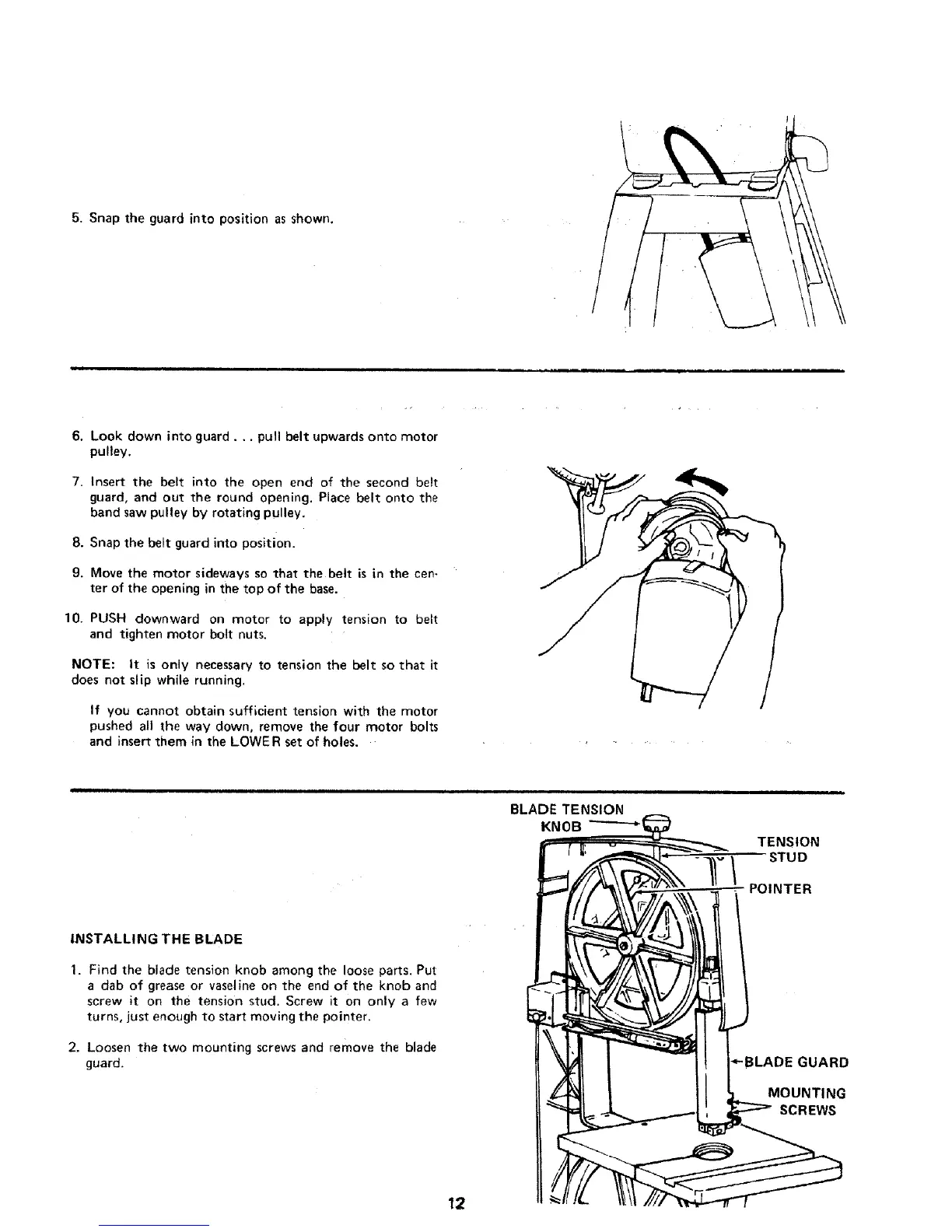

5. Snap the guard into position as shown.
6. Look down into guard.., pull belt upwards onto motor
pulley.
7. Insert the belt into the open end of the second belt
guard, and out the round opening. Place belt onto the
band saw pulley by rotating pulley.
8. Snap the belt guard into position.
9. Move the motor sideways so that the belt is in the cen-
ter of the opening in the top of the base.
10. PUSH downward on motor to apply tension to belt
and tighten motor bott nuts.
NOTE: It is only necessary to tension the belt so that it
does not slip while running.
If you cannot obtain sufficient tension with the motor
pushed all the way down, remove the four motor bolts
and insert them in the LOWER set of holes.
TENSION
..........STUD
POINTER
INSTALLING THE BLADE
1. Find the blade tension knob among the loose parts. Put
a dab of grease or vaseline on the end of the knob and
screw it on the tension stud. Screw it on only a few
turns, just enough to start moving the pointer.
2. Loosen the two mounting screws and remove the blade
guard.
GUARD
MOUNTING
SCREWS
12
To Next Page
