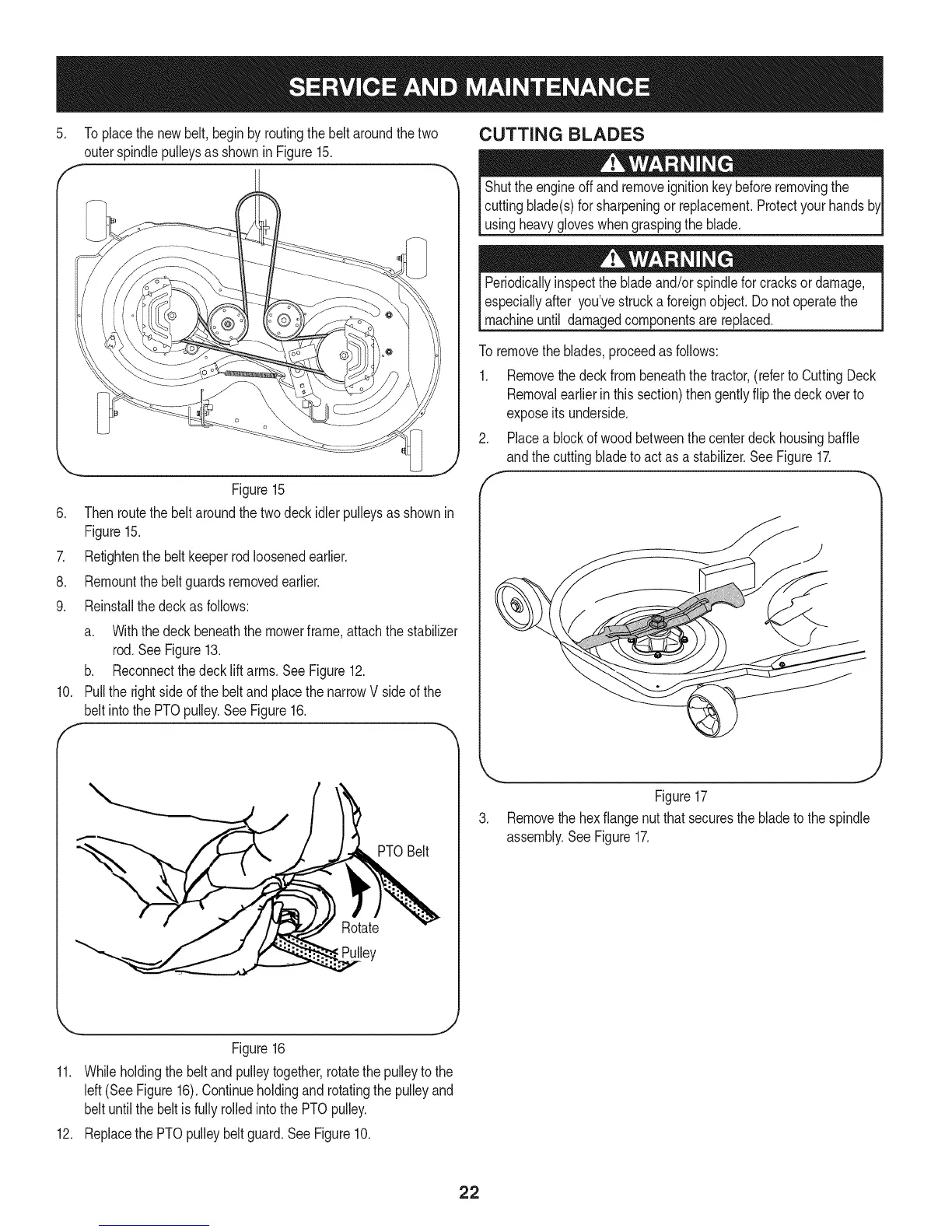

Toplacethenewbelt,beginby routingthebeltaroundthetwo
outerspindlepulleysas shownin Figure15.
CUTTING BLADES
Shuttheengineoff andremoveignitionkeybeforeremovingthe
cuttingblade(s)forsharpeningor replacement.Protectyourhands
usingheavygloveswhengraspingthe blade.
Figure15
6. Thenroutethebeltaroundthe twodeckidlerpulleysas shownin
Figure15.
7. Retightenthebeltkeeperrodloosenedearlier.
8. Remountthebeltguardsremovedearlier.
9. Reinstallthedeckas follows:
a. Withthedeck beneaththemowerframe,attachthe stabilizer
rod.SeeFigure13.
b. Reconnectthedeck liftarms.SeeFigure12.
10. Pulltherightside ofthe beltandplacethe narrowV sideofthe
beltintothePTOpulley.SeeFigure16.
!ey
PTOBelt
Periodicallyinspectthebladeand/orspindleforcracksordamage,
especiallyafter you'vestrucka foreignobject.Donotoperatethe
machineuntil damagedcomponentsarereplaced.
Toremovetheblades,proceedas follows:
1. Removethedeckfrombeneaththetractor,(referto CuttingDeck
Removalearlierin thissection)then gentlyflip thedeckoverto
exposeits underside.
2. Placea blockofwoodbetweenthe centerdeckhousingbaffle
andthe cuttingbladeto actas a stabilizer.See Figure17.
Figure17
3. Removethehexflangenut thatsecuresthe bladetothe spindle
assembly.SeeFigure17.
J
Figure16
11. Whileholdingthe beltandpulleytogether,rotatethepulleyto the
left(See Figure16).Continueholdingandrotatingthe pulleyand
beltuntilthebeltis fullyrolledintothe PTOpulley.
12. Replacethe PTOpulleybeltguard.SeeFigure10.
