Craftsman T1200 247.203720 User Manual

F
\

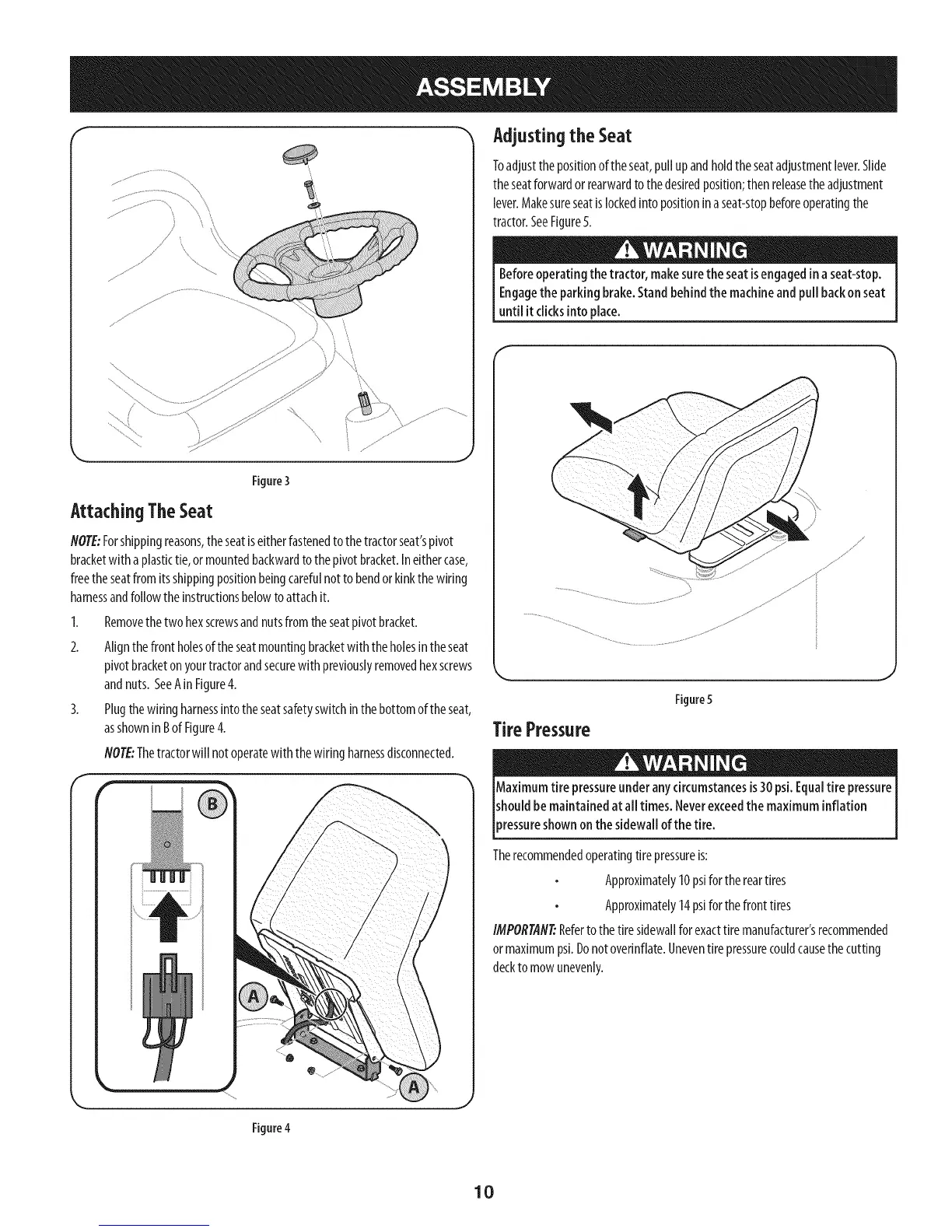

Figure3
AttachingTheSeat
NOTE:Forshippingreasons,theseatiseitherfastenedtothetractorseat'spivot
bracketwith a plastictie,ormountedbackwardtothepivotbracket.Ineithercase,
freetheseatfromitsshippingpositionbeingcarefulnotto bendorkinkthewiring
harnessandfollowtheinstructionsbelowtoattachit.
1. Removethetwo hexscrewsandnutsfromtheseatpivotbracket.
2. Alignthefront holesoftheseatmountingbracketwith theholesintheseat
pivotbracketonyourtractorandsecurewith previouslyremovedhexscrews
andnuts. SeeAinFigure4.
3. Plugthewiringharnessintotheseatsafetyswitchinthebottomoftheseat,
asshownin Bof Figure4.
flO?E:Thetractorwill notoperatewiththewiringharnessdisconnected.
Adjustingthe Seat
Toadjustthepositionof theseat,pull upandholdtheseatadjustmentlever.Slide
theseatforwardorrearwardto thedesiredposition;thenreleasetheadjustment
lever.Makesureseatislockedintopositioninaseat-stopbeforeoperatingthe
tractor.SeeFigure5.
Beforeoperatingthe tractor, makesurethe seatisengagedina seat-stop.
Engagethe parkingbrake.Standbehindthe machineand pull backon seat
until itclicksintoplace.
Figure5
TirePressure
Maximumtire pressureunder anycircumstancesis30psi.Equaltire pressure
shouldbe maintainedat all times. Neverexceedthe maximum inflation
)ressureshownonthe sidewallofthe tire.
Therecommendedoperatingtirepressureis:
Approximately10psiforthereartires
Approximately14psiforthefronttires
IMPORTANT:Referto thetiresidewallforexacttire manufacturer'srecommended
ormaximumpsi.Donotoverinflate.Uneventirepressurecouldcausethecutting
decktomowunevenly.
Figure4
10

Craftsman T1200 247.203720 Specifications

General

Engine Brand	Briggs & Stratton
Drive System	Rear-wheel drive
Cutting Width	42 inches
Number of Blades	2
Blade Engagement	Manual
Warranty	2-year limited
Engine Type	Single-cylinder, 4-stroke
Cutting Height	1.5 - 4 inches
Turning Radius	18 in.
Rear Tire Size	20 x 8 in.
Front Tire Size	15 x 6.00-6
