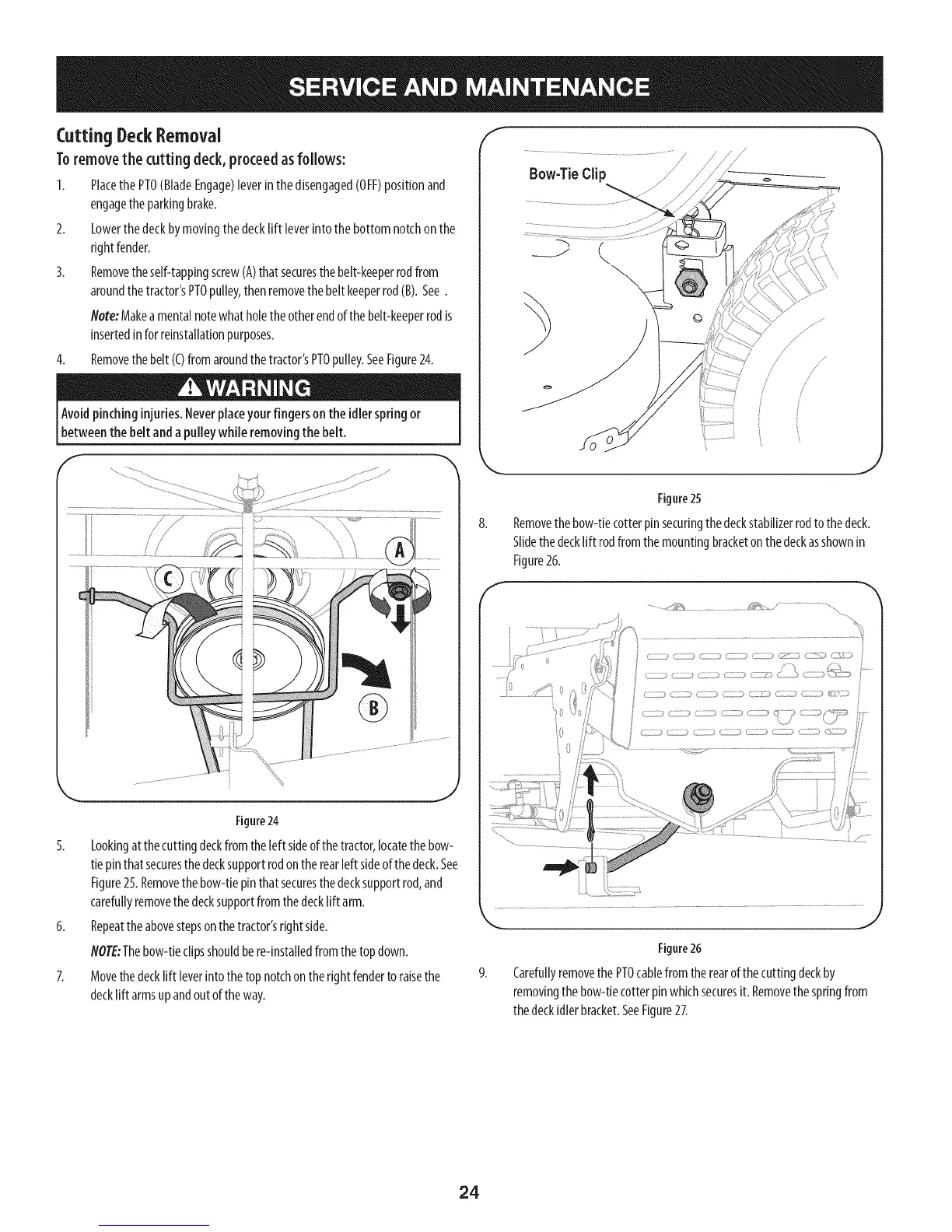

CuttingDeckRemoval

Toremove the cutting deck, proceed as follows:

1. Placethe PTO(BladeEngage)leverinthedisengaged(OFF)positionand

engagethe parkingbrake.

2. Lowerthedeckbymovingthedecklift leverintothe bottomnotchonthe

rightfender.

3. Removetheself-tappingscrew(A)thatsecuresthebelt-keeperrodfrom

aroundthetractor'sPTOpulley,thenremovethebeltkeeperrod(B).See.

Note:Makeamentalnotewhatholetheotherendofthebelt-keeperrodis

insertedinfor reinstallationpurposes.

4. Removethebelt(C)fromaroundthetractor'sPTOpulley.SeeFigure24.

Avoidpinchinginjuries.Neverplaceyour fingersonthe idlerspringor

betweenthe belt anda pulleywhile removingthe belt.

Figure24

5. Lookingat thecuttingdeckfromtheleft sideofthetractor,locatethebow-

tie pinthatsecuresthedecksupportrodontherearleftsideof thedeck.See

Figure25.Removethebow-tiepinthatsecuresthedecksupportrod,and

carefullyremovethedecksupportfromthedecklift arm.

6. Repeattheabovestepsonthetractor'srightside.

NOTE:Thebow-tieclipsshouldbere-installedfromthetopdown.

7. Movethedecklift leverintothetopnotchontherightfenderto raisethe

decklift armsupandoutoftheway.

///

Figure25

Removethebow-tiecotterpinsecuringthedeckstabilizerrodto thedeck.

Slidethedecklift rodfromthemountingbracketonthedeckasshownin

Figure26.

..................._:,@_.................................._,: _ / .......................................

....../

i ..................4_1 0

Figure26

9. Carefullyremovethe PTOcablefromtherearofthecuttingdeckby

removingthe bow-tiecotterpinwhichsecuresit. Removethespringfrom

thedeckidlerbracket.SeeFigure27.
