D-Link AC3150 User Manual

102D-Link DIR-885L User Manual
Section 4 - Conguration
IPv4/IPv6 Rules
Enter a name for the rule.
Enter the source IP address range that the rule will apply to, and using
the drop-down menu, specify whether it is a WAN or LAN IP address.
Enter the destination IP address range that the rule will apply to, and
using the drop-down menu, specify whether it is a WAN or LAN IP
address.
Select the protocol of the trac to allow or deny (Any, TCP, or UDP)
and then enter the range of ports that the rule will apply to.
Use the drop-down menu to select the time schedule that the rule
will be enabled on. The schedule may be set to Always Enable, or
you can create your own schedules in the Schedules section (refer
to page 111).
Click OK when you are done.

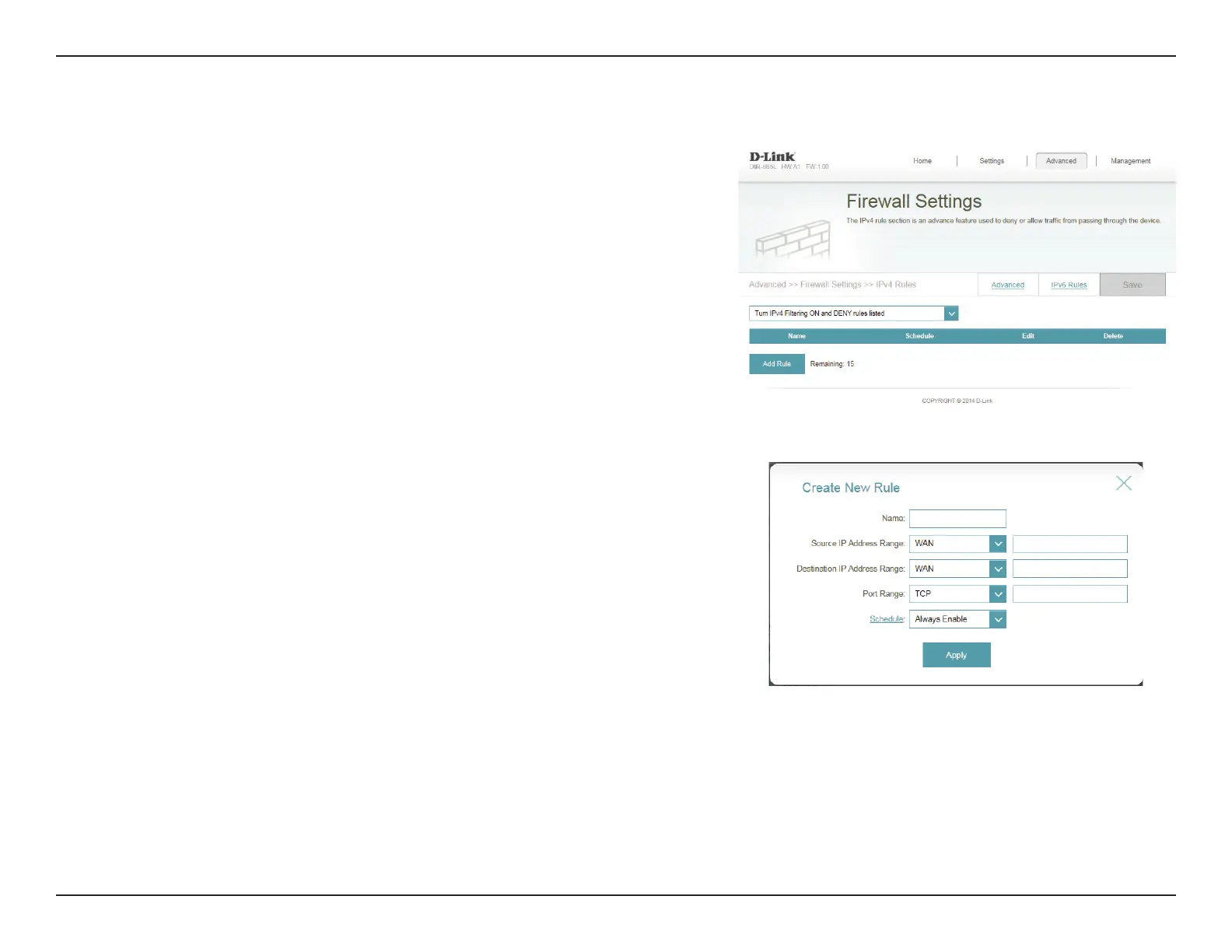

The IPv4/IPv6 Rules section is an advanced option that lets you congure what kind
of trac is allowed to pass through the network. To congure the IPv4 rules, from
the Firewall Settings page click IPv4 Rules. To congure IPv6 rules, from the Firewall
Settings page click IPv6 Rules. To return to the main Firewall Settings page, click
Security Check.
To begin, use the drop-down menu to select whether you want to ALLOW or DENY
the rules you create. You can also choose to turn ltering OFF.
If you wish to remove a rule, click on its trash can icon in the Delete column. If you
wish to edit a rule, click on its pencil icon in the Edit column. If you wish to create a
new rule, click the Add Rules button
. Click Save when you are done. If you edit or
create a rule, the following options will appear:
Name:
Source IP
Address Range:
Destination IP
Address Range:
Port Range:
Schedule:
