D-Link AC750 User Manual

78D-Link DIR-818LW User Manual
Section 3 - Conguration
Enter a Name for the inbound lter rule.
Click Allow or Deny access.
Check the box to Enable the rule.
Enter the starting IP address.
Enter the ending IP address.
Click the Add button to apply your settings.
This section will list any rules that are created.
You may click the Edit icon to change the
settings or enable/disable the rule, or click the
Trash icon to delete the rule.
Name:
Action:
Remote IP
Range: Enable:
Remote IP Start:
Remote IP End:
Add:
Inbound Filter
Rules List:

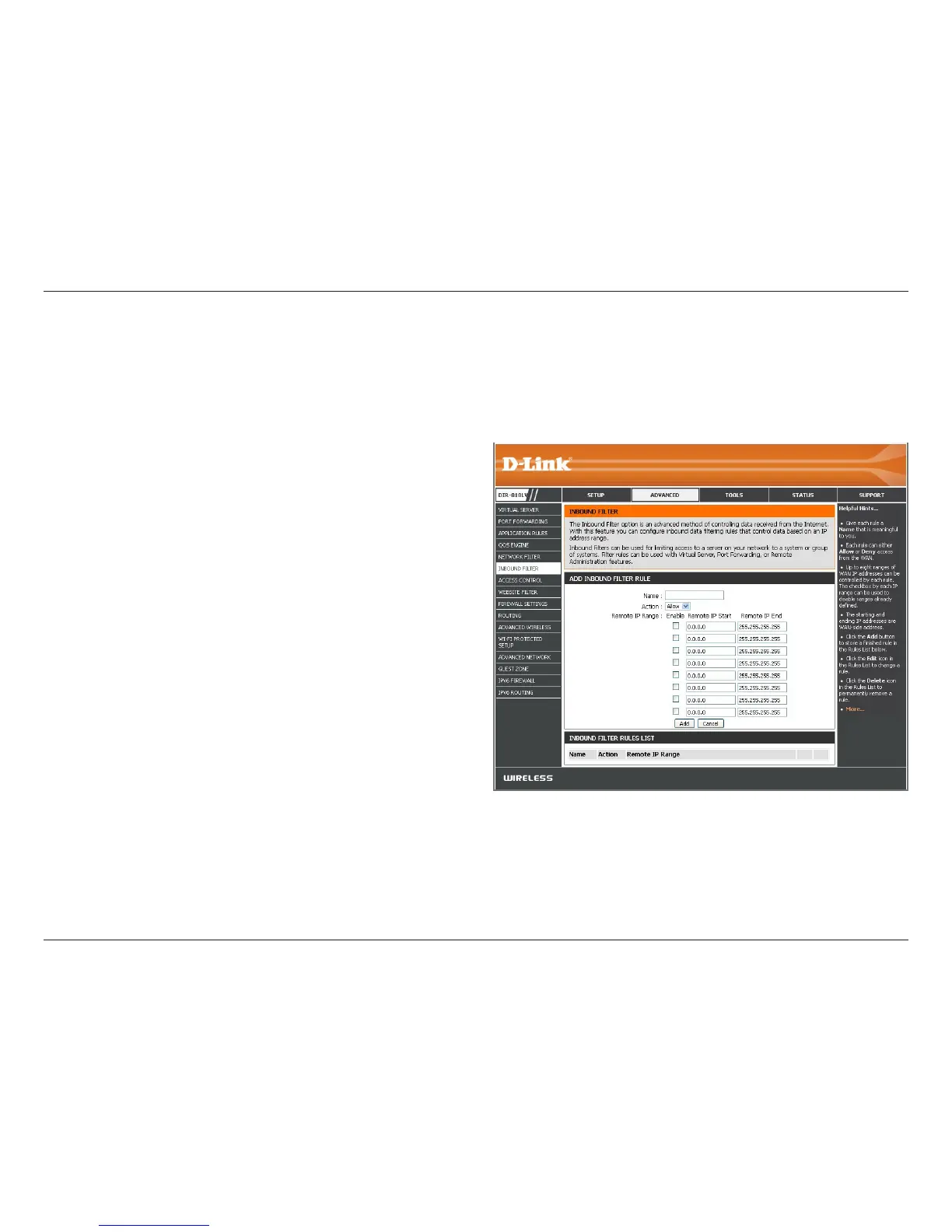

The Inbound Filter option is an advanced method of controlling data received from the Internet. With this feature you can
congure inbound data ltering rules that control data based on an IP address range. Inbound Filters can be used with Virtual
Server, Port Forwarding, or Remote Administration features.
Inbound Filters

D-Link AC750 Specifications

Network Interfaces

LAN interface	Four 10/100Mbps LAN ports
WAN interface	One 10/100Mbps Internet port
Wireless interface (2.4Ghz)	IEEE 802.11b/g/n
Wireless interface (5Ghz)	IEEE 802.11a/n/ac

Operating Environment

Operating temperature	0 to 40 °C (32 to 104 °F)
Storage temperature	-20 to 65 °C (-4 to 149 °F)
Operating humidity	10% - 90% non-condensing

Wireless Specifications

Wireless frequency range (2.4Ghz)	2.412GHz ~ 2.483.5GHz
Wireless frequency range (5Ghz)	5.15GHz ~ 5.825GHz
Wireless bandwidth rate IEEE 802.11n	6.5 to 300 Mbps

Dimensions and Weight

Dimensions	156.5 x 113.2 x 53.6 mm (6.16 x 4.46 x 2.11 inches)
Weight	184.7 grams (0.41 lbs)
Antenna type	Internal Antenna
