D-Link DAP-1350 User Manual

64D-Link DAP-1350 User Manual
Section 3 - Configuration

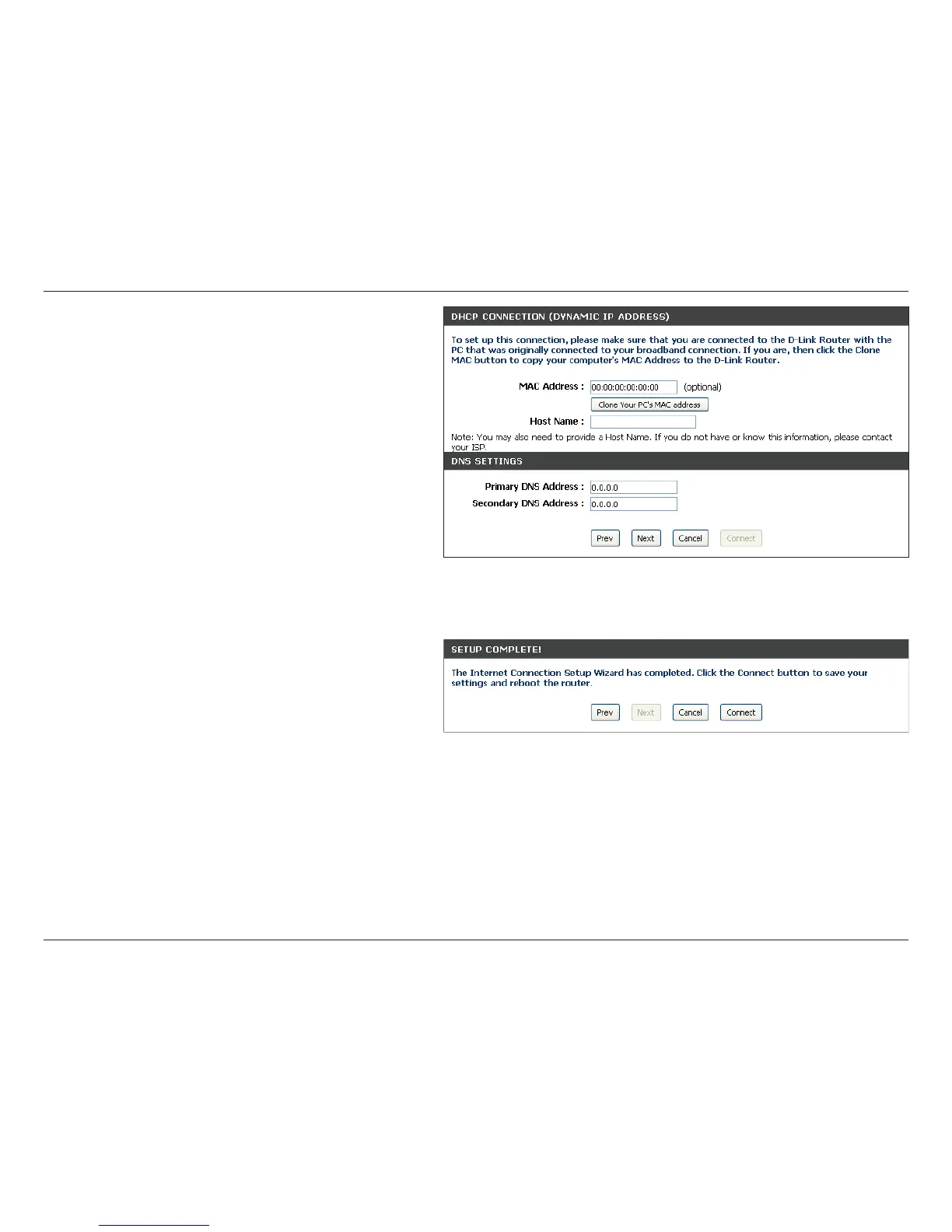

If you selected Dynamic, you may need to enter
the MAC address of the computer that was last
connected directly to your modem. If you are currently
using that computer, click Clone Your PC’s MAC
Address and then click Next to continue.
The Host Name is optional but may be required by
some ISPs. The default host name is the device name
of the Router and may be changed.
Click Connect to save your settings. Once the router
is finished rebooting, click Continue. Please allow
1-2 minutes to connect.
Close your browser window and reopen it to test your
Internet connection. It may take a few tries to initially
connect to the Internet.

D-Link DAP-1350 Specifications

General

Maximum data transfer rate	100 Mbit/s
Wireless technology	802.11n
DHCP client	Yes
WAN connection	Ethernet (RJ-45)
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA, WPA2
Package weight	570 g
Certification	-FCC Class B, Wi-Fi, IC
LED indicators	LAN
Antenna features	Integrated antenna

Weight and Dimensions

Weight	230 g
Dimensions (WxDxH)	91.4 x 20.3 x 66 mm
