Section 3 - Configuration

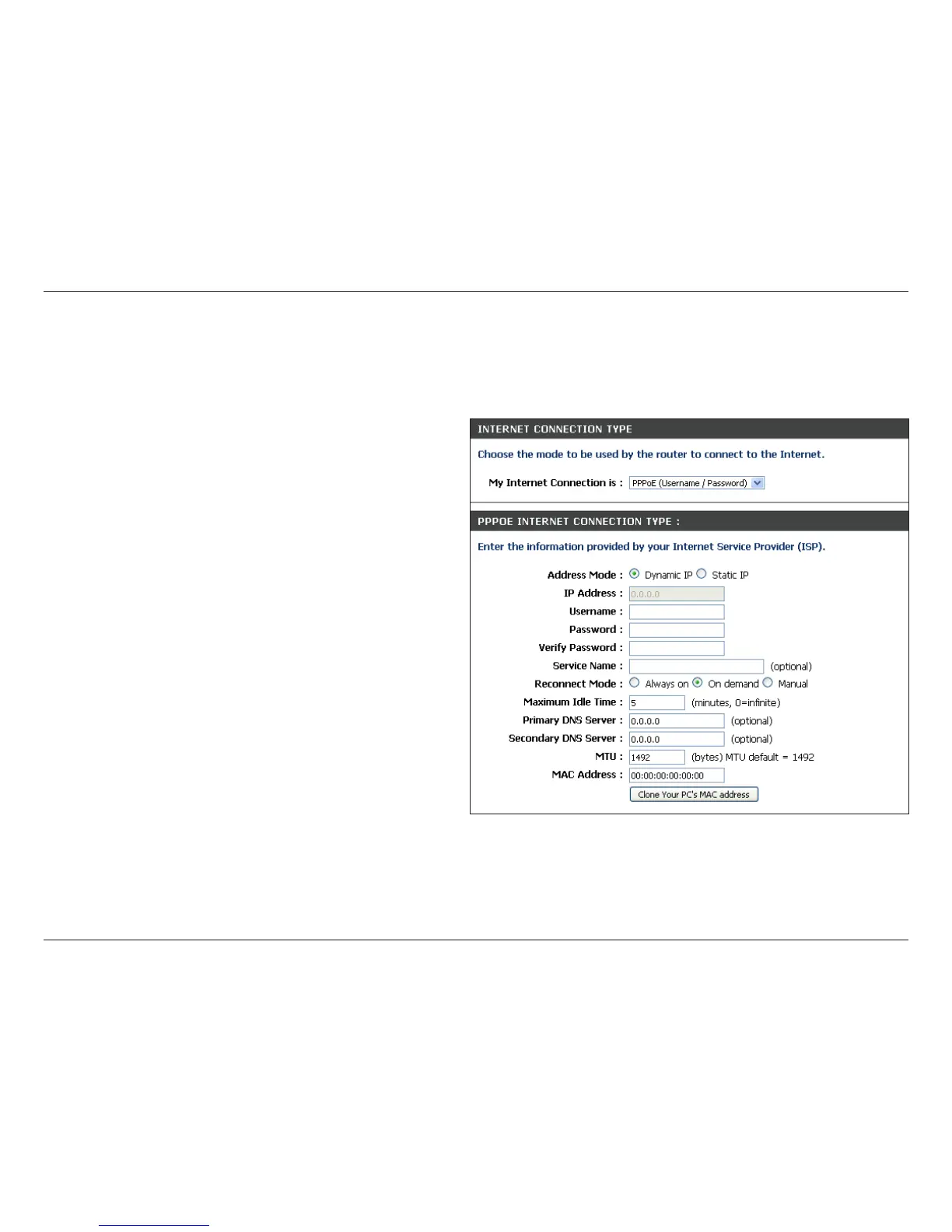

PPPoE
Select PPPoE (Point-to-Point Protocol over Ethernet) if your ISP uses a PPPoE connection. Your ISP will provide you with
a username and password. This option is typically used for DSL services. Make sure to remove your PPPoE software
from your computer. The software is no longer needed and will not work through the DAP-1350.
Username:
Password:
Service Name:
Reconnect Mode:
Maximum Idle Time:
DNS Servers:
MTU:
Clone MAC Address:
Enter your PPPoE user name.
Enter your PPPoE password and then retype
the password in the next box.
Enter the ISP Service Name (optional).
Select Always on, On Demand or Manual.
Enter the time (in minutes) where the router will
disconnect if idle for the time specified.
Enter the Primary and Secondary DNS (Domain
Name System) server IP address assigned by
your ISP.
You may need to change the MTU (Maximum
Transmission Unit) for optimal performance
with your specific ISP. The default MTU size is
1400.
The default MAC address is set to the MAC
address on the AP (Access Point). You can click
the Clone Your PC’s MAC Address button to
replace the AP’s MAC address with the MAC address of your Ethernet card. It is not recommended that you change the
default MAC address unless required by your ISP.
