D-Link DI-701 iShare User Manual

- 21 -

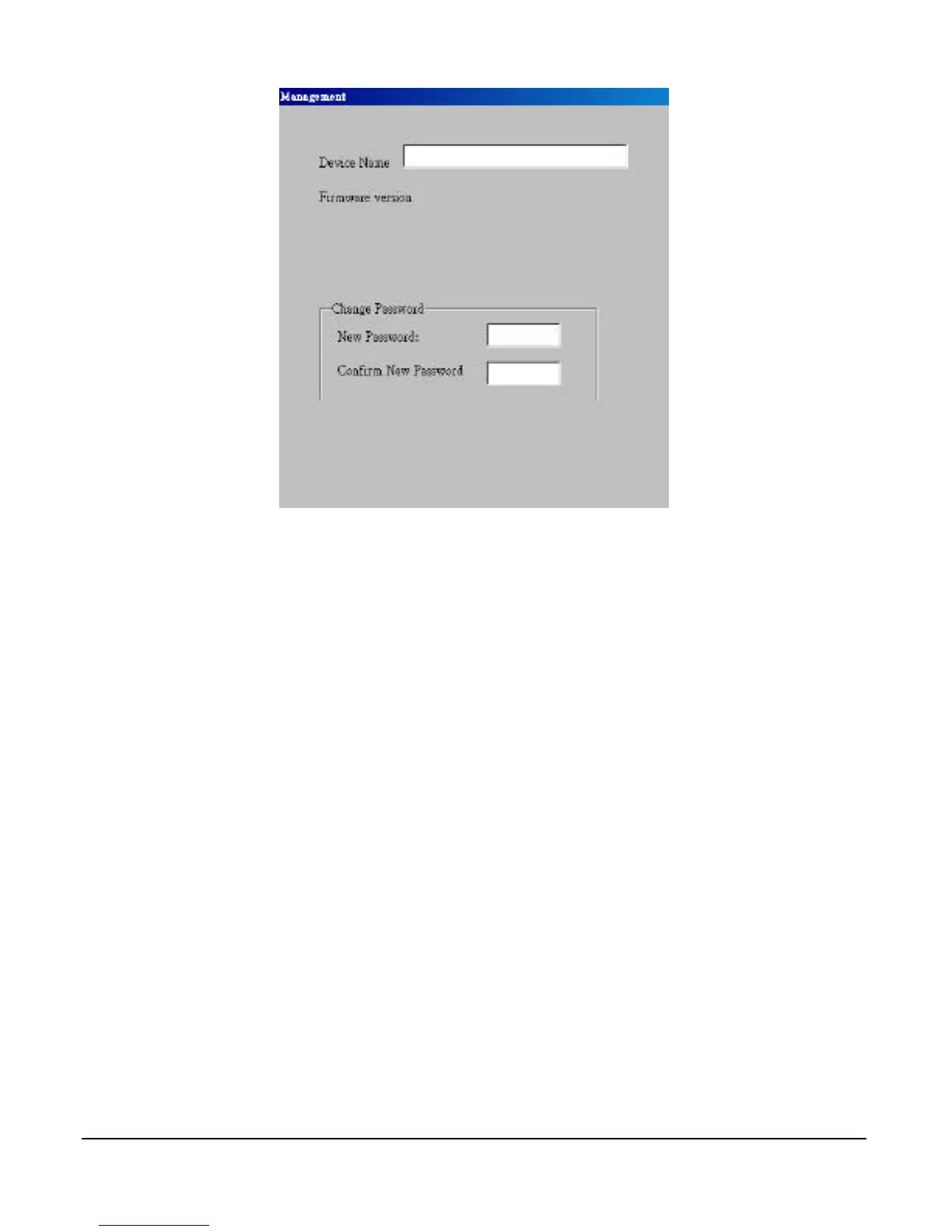

Figure 8: Management
Configuration in Terminal Program Mode
Use terminal emulation on your PC/workstation for the initial configuration of your DI-701.
Windows HyperTerminal or other terminal emulation applications can be used. The
following example was done with HyperTerminal.
Getting Started (TP)
1. Connect an RS-232 cable from one COM port on your PC to your DI-701’s Console
port.
2. Go to Start àProgramàAccessoriesàCommunicationsàHyperTerminal.
3. When the Hyper Terminal window appears, double-click Hypertrm.
4. Name the new connection appropriately.
5. In the Connect To dialog box, select the COM port that connects to your DI-701.
