D-Link DIR-655 User Manual

18D-Link DIR-655 User Manual
Section 3 - Conguration
Advanced Domain Name System (DNS) services enhances your Internet
performance by getting you the information and web pages you are looking
for faster and more reliably. In addition, it improves your overall Internet
experience by correcting many common typo mistakes automatically, taking
you where you intended to go and saving you valuable time.
Disclaimer: D-Link makes no warranty as to the availability, reliability,
functionality and operation of the Advanced DNS service or its features.
Check to enable true Gigabit routing. This will increase the throughput of
the WAN-LAN connectivity of the router.
Enter the IP address assigned by your ISP.
Enter the subnet mask assigned by your ISP.
Enter the gateway assigned by your ISP.
The DNS server information will be supplied by your ISP (Internet Service
Provider.)
Maximum Transmission Unit - you may need to change the MTU for optimal
performance with your specic ISP. 1500 is the default MTU.
The default MAC address is set to the Internet port’s physical interface MAC
address on the broadband router. It is not recommended that you change
the default MAC address unless required by your ISP. You can use the Clone
Your PC’s MAC Address button to replace the Internet port’s MAC address
with the MAC address of your Ethernet card.
Enable Advanced
DNS Service:
True Gigabit Routing
Connectivity Setting:
IP Address:
Subnet Mask:
Default Gateway:
DNS Servers:
MTU:
MAC Address:

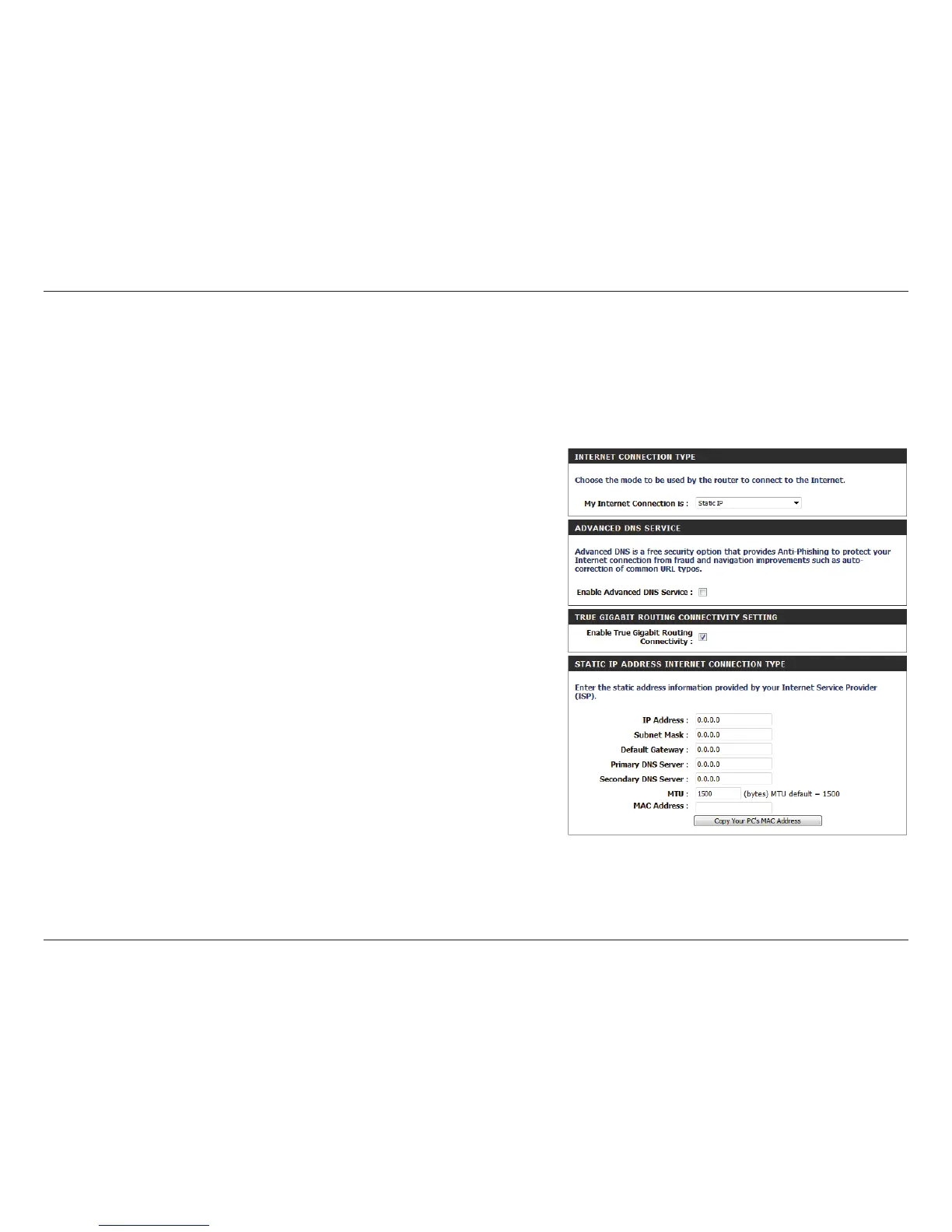

Manual Conguration
Static IP
Select Static IP if your IP information is provided to you by your ISP. You will need to enter in the IP address, subnet mask, gateway address, and DNS
address(es) provided to you by your ISP. Each IP address entered in the elds must be in the appropriate IP form, which are four octets separated
by a dot (x.x.x.x). The router will not accept the IP address if it is not in this format.

D-Link DIR-655 Specifications

Device Interface

number of gigabit lan ports	4
number of gigabit wan ports	1
usb port	1

Standards

ieee 802.11n	draft 2.0
ieee 802.11g	yes
ieee 802.3	yes
ieee 802.3u	yes

Weight and Dimensions

item dimensions (width x depth x height)	4.6” x 7.6” x 1.2”
packaging dimensions (width x depth x height)	8.1” x 10.9” x 2.6”
item weight	0.7 lbs
packaging weight	2.0 lbs
